Laboratory Mini Planetary Ball Mill Machine with 4 Jars & Lock Clamps

Laboratory Mini Planetary Ball Mill Machine with 4 Jars & Lock Clamps

  • Product Details

Laboratory Mini Planetary Ball Mill Machine with 4 Jars & Lock Clamps


SPECIFICATIONS

Transmission

Gear transmission

Work

two or four tanks simultaneously milling

Max sample loading capacity

2/3 of Tank volume

Tank volume

Each tank :0.05L~50L, total volume :0.2L~200L

Feed size

Soil material ≤10mm, other material ≤3mm

Discharge size

Mix 0.1um

Speed ratio (revolution: Rotation)

1:2

Speed (rotation)

0-900 r / min (ordinary), 0-1400 rev / min (high-speed type);

Velocity modulation way

Stepless speed regulation

Speed Accuracy 0.2 rev / min;

Programmable control

Ball mill using high-tech micro-computer chip control,

can set the program forward and backward alternately run

(0-999min) and forward,

pause, reverse, pause, forward (0-999min) alternate operation,

particularly suitable cooling or if you need to run it intermittently

Maximum continuous working time (full load)

72 hours (timer 0-9999h)

Motor Power

According to different device models and milling load weight,

the main power is 0.55KW and 0.75KW,

Various optional materials of milling tank

Agate, alumina corundum ceramics, zirconia ceramics,

silicon nitride ceramic,

silicon carbide ceramic, stainless steel, high wear-resistant steel, manganese steel,

nylon, PTFE, polyurethane, carbide, crystal glass,

and other special metal materials and so on;

Optional milling media

Agate, alumina, zirconia, silicon nitride, silicon carbide, stainless steel,

high wear-resistant steel, manganese steel, nylon, polyurethane, carbide, glass,

and other special metals, etc.

Optional milling environmental conditions

Vacuum ball milling, the inert gas milling, cold milling,

ball milling high temperature

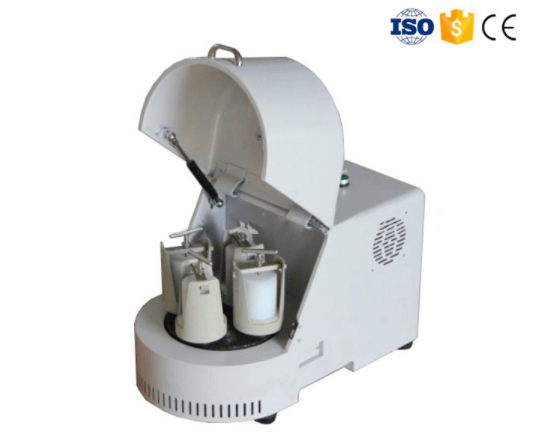

Planetary Ball Mill

Planetary Ball Mill


Coin Cell Process:

Materilas → Powder Processing →Powder Grinding Mill → Vacuum Mixing → Electrode Coating → Roll Press → Vacuum Drying → Disc Cutter → Electrolyte Injection → Crimping Machine → Battery Analyzer










PACKAGE:

1 Standard exported package: Internal anticollision protection, external export wooden box packaging.

2 Shipping by express, by air, by sea according to customers' requirements to find the most suitable way.

3 Responsible for the damage during the shipping process, will change the damaged part for you for free.

DELIVERY TIME:15-20 days after confirming the order, detail delivery date should be decided according to

production season and order quantity.
