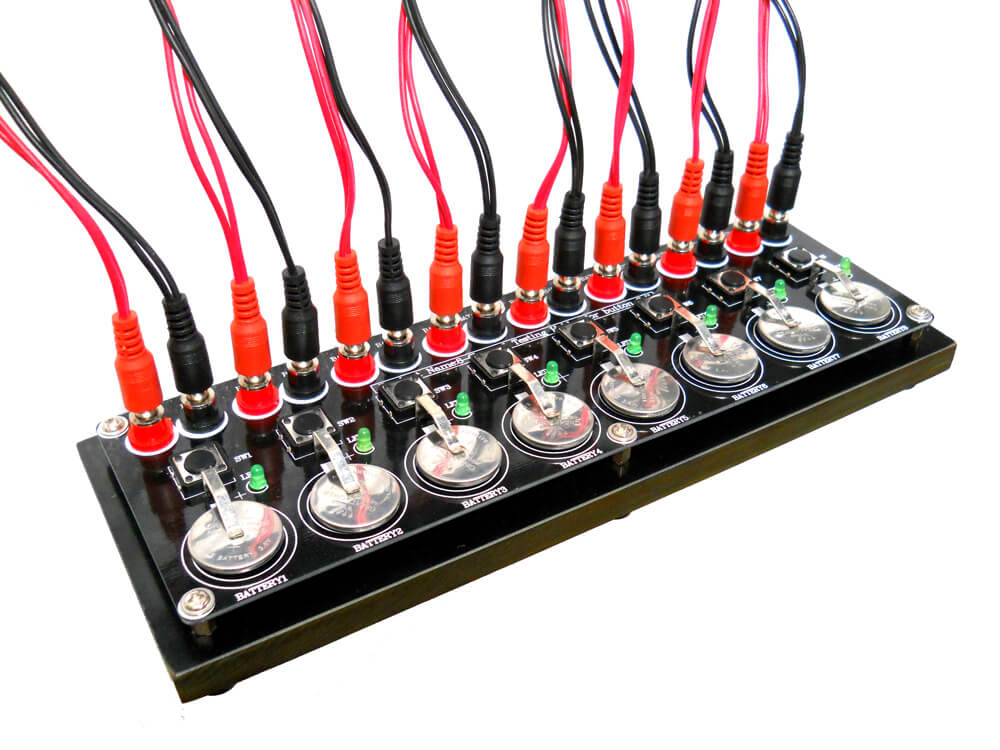

8 Channels Coin Cell Testing Board with Cable & Optional Connecton
1.8 cables with optional connectors are included in the standard package for immediate use.

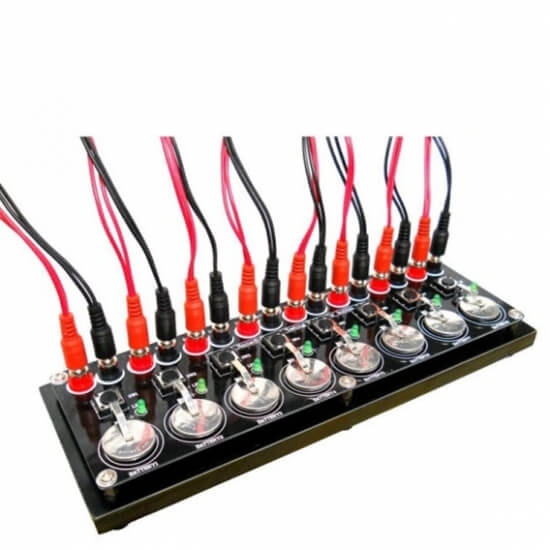

2.The connectors to the board are the banana plug for easy insertion and removal, the diameter of the eight round plugs of the Testing Board are around 4 mm. (AS Shown in pic-2), the Banana Plug of the cable are 4mm banana plug, Max wire diam.4.2mm.
3.Another end or of connector testing system are optional connectors (choose the right one for you from above "connector type" when order).
A.4-pin bayonet connectors compatible with battery tester.
B.4 alligator clamps (Two small for voltage and two big for current) compatible with other vendor's testing system.
4. If you are going to test half cell, suggest that you connect directly use battery tester.
5.Built-in battery polarity check light will be on when right place the coin cell and press down the check button.
6.Can test coin cell with diam. up to 25mm and compatible with most of the popular coin cell size, like CR2016, CR2032, CR2325, and CR2450.
specifications
|
Working Mode |
8 channels work independently |
|
Advantage |
Easy battery insertion and removal |
|
Holder Material |
Polypropylene |
|
Maximium Testing Diameter |
25mm |
|
Clamps |
4 alligator clamps (Two small for voltage and two big for current)compatible with other vendor's testing system |
|
Connectors |
4-pin bayonet connectors compatible with battery tester |
|
Dimension |
230 mm L x 80 mm W x 32 mm H |

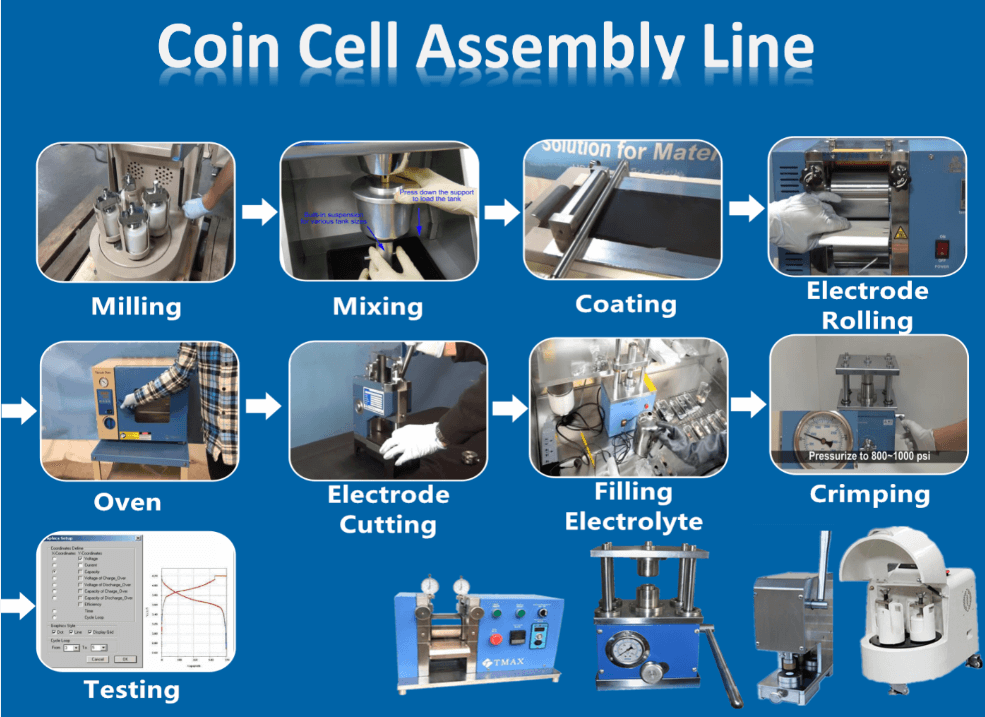

Coin Cell Process:
Materilas → Powder Processing →Powder Grinding Mill → Vacuum Mixing → Electrode Coating → Roll Press → Vacuum Drying → Disc Cutter → Electrolyte Injection → Crimping Machine → Battery Analyzer
For the coin cell Assembly, we also recommend you the following items:
1 Standard exported package: Internal anticollision protection, external export wooden box packaging.
2 Shipping by express, by air, by sea according to customers' requirements to find the most suitable way.
3 Responsible for the damage during the shipping process, will change the damaged part for you for free.
DELIVERY TIME:15-20 days after confirming the order, detail delivery date should be decided according to
production season and order quantity.
