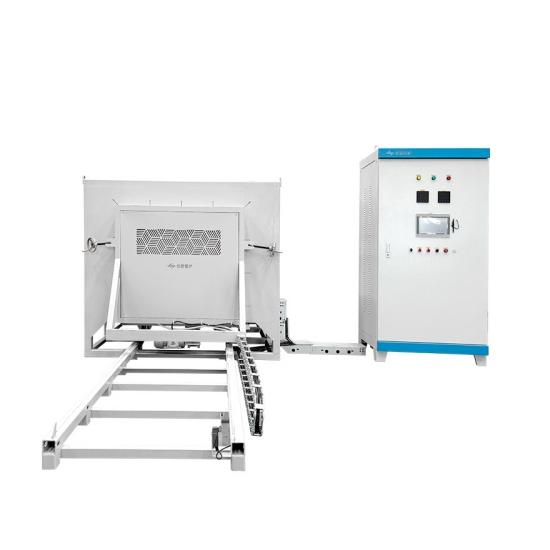

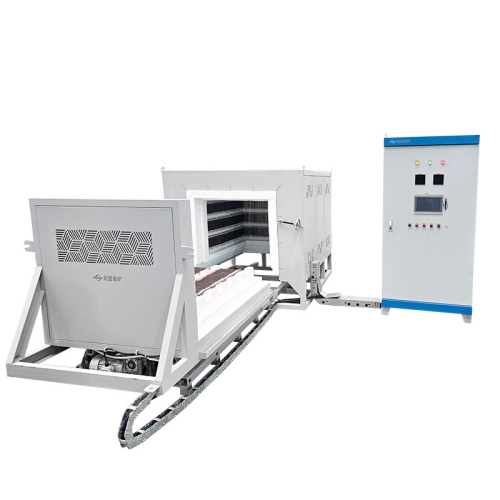

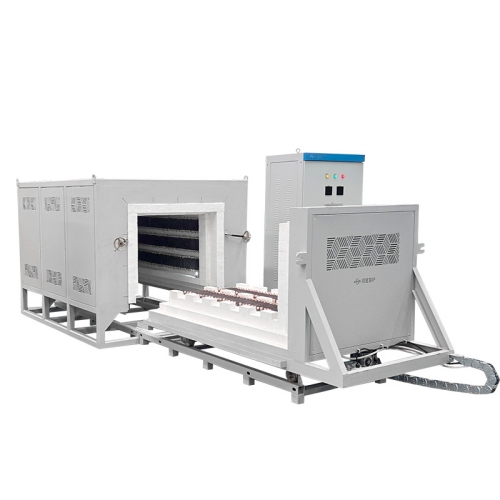

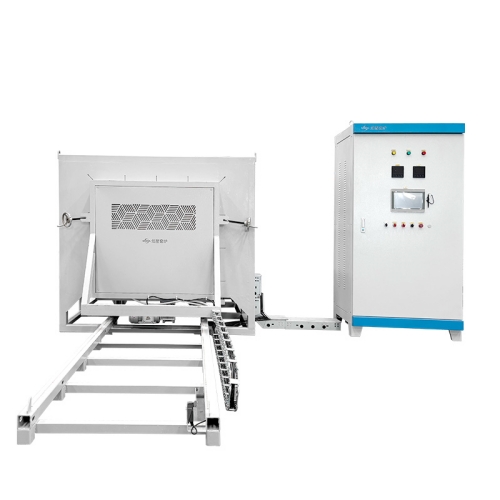

Laboratory Electric Furnace 1200-1700C Precision Bogie Hearth Furnace

ItemNo :
LITH-GWDL-TC1200
MOQ :
1
Compliance:
CE
Warranty:
2 years
Delivery Time:
5 days

Email :

Louis@lithmachine.com

Whatsapp :

+86 18559646958

Wechat :

18659217588

Contact Now

Product Details

Laboratory Electric Furnace 1200-1700C Precision Bogie Hearth Furnace

Technical Specifications

Long-term operating temperature: Room temperature to 1100-1200℃. The furnace door can be opened for material loading and unloading under high temperature conditions. The temperature can rise to 1200 ℃ within 2 hours under linear heating mode.
The furnace chamber adopts an integral box-type structure. Furnace chamber dimensions: Depth 1300mm × Width 800mm × Height 600mm. Heating elements are evenly arranged at the bottom, rear, left and right sides inside the furnace chamber for all-round heating.The furnace lining features excellent thermal insulation performance, good thermal shock resistance, no slag falling and no collapse. It is resistant to rapid cooling and rapid heating, with uniform temperature field and strong resistance to thermal expansion and contraction.
The junction between furnace mouth and trolley adopts step cross sealing combined with quartz sand knife sealing structure for effective sealing.
The trolley and furnace door are designed as an integrated structure, with power-off interlock function when the furnace door is opened. Equipped with variable frequency reducer assembly and chain transmission (with frequency conversion and combined limit control), realizing fast start and slow stop operation.
Ball catch snap rings are installed at the rear of the trolley to lock the trolley and prevent outward sliding.
Working height of the trolley: 500mm.
The outer surface of the electric furnace is equipped with decorative panels with high-temperature baking finish, featuring an aesthetic and neat appearance.
The furnace lining materials and heating elements shall have strong resistance to rapid cooling and rapid heating.
A Z-type exhaust port with a diameter of 40mm is arranged at the upper rear position, equipped with a matching plug.
Equipped with a 10-inch touch screen for programmed temperature control and SCR power regulator. It supports customized heating, heat preservation and cooling curves, and the entire program operation status can be displayed on the touch screen in real time.
Temperature control system: Siemens PLC control, PID regulation and microcomputer intelligent control. Programmable multi-segment temperature curves to realize fully automatic heating, heat preservation and cooling without manual on-duty monitoring.
Controller configuration: 2-channel temperature control. Thermocouples are installed on the top of the furnace chamber, including two for temperature control and one for temperature detection.
Main electrical components adopt Schneider brand. The manufacturer shall reserve 35 meters of compensation wires, control cables and motor cables between the control cabinet and the furnace body. Load cables shall be provided by the user, and the wiring shall cooperate with on-site bridge laying requirements.
Equipped with over-temperature protection and thermocouple break protection functions. The heating circuit will be automatically cut off in case of over-temperature or thermocouple failure.
The device is provided with a fault alarm system. Corresponding fault troubleshooting instructions shall be provided for all equipment faults.

Specification

No.	Item	Name	1200℃	1400℃	1600℃	1700℃	1800℃	1900℃	Manufacturer
1	Shell	Double-layer Shell	●	●	●	●	●	●	self-made
2	Electric Heating Elements	Electric Heater	High-temperature Alloy Resistance Wire	Silicon Carbide Rod	Molybdenum Disilicide Heating Element	1800-grade Molybdenum Disilicide Rod	1850-grade Molybdenum Disilicide Rod	1900-grade Molybdenum Disilicide Rod	self-made
3	Electrical Control Section	Temperature Controller	858P	858P	858P	858P	858P	858P	Xiamen Yudian
4		Thermocouple	Type K	Type S	Type B	Type B	Type B	Type B + Optical Fiber	Dazheng/Guangming
5		Voltmeter	●	●	●	●	●	●	Chint
6		Ammeter	●	●	●	●	●	●	Chint
7		SCR Power Regulator	●	●	●	●	●	●	self-made
8		Contactor	●	●	●	●	●	●	Chint/Delixi
9		Air Circuit Breaker	●	●	●	●	●	●	Chint/Delixi
10		Push Button	●	●	●	●	●	●	Chint/Delixi
11		Buzzer	●	●	●	●	●	●	Chint/Delixi
12		Fast Fuse	●	●	●	●	●	●	Rongrong
13		Transformer	○	○	●	●	●	●	self-made
14	Refractory & Insulation Lining	Ceramic Fiber Board/Module	1260	1500	1700	1800	1850	Zirconia Fiber 2100	self-made
15		Furnace Mouth Insulation Plug Brick (Inner Door)	○	●	●	●	●	●	self-made
16		Load-bearing Plate	Quartz Ceramic	Quartz Ceramic	Corundum-Mullite	Corundum-Mullite	Corundum-Mullite	Zirconia Fiber 2100	self-made

PACKAGE:

1 Standard exported package: Internal anticollision protection, external export wooden box packaging.

2 Shipping by express, by air, by sea according to customers' requirements to find the most suitable way.

3 Responsible for the damage during the shipping process, will change the damaged part for you for free.

DELIVERY TIME:15-20 days after confirming the order, detail delivery date should be decided according to

production season and order quantity.
