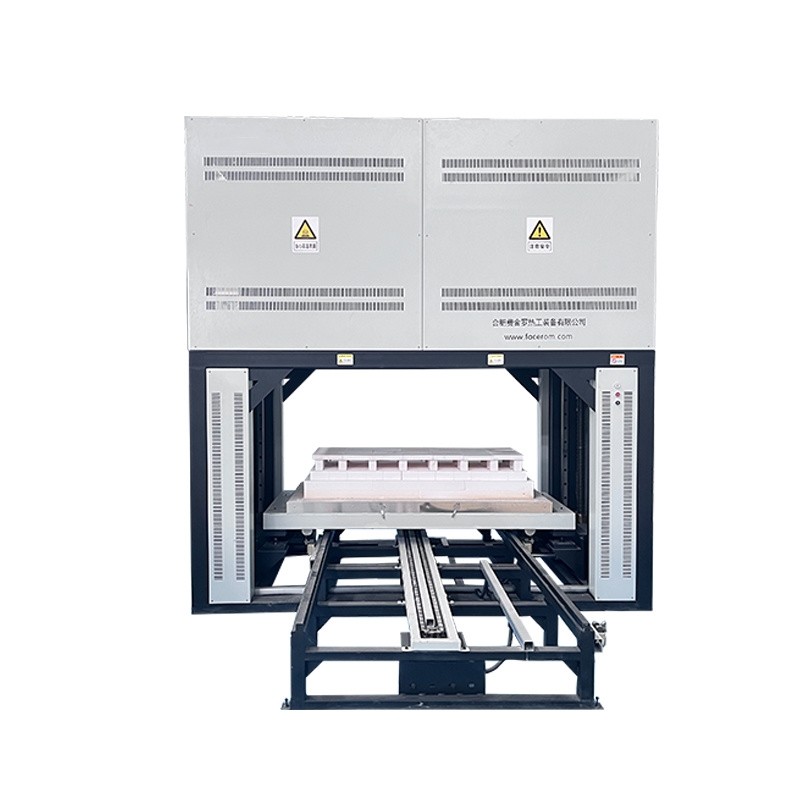

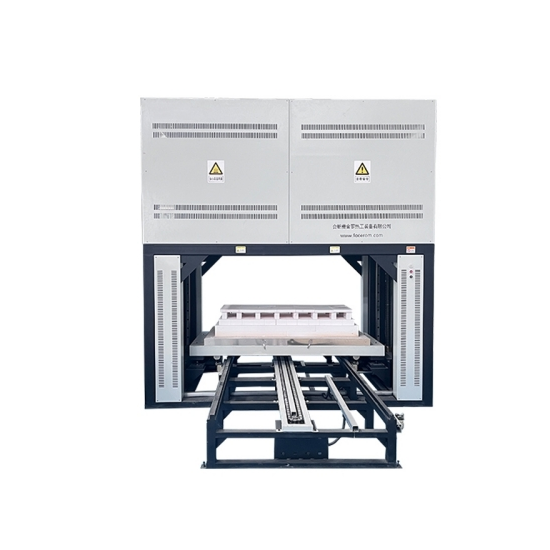

5 daysIndustrial 1550C High Temperature Bell-Type Sintering Furnace For Batch Prodution
Introduction
It is a batch-type high-temperature sintering furnace with a screw lifting system for the firing platform. It is suitable for batch production sintering processes of ceramic products such as zirconia, alumina, and dielectric ceramics.
Features
Working temperatures: 1350℃ and 1550℃
Optional upgrades: Exhaust gas purification furnace, industrial control computer
Specification
|
Equipment Model |
Chamber Size (L×W×H) |
Volume |
Thermocouple |
Heating Element |
Voltage |
Power |
|
FZL-72/16 |
400×400×450 mm |
72 L |
Type B |
Molybdenum Disilicide Heating Elements |
380V |
40 kW |
|
FZL-200/16 |
600×600×550 mm |
200 L |
Type B |
Molybdenum Disilicide Heating Elements |
380V |
60 kW |
|
FZL-320/16 |
1200×480×550 mm |
320 L |
Type B |
Molybdenum Disilicide Heating Elements |
380V |
100 kW |
|
FZL-430/16 |
1200×600×600 mm |
430 L |
Type B |
Molybdenum Disilicide Heating Elements |
380V |
110 kW |
PACKAGE:
1 Standard exported package: Internal anticollision protection, external export wooden box packaging.
2 Shipping by express, by air, by sea according to customers' requirements to find the most suitable way.
3 Responsible for the damage during the shipping process, will change the damaged part for you for free.
DELIVERY TIME:15-20 days after confirming the order, detail delivery date should be decided according to
production season and order quantity.
