Industrial 1600C High Temperature Bogie Hearth Electric Resistance Sintering Furnace

ItemNo :
LITH-GWL-STCY-1600C
MOQ :
1
Compliance:
CE
Warranty:
2 years
Delivery Time:
5 days

Email :

Louis@lithmachine.com

Whatsapp :

+86 18559646958

Wechat :

18659217588

Contact Now

Product Details

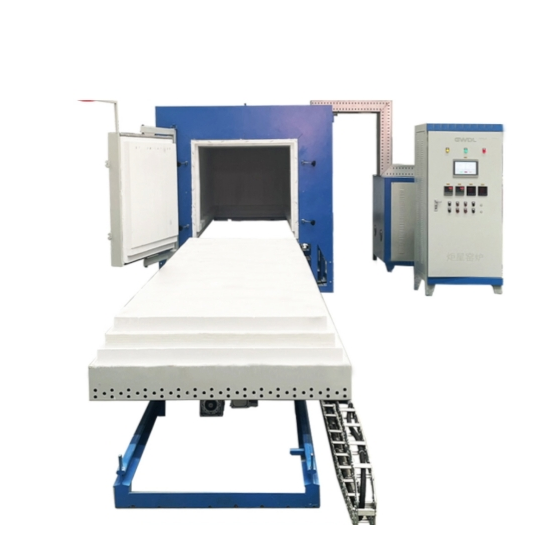

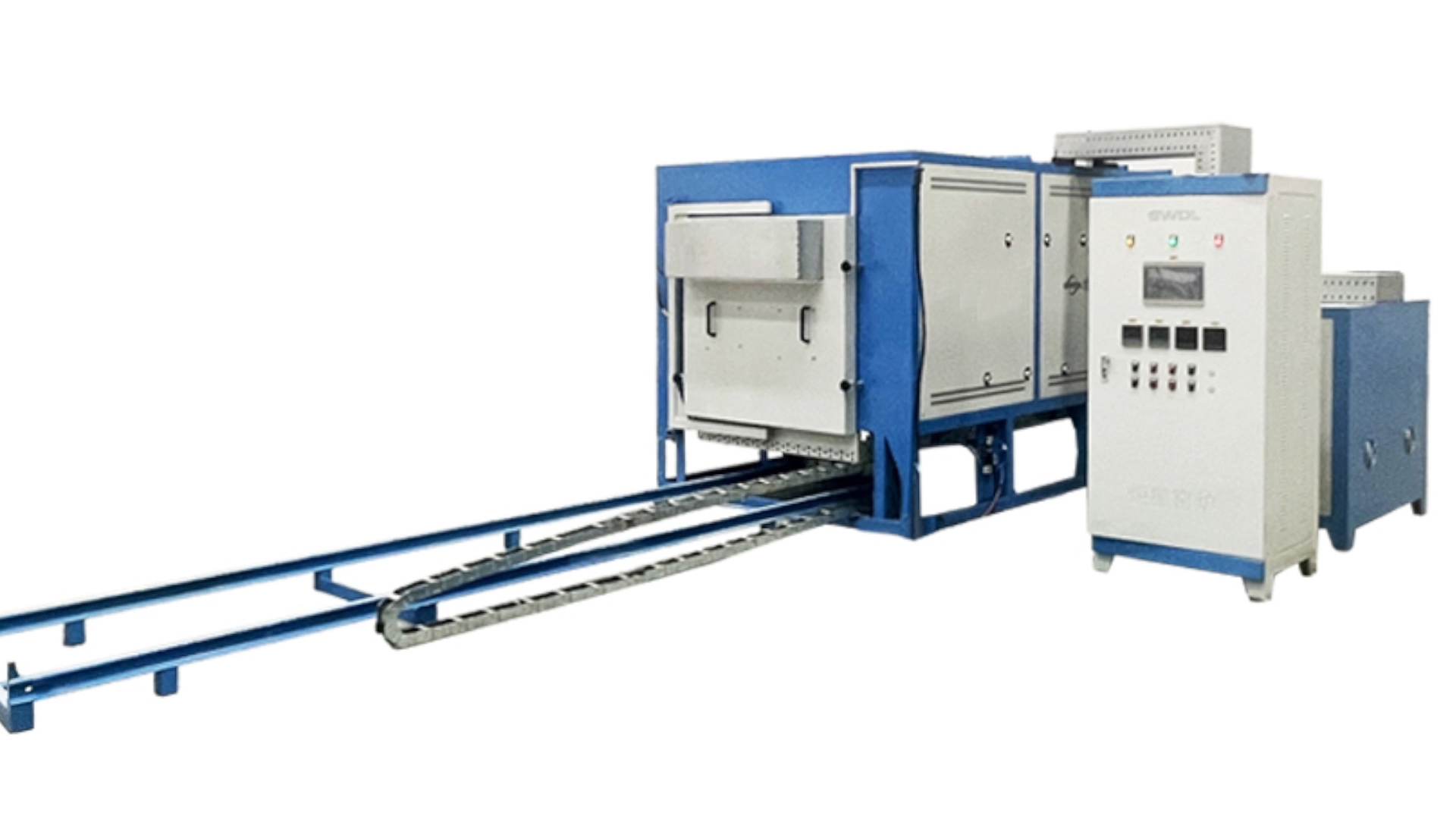

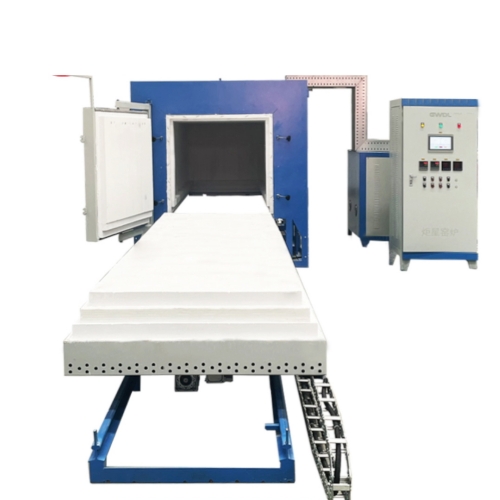

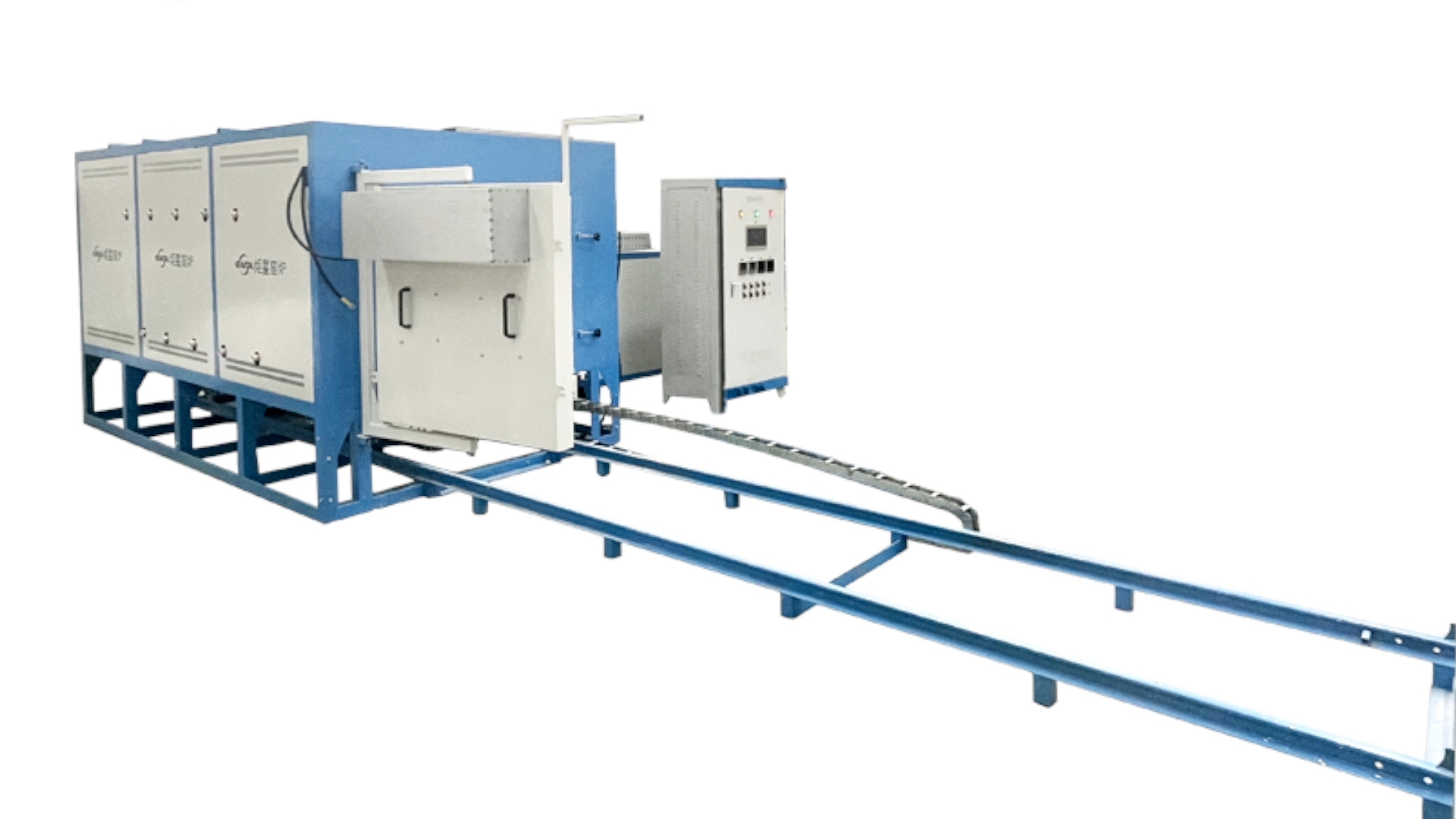

Industrial 1600C High Temperature Bogie Hearth Electric Resistance Sintering Furnace

Specification

Item	1600℃ Type
Power Supply AC	380V
Power	Max. design 260KW
Charging Tables	Two units
Furnace Chamber Dimensions (mm)	Depth 3050 × Width 1000 × Height 850
Longterm Working Temperature	≤1500℃
Temperature Control Range	80℃ to 1600℃
Temperature Measuring Element	Platinum-rhodium Type S thermocouple
Heating Element Location	Both sides of chamber + front and rear of furnace door; total 4-sided heating
Temperature Control Accuracy	±1℃ (Integrated circuit control, no overshoot)
Temperature Uniformity	±10℃ (depends on chamber size)
Temperature Control Points	Two points
Exhaust Ports	Auto open/close by temperature controller; two ports, φ60mm
Side Wall Holes	φ30mm; 5 upper and 5 lower on left side
Heating Rate	Adjustable freely; recommended max. 15℃/min, min. 1℃/h
Heating Element	MoSi₂ (molybdenum disilicide) rods
Furnace Body	CNC machined, polished, ground, pickled, phosphated, plastic powder coated and high-temperature baked; two-tone design, attractive appearance
Furnace Structure	Air-cooled double-layer with guide baffles for full cold-air circulation, cooling terminals and preventing oxidation
Door Opening	Electric side opening; trolley extends 1200mm from closed door
Door Sealing	6 sets of air cylinders on both sides and rear
Loading Capacity per Table	3 tons
Total Weight	Approx. 5 tons
Refractory Material	Vacuum formed highpurity alumina lightweight lining
Roof Structure	Flat suspended ceiling

PACKAGE:

1 Standard exported package: Internal anticollision protection, external export wooden box packaging.

2 Shipping by express, by air, by sea according to customers' requirements to find the most suitable way.

3 Responsible for the damage during the shipping process, will change the damaged part for you for free.

DELIVERY TIME:15-20 days after confirming the order, detail delivery date should be decided according to

production season and order quantity.
