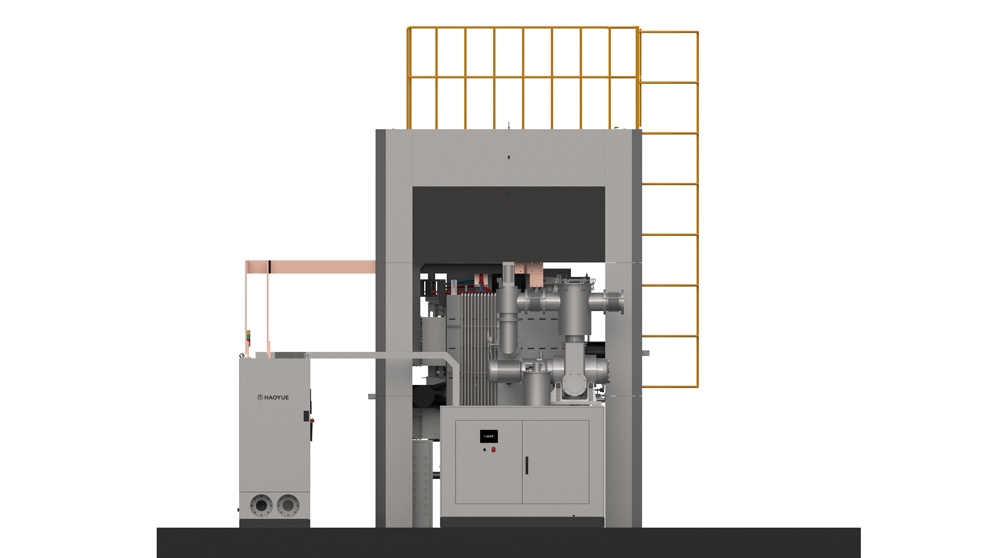

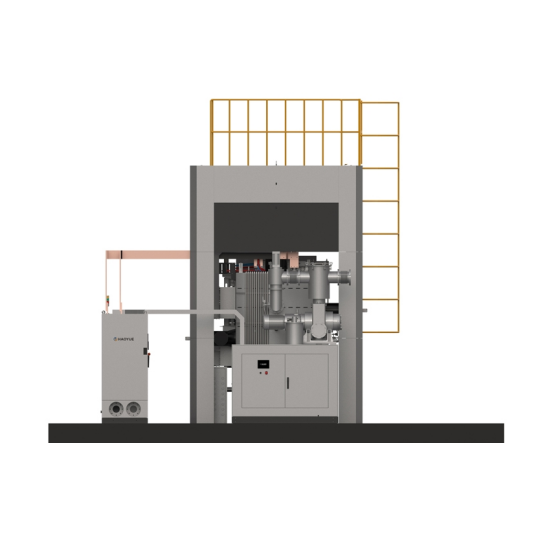

Industrial High Temperature 2200C 90L Vacuum Hot Pressing Sintering Furnace

ItemNo :
LITH-P5VGR22
MOQ :
1
Compliance:
CE
Warranty:
2 years
Delivery Time:
5 days

Email :

Louis@lithmachine.com

Whatsapp :

+86 18559646958

Wechat :

18659217588

Contact Now

Product Details

Industrial High Temperature 2200C 90L Vacuum Hot Pressing Sintering Furnace

Equipment Introduction

Hot Pressing Sintering Furnace is a complete set of equipment for hot press forming of materials under vacuum (or other atmospheres). It mainly adopts resistance or induction heating, with the upper and lower pressure applied by a cylinder-driven pressure head. At high temperatures, solid particles bond with each other, grains grow, pores (voids) and grain boundaries gradually decrease, and through mass transfer, the overall volume shrinks and density increases, forming dense polycrystalline sintered bodies with a specific microstructure, thereby pressing the materials into shape. The simultaneous action of high temperature, high pressure, and vacuum or atmosphere significantly improves the density, hardness, and other mechanical, electronic, and thermal properties of the products.

Hot pressing sintering of metal and ceramic powders

Preparation of ceramic/metal composites and intermetallic compounds

Research and development of diffusion bonding processes

Densification hot pressing sintering of oxides, nitrides, borides, carbides, and their mixtures

Applications

This equipment is suitable for high-temperature pressure sintering forming and densification of ceramic materials such as alumina, silicon carbide, boron carbide, and boron nitride, as well as new materials including graphene, carbon fiber, high-temperature alloy metal powder materials, powder metallurgy products, and functional ceramics. It can also be used for heat treatment of powders or compacts at temperatures below the melting point of their main components, with the purpose of improving their strength through metallurgical bonding between particles.

Product Features

Double-layer SUS304 furnace body structure with circulating cooling water in between, effectively reducing the furnace surface temperature, minimizing high-temperature damage, and lowering environmental impact.
Frame-type four-column support structure, constructed with profile welding and integral machining, ensuring equipment reliability.
Adopts advanced insulation materials and thermal insulation structures with low thermal conductivity, providing excellent heat preservation performance. It effectively isolates heat even at very high temperatures, saving energy consumption.
Wide temperature range with multiple optional heating elements (e.g., graphite, molybdenum, tungsten, induction heating). In a suitable protective atmosphere, the temperature can reach up to 2300°C, adapting to the hot pressing sintering of different materials.
Diversified vacuum system configurations, with different levels of vacuum selectable based on process requirements.
Equipped with a gas charging/discharging system, enabling hot pressing sintering in a vacuum environment, or in an inert or reducing atmosphere.
User-friendly configuration, supporting both manual and intelligent operation modes.
Multi-purpose design: can also be used as a standalone vacuum or atmosphere sintering furnace.
Vertical side door discharge design, suitable for large-scale industrial production.
Optional single-direction pressing or bidirectional pressing.

Specification

No.	Product Model	Max. Die Outer Diameter (mm)	Sample Diameter (mm)	Pressure (ton)	Ram Stroke (mm)	Cold Ultimate Vacuum (Pa)	Max. Working Temperature (℃)	CFC Die Max. Material Diameter (mm)
P3VGR22	VVPgr-30/30-2200	Φ300×300	Φ120	60	150	5/6.7×10⁻³	2200	180
P4VGR22	VVPgr-40/40-2200	Φ400×400	Φ200	200	200	5/6.7×10⁻³	2200	240
P5VGR22	VVPgr-50/50-2200	Φ500×500	Φ250	300	200	5/6.7×10⁻³	2200	300
P7VGR22	VVPgr-70/70-2200	Φ700×700	Φ420	600	350	5/6.7×10⁻³	2200	450
P8VGR22	VVPgr-80/80-2200	Φ800×800	Φ450	800	400	5/6.7×10⁻³	2200	500
P10VGR22	VVPgr-100/100-2200	Φ1000×1000	Φ600	1500	500	5/6.7×10⁻³	2200	650

PACKAGE:

1 Standard exported package: Internal anticollision protection, external export wooden box packaging.

2 Shipping by express, by air, by sea according to customers' requirements to find the most suitable way.

3 Responsible for the damage during the shipping process, will change the damaged part for you for free.

DELIVERY TIME:15-20 days after confirming the order, detail delivery date should be decided according to

production season and order quantity.
