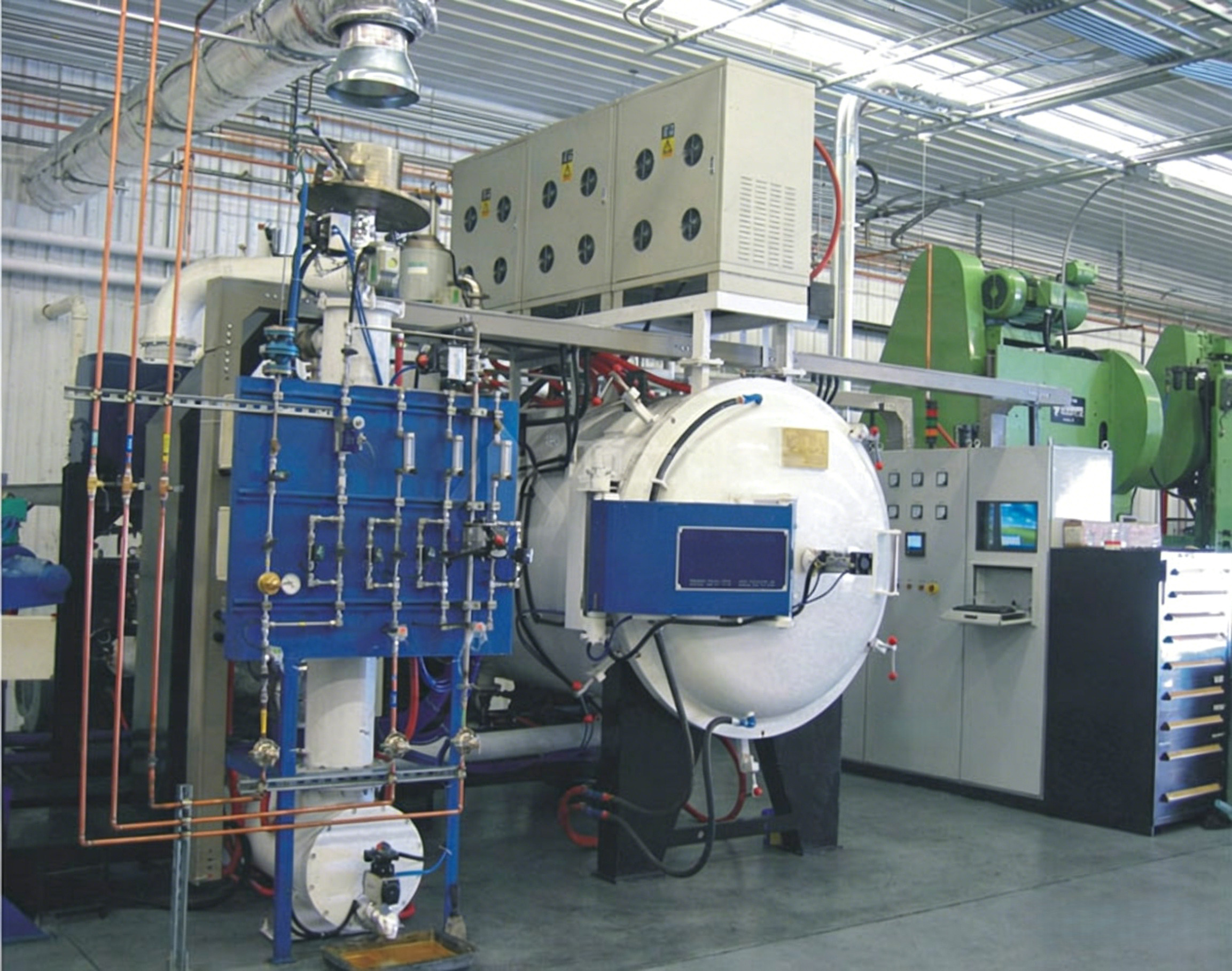

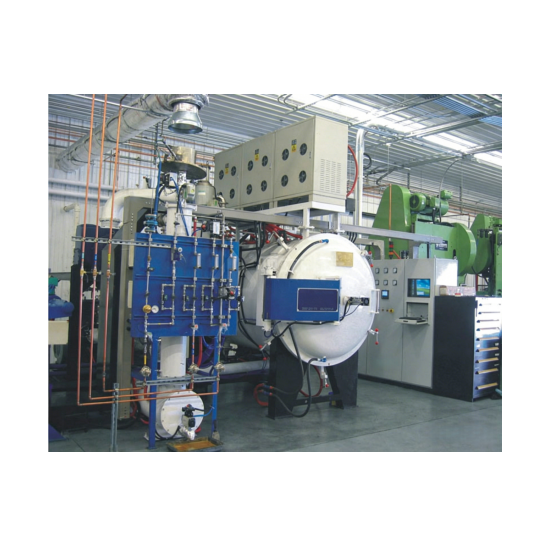

Industrial 1200C 120L Vacuum Debinding Sintering Furnace Fo Ceramic Batch Production

ItemNo :
LITH-VDSF-040408
MOQ :
1
Compliance:
CE
Warranty:
2 years
Delivery Time:
5 days

Email :

Louis@lithmachine.com

Whatsapp :

+86 18559646958

Wechat :

18659217588

Contact Now

Product Details

Industrial 1200C 120L Vacuum Debinding Sintering Furnace Fo Ceramic Batch Production

Product Description

Vacuum Debinding Sintering Furnace is mainly used for debinding and sintering of metal-based powder metallurgy products. It is suitable for debinding treatments of binders such as PEG, paraffin wax and rubber.

Application Scope

Iron-based, stainless steel, cemented carbide and other products.

Technical Features

Adopts special furnace chamber structure and heater arrangement to ensure excellent temperature uniformity.
Equipped with a specially structured debinding box featuring excellent sealing performance, realizing complete debinding without causing contamination to furnace internal components.
Equipped with multiple functions including flexible vacuum pumping, vacuum sintering, pressure sintering, micro positive pressure sintering, partial pressure sintering, negative pressure debinding, TOWAC debinding and micro positive pressure debinding.
Adopts advanced thermal insulation structure and materials, which endow the furnace chamber with superior thermal insulation performance and low heat storage, achieving energy saving of over 20% compared with traditional designs.
Compatible with process atmospheres: N₂/Ar/H₂/CH₄/NH₃.

Specification

Parameters / Model	VDSF-030306	VDSF-040408	VDSF-040415	VDSF-050520
Working Zone Size W×H×L (mm)	300×300×600	400×400×800	400×400×1500	500×500×2000
Max. Temperature (°C)	1200-1550	1200-1550	1200-1550	1200-1550
Temperature Uniformity (°C)	±4~±5	±4~±5	±4~±5	±4~±5
Ultimate Vacuum Degree (Pa)	1	1	1	1
Pressure Rise Rate (Pa/h)	0.67	0.67	0.67	0.67

Note: The above parameters can be adjusted according to process requirements and shall not be regarded as acceptance criteria. The final specifications shall be subject to the technical proposal and agreement.

Configuration Options

Door locking mode: manual / automatic

Furnace shell material: full carbon steel / inner stainless steel layer / full stainless steel

Thermal insulation material: carbon felt / graphite felt / carbon fiber rigid felt / metal

Heating element and muffle material: graphite / CFC / metal

Thermocouple: Type C (tungsten sleeve / molybdenum sleeve / ceramic sleeve)

PACKAGE:

1 Standard exported package: Internal anticollision protection, external export wooden box packaging.

2 Shipping by express, by air, by sea according to customers' requirements to find the most suitable way.

3 Responsible for the damage during the shipping process, will change the damaged part for you for free.

DELIVERY TIME:15-20 days after confirming the order, detail delivery date should be decided according to

production season and order quantity.
