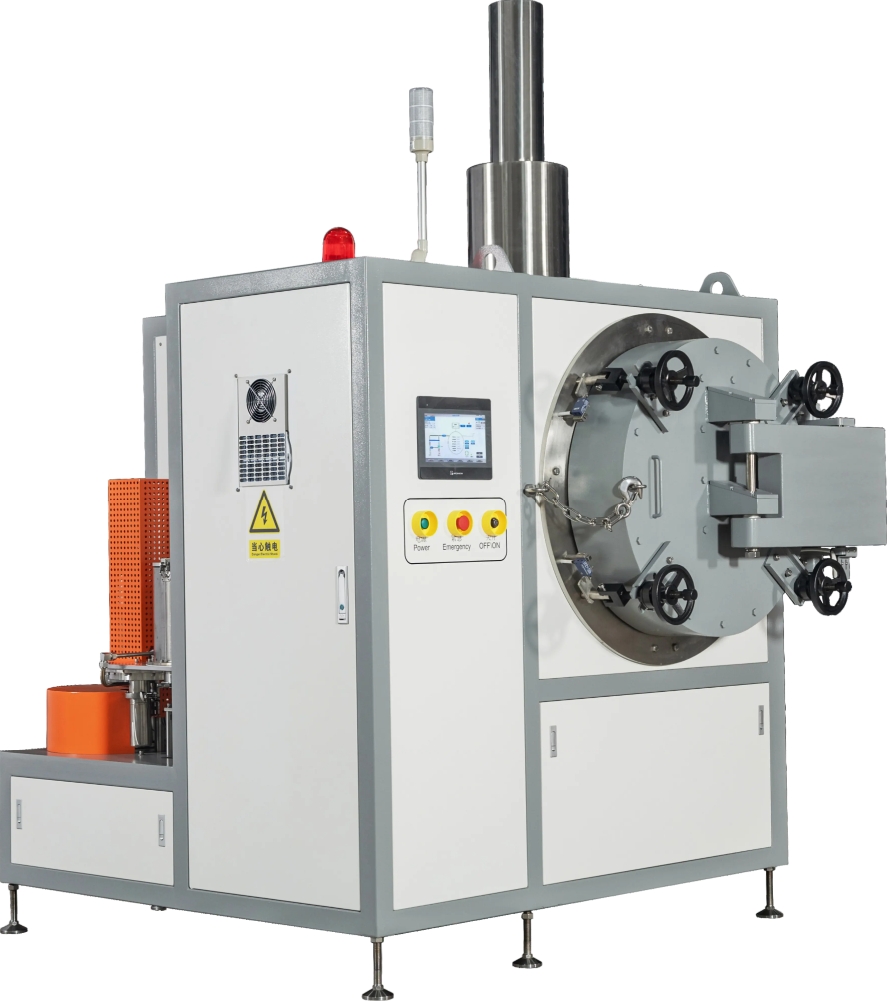

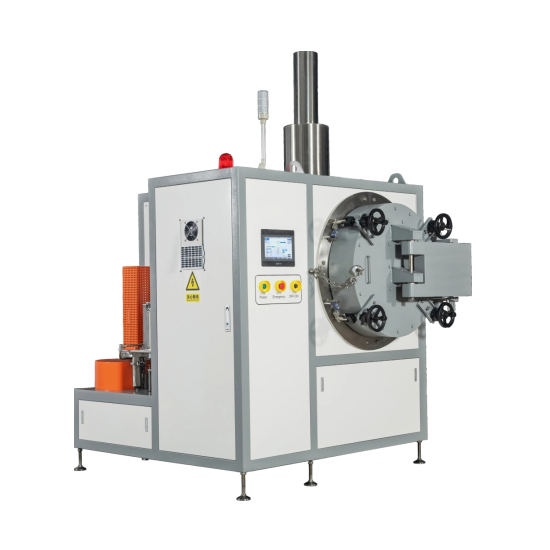

5 daysIndustrial 140C 400L Oxalic Acid Catalytic Debinding Furnace For Active Metal Powder
Introduction
Catalytic debinding for conventional active metal materials that are easy to be oxidized, which is more energy-saving, safer operation environmental-friendly, and the exhaust gas can be directly discharged.
Specification
Model No: 400L-0A
Working temperature: 110-140°C
Dimension: L2046xW1769xH2718mm
Available working size: L1005x W421x H414 mm
Chamber dimension: φ700x 1202 mm
Standard cycle ti: 4-6 h
Oxalic acid consumptio: 150-300 g/h
Acid feeding mode: Continuous controlled acid feeding
Nitrogen consumption: 3.5-4.5 m3/h
Total weight: 2000 kg
Feeding mode: By transfer cart
Combustion mode: Electrothermal combustion
Exhaust gas: CO2and H2O(Non-pollution)
Installation power: 32.3KW
PACKAGE:
1 Standard exported package: Internal anticollision protection, external export wooden box packaging.
2 Shipping by express, by air, by sea according to customers' requirements to find the most suitable way.
3 Responsible for the damage during the shipping process, will change the damaged part for you for free.
DELIVERY TIME:15-20 days after confirming the order, detail delivery date should be decided according to
production season and order quantity.
