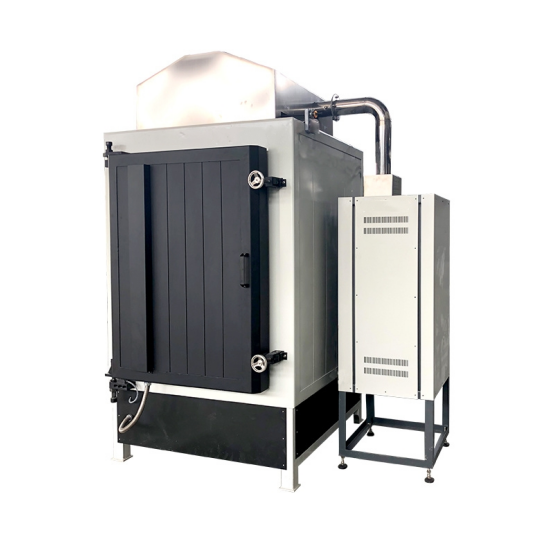

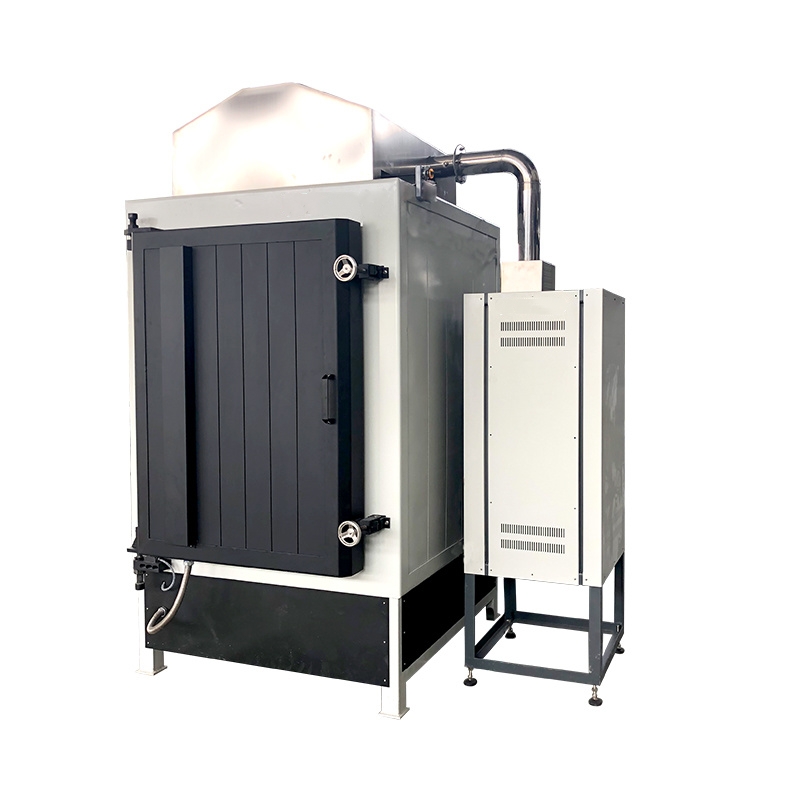

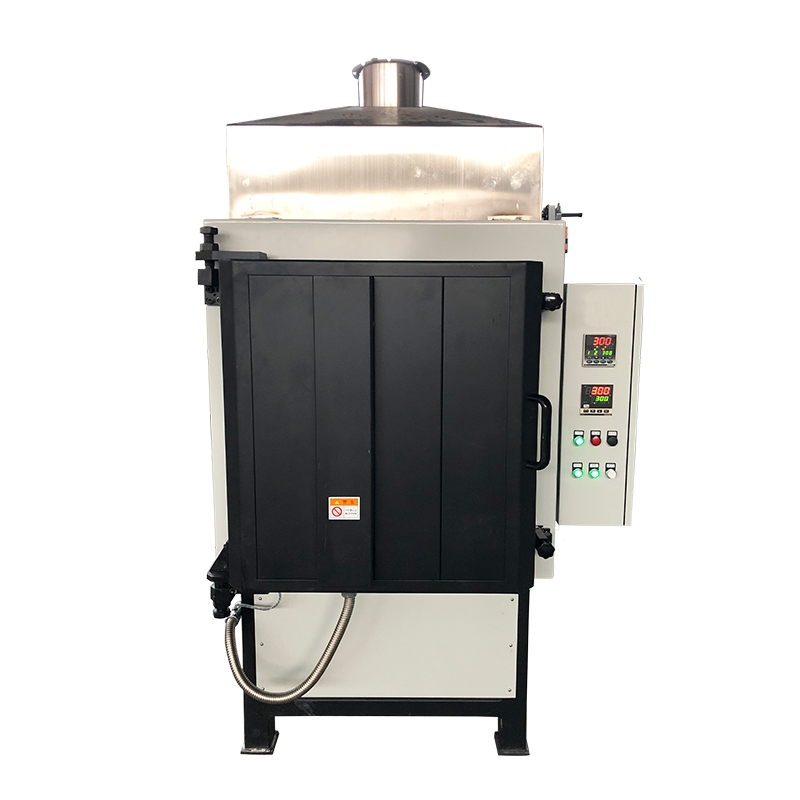

5 daysIndustrial 1300C Debinding & Pre-Sintering Furnace For Additive Manufacturing
Introduction
This furnace is primarily designed for the integrated debinding and pre-sintering processes of fine ceramic components made from aluminum nitride (AlN), silicon nitride (Si₃N₄), alumina (Al₂O₃), zirconia (ZrO₂), and dielectric ceramics. It is also suitable for the binder removal, pre-sintering, and sintering processes of ceramic powders, magnetic materials, LTCC, MLCC, NTC, NFC, ceramic cores, and other electronic components.
The furnace adopts a unique thermal field control method, which achieves excellent temperature uniformity during both low-temperature debinding and high-temperature pre-sintering, ensuring the precise thermal environment required for both process stages.
Specification
Model 1300 Debinding & Sintering Integrated Furnace
|
Equipment Model |
Max. Temperature |
Chamber Size (W×H×D) |
Heating Method |
Thermocouple |
Voltage |
Power |
|
FXL(T)-60/13 |
1300℃ |
280×400×400 mm |
Five-sided heating |
Type S |
380V |
17 kW |
|
FXL(T)-125/13 |
1300℃ |
380×500×500 mm |
Five-sided heating |
Type S |
380V |
25 kW |
|
FXL(T)-300/13 |
1300℃ |
440×780×700 mm |
Five-sided heating |
Type S |
380V |
50 kW |
|
FXL(T)-700/13 |
1300℃ |
700×1100×820 mm |
Five-sided heating |
Type S |
380V |
70 kW |
PACKAGE:
1 Standard exported package: Internal anticollision protection, external export wooden box packaging.
2 Shipping by express, by air, by sea according to customers' requirements to find the most suitable way.
3 Responsible for the damage during the shipping process, will change the damaged part for you for free.
DELIVERY TIME:15-20 days after confirming the order, detail delivery date should be decided according to
production season and order quantity.
