5 daysIndustrial 1000C Debinding Furnace For Tungsten Carbide Powder With 2 Heating Zones
Product Description

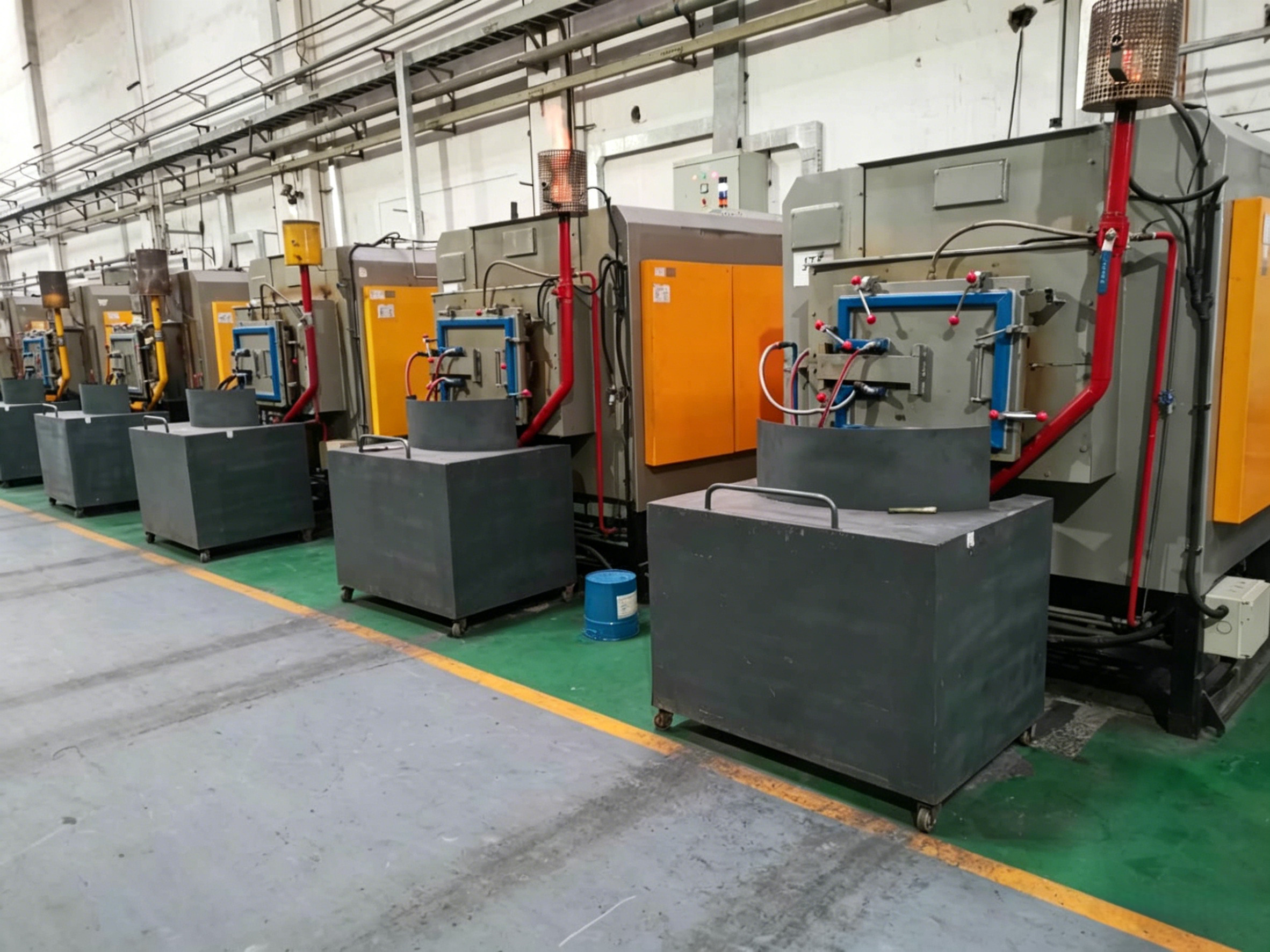

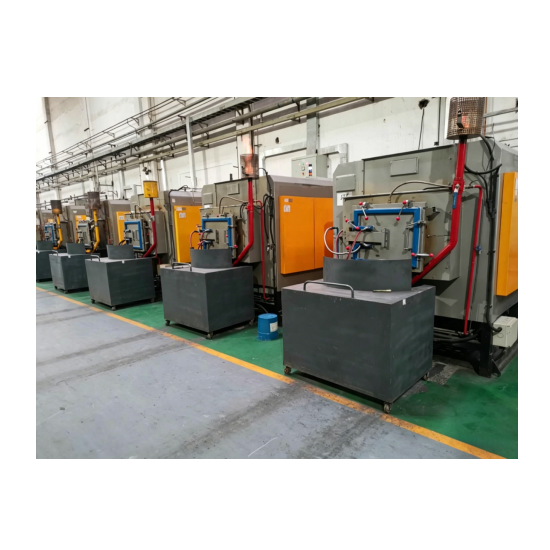

This equipment is mainly used for debinding and pre-sintering of cemented carbide, silver-tungsten alloy and similar materials.
Technical Features
Specification
|
Parameters / Model |
610×350×1000 |
|
Number of Heating Zones |
2 |
|
Max. Temperature (°C) |
1000 |
|
Rated Heating Power (kW) |
98 |
|
Working Zone Temperature Uniformity (°C) |
±5 |
|
Binder Recovery Rate (%) |
≥98 |
Note: The above parameters are calculated based on the cemented carbide debinding process. They can be adjusted according to process requirements and shall not be regarded as acceptance criteria. The actual specifications shall be subject to the technical agreement.
Configuration Options
Furnace lining material: aluminum silicate fiber blanket / aluminum silicate fiber board / high-temperature refractory brick / lightweight insulating brick / high-alumina refractory brick
Heating element material: 0Cr21Al6Nb
Furnace tube material: SUS310S
Operation panel: mimic panel / touch screen / industrial control computer
PLC: Omron / Siemens
Thermocouple: Type K
Electrical components: Chint / Schneider / Siemens
PACKAGE:
1 Standard exported package: Internal anticollision protection, external export wooden box packaging.
2 Shipping by express, by air, by sea according to customers' requirements to find the most suitable way.
3 Responsible for the damage during the shipping process, will change the damaged part for you for free.
DELIVERY TIME:15-20 days after confirming the order, detail delivery date should be decided according to
production season and order quantity.
