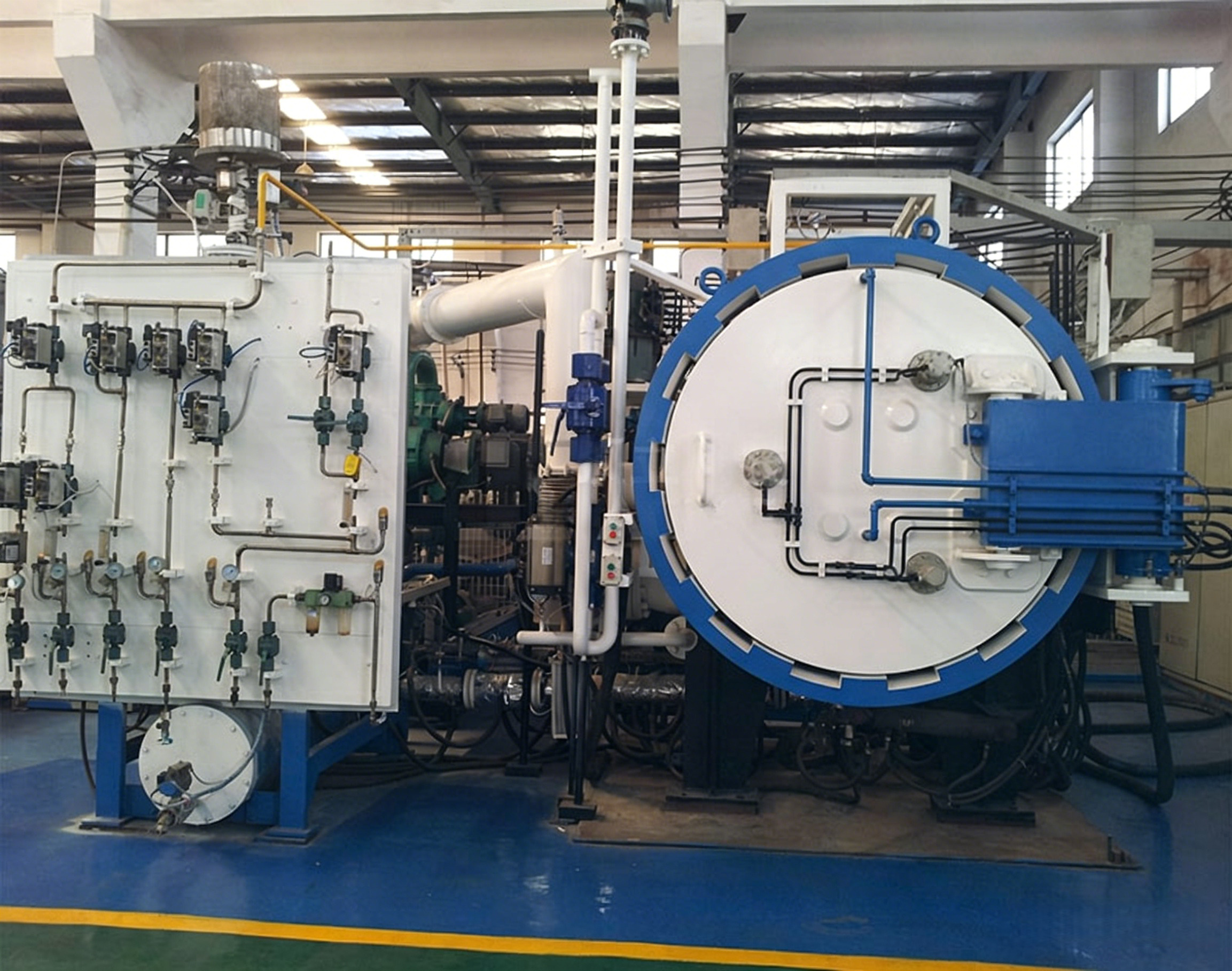

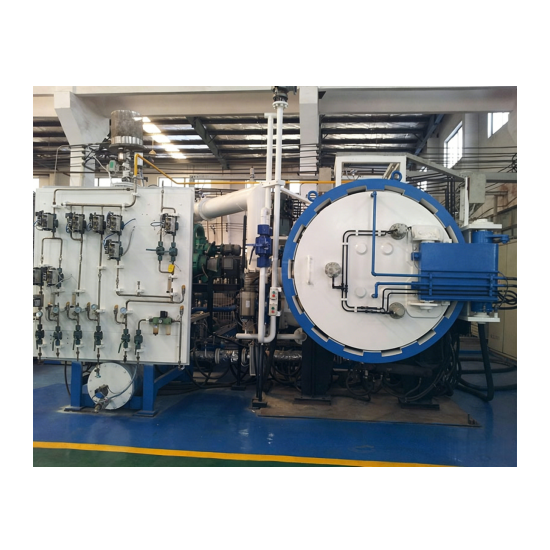

Industrial 450L 1200C Vacuum Debinding Pressure Sintering Furnace For Tungsten Carbide Production

ItemNo :
LITH-PSF-050518
MOQ :
1
Compliance:
CE
Warranty:
2 years
Delivery Time:
5 days

Email :

Louis@lithmachine.com

Whatsapp :

+86 18559646958

Wechat :

18659217588

Contact Now

Product Details

Industrial 450L 1200C Vacuum Debinding Pressure Sintering Furnace For Tungsten Carbide Production

Product Description

Vacuum (Debinding) Pressure Sintering Furnace is mainly used for vacuum sintering and pressure sintering of metal matrix powder metallurgy products, as well as vacuum infiltration of copper tungsten alloys.

Application Scope

Copper tungsten alloys, high density alloys, cemented carbides, etc.

Technical Features

Adopts special furnace chamber structure and heater arrangement, ensuring excellent temperature uniformity.
Equipped with specially structured debinding box with reliable sealing, enabling thorough debinding without contamination to furnace components.
Provides multiple functions including flexible vacuum pumping, vacuum sintering, pressure sintering, micro positive pressure sintering, partial pressure sintering, negative pressure debinding, TOWAC debinding, and micro positive pressure debinding.
Utilizes advanced thermal insulation structure and materials, featuring good thermal insulation performance and low heat storage of the furnace chamber, achieving over 20% energy saving compared with traditional designs.
Compatible with process atmospheres: N₂ / Ar / H₂.

Specification

Parameters / Model	PSF-040408	PSF-050518
Working Zone Size W×H×L (mm)	400×400×800	500×500×1800
Max. Temperature (°C)	1200-1550	1200-1550
Temperature Uniformity (under vacuum) (°C)	±5	±5
Temperature Uniformity (under pressure) (°C)	±10	±10
Ultimate Vacuum Degree (Pa)	1	1
Pressure Rise Rate (Pa/h)	0.67	0.67
Max. Pressure (MPa)	10	10

Note: The above parameters can be adjusted according to process requirements and shall not be regarded as acceptance criteria. The final specifications shall be subject to the technical proposal and agreement.

Configuration Options

Door locking mode: manual / automatic

Furnace shell: full carbon steel / inner stainless steel layer / full stainless steel / Q345

Insulation material: rigid carbon fiber felt

Heating element material: isostatic pressing graphite

Muffle material: graphite

Thermocouple: Type C (tungsten sleeve / molybdenum sleeve / ceramic sleeve)

PACKAGE:

1 Standard exported package: Internal anticollision protection, external export wooden box packaging.

2 Shipping by express, by air, by sea according to customers' requirements to find the most suitable way.

3 Responsible for the damage during the shipping process, will change the damaged part for you for free.

DELIVERY TIME:15-20 days after confirming the order, detail delivery date should be decided according to

production season and order quantity.
