Automatic Multi-Layer Spin Coater – 1000 Layers Max, Heated Cover & Solution Dispenser
Product Overview
Specifications
|
Category |
Parameter |
Details |
|
Environmental Requirements |
Altitude |
≤1000 m |
|
|
Operating Temperature |
25 ±15°C |
|
|
Humidity |
55% RH ±10% RH |
|
Program Features |
Program Sections |
A & B (each with 6 segments) |
|
|
Maximum Repeat Cycles |
500 per section (1000 layers total) |
|
|
Spin Speed Range |
500 – 10,000 RPM (1 RPM step) |
|
|
Z-Axis Stroke |
250 mm |
|
Vacuum Chuck Options |
Available Sizes |
1", 2", 4" |
|
Heating System |
Heating Cover Material |
PTFE-coated |
|
|
Temperature Range |
Up to 200°C (requires PTFE chuck) |
|
|
Vacuum Pressure Range |
-100 to +100 kPa |
|
Power & Electrical |
Total Power Consumption |
1200 W |
|
|
Heating Power |
800 W |
|
|
Spin Coater & Pump Input |
AC 110–220V, 50/60Hz (DC24V converter included) |
|
|
Temperature Controller Input |
AC110V, 50/60Hz |
|
Vacuum Pump |
Included Pump |
120 L/min oil-free (AC110V or 220V compatible) |
|
|
Glove Box Adaptation |
Optional feedthrough (additional cost) |
|
Dispensing System |
Nozzles |
2× stainless steel mini nozzles |
|
|
Anti-Drying Mechanism |
Elevation lever to prevent clogging |
|
Certifications |
Standard Compliance |
CE |
Key Technical

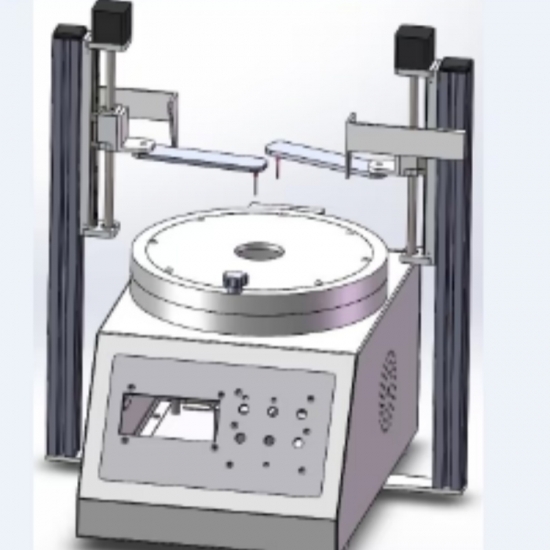

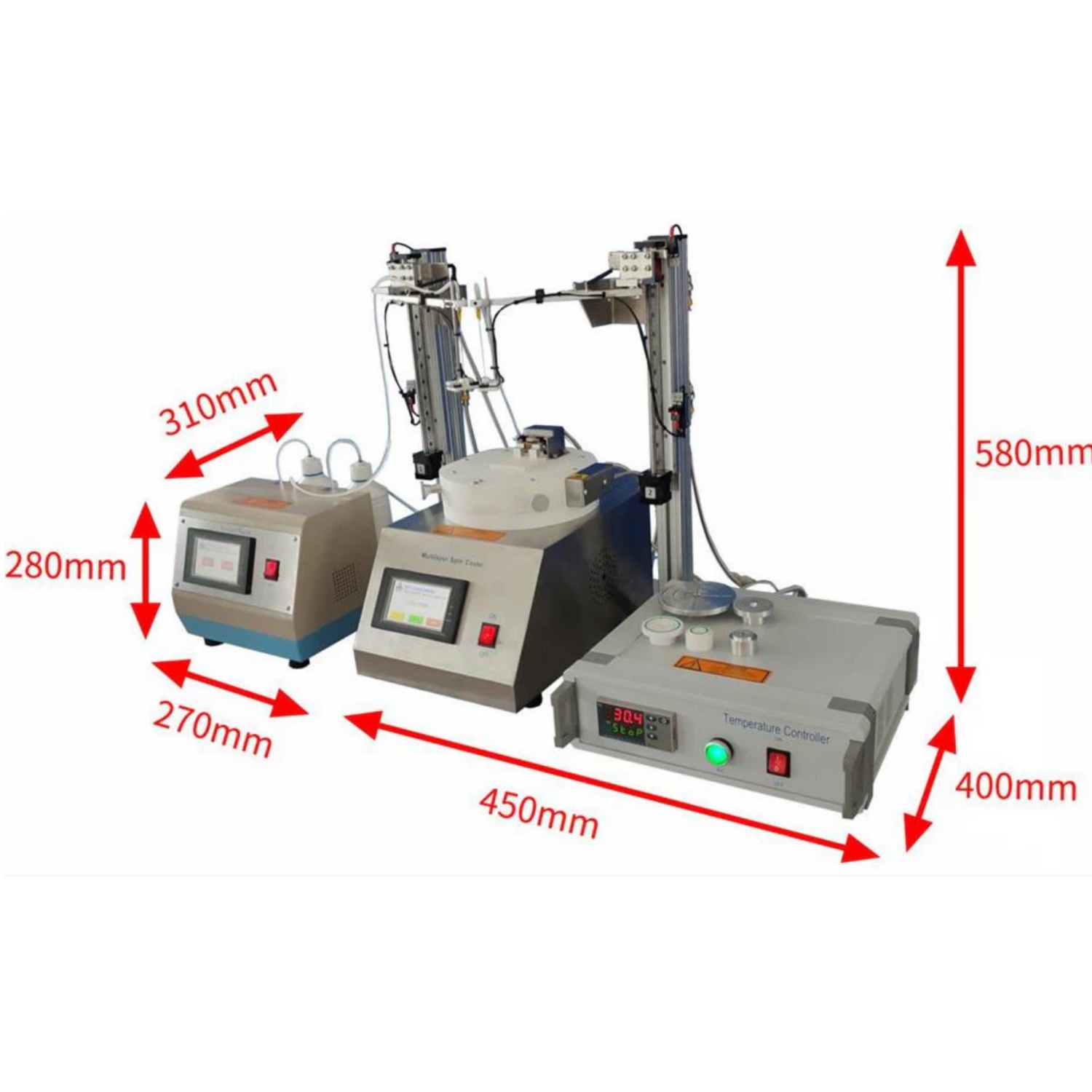

The Lith-KJ4M Automatic Multi-Layer Spin Coater is designed for the deposition of perovskite materials, semiconductors, optical coatings, and thin films. It automates the entire process—dispensing, spin coating, and drying—enabling layer-by-layer deposition of two different solutions with up to 1000 layers to form the desired film structure.
The system features:
· Interchangeable vacuum chucks (1", 2", 4") to accommodate various sample sizes.
· Top-mounted PTFE heating cover (up to 200°C) for rapid drying of wet films (PTFE chuck required for heating).
· Dual-program capability (A/B sections, each with 6 programmable segments, repeatable 500 times).
PACKAGE:
1 Standard exported package: Internal anticollision protection, external export wooden box packaging.
2 Shipping by express, by air, by sea according to customers' requirements to find the most suitable way.
3 Responsible for the damage during the shipping process, will change the damaged part for you for free.
DELIVERY TIME:15-20 days after confirming the order, detail delivery date should be decided according to
production season and order quantity.
