ItemNo :
Lith-KJ3MOQ :
1Compliance:
CE CertifiedWarranty:
1 yearDelivery Time:
5 days
Lab Spin Coater with UV Curing & Inert Gas – 10K RPM for 3" Wafers

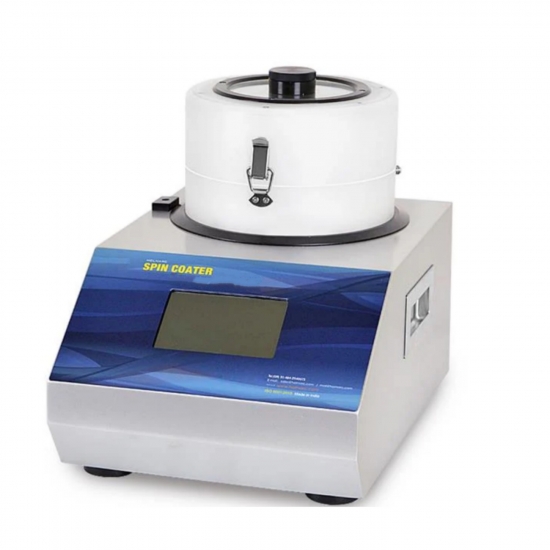

The KJ3 is a bench-top spin coater featuring a touchscreen interface, designed for small substrates (Ø30–70 mm). Equipped with a 365 nm UV LED curing cover, it ensures precise photopolymerization. The system incorporates vacuum chucks powered by an oil-free vacuum pump, providing stable mounting for substrates of varying sizes/shapes. An adjustable/rotatable syringe holder enables flexible dispensing, while built-in safety measures (e.g., drainage, spill containment) ensure secure high-speed operation.
|
Category |
Details |
|
Structure |

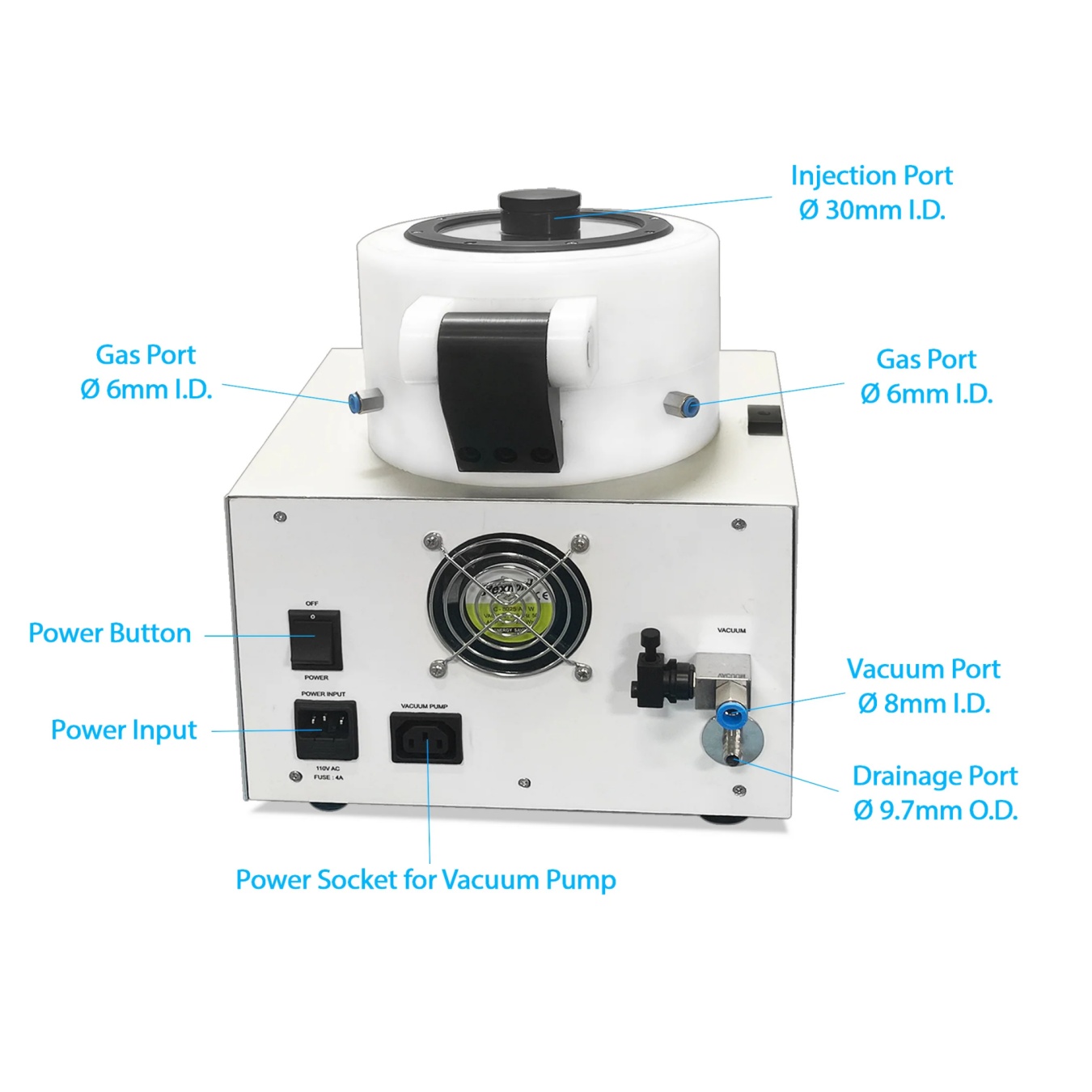

- Nylon corrosion-resistant chamber - Top-mounted 6mm gas inlet port (inert gas/vacuum compatibility) - Integrated oil-free vacuum pump |
|
Input Power |
AC 110V/220V, 50Hz, single-phase (selectable during ordering) |
|
Vacuum Chuck & Pump |
- Material: Nylon (anti-corrosive) - Compatibility: Substrates Ø30–70 mm - Included O-rings: OD 14 mm / 22 mm / 35 mm - Vacuum port: 8 mm diameter |
|
Touchscreen Control |
- Speed: 60–9,999 rpm (programmable) - Duration: Up to 99 hours - Acceleration: 5–2,000 rpm/sec - Accuracy: <±5% - Program Steps: 10 max - Memory: 9 saved programs |
|
UV Curing Cover |
- Wavelength: 365 nm (LED array on cover) |
|
Liquid Injection |

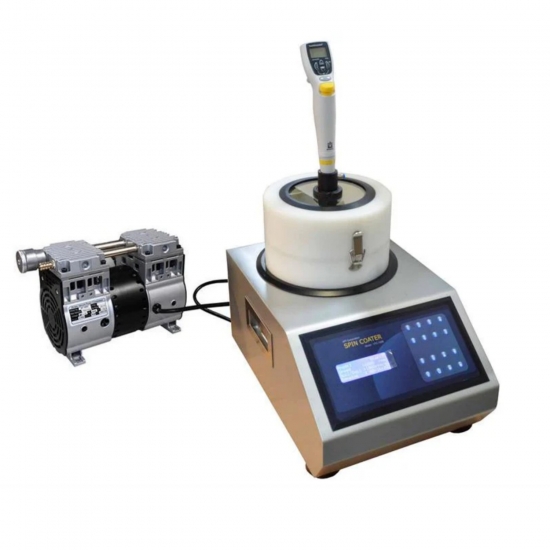

- Standard: 20 mL plastic syringe + needle - Optional 1: Electronic pipette (20–200 µL) - Optional 2: Heatable glass syringe (≤200°C) - Port size: 30 mm |
|
Gas Inlet |
- 6 mm port for controlled gas flow (inert/vacuum environments) |
|
Dimensions & Weight |
- Size: 400 × 275 × 331 mm (L × W × H) - Weight: 34 kg (75 lbs) |
|
Compliance |
- CE certified |
|
Warranty |
- 1-year limited |
· Precision control: Programmable multi-step spin profiles with high acceleration.
· Material versatility: Supports UV-curable resins, solvents, and heated fluids (optional).
· User-centric design: Touchscreen interface, modular chucks, and corrosion-resistant materials.
PACKAGE:
1 Standard exported package: Internal anticollision protection, external export wooden box packaging.
2 Shipping by express, by air, by sea according to customers' requirements to find the most suitable way.
3 Responsible for the damage during the shipping process, will change the damaged part for you for free.
DELIVERY TIME:15-20 days after confirming the order, detail delivery date should be decided according to
production season and order quantity.
