ItemNo :
LITH-XGY-2MMOQ :
1Warranty:
2yearsDelivery Time:
5 days

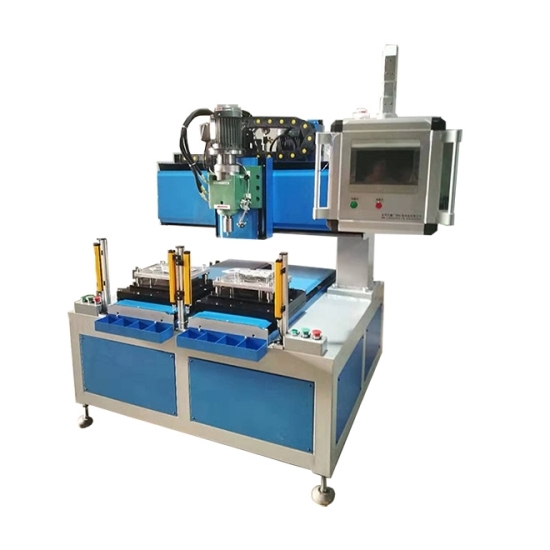

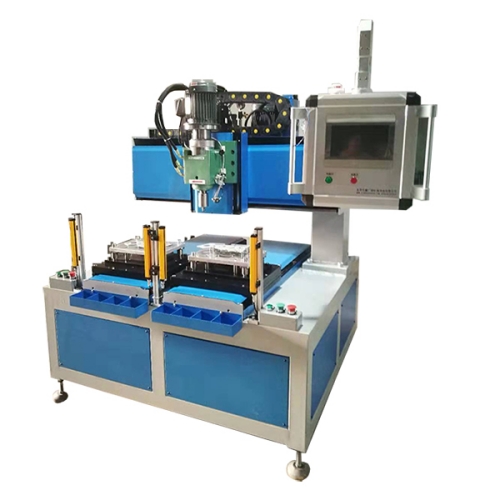

Features
The workbench is used to place workpieces (the width of the workbench surface can be customized according to customer requirements), which is more efficient.
Automatically rivets each preset riveting point one by one.
The height of the riveting head is automatically adjusted for riveting points of different planar heights.
For rivets of different sizes, the riveting time is automatically adjusted to achieve the maximum riveting quality and the best riveting efficiency.
A specially designed forced pneumatic material ejection device is provided to easily complete the product discharge.
For the riveted workpieces, it has a code storage function. When used for the second time, only the data needs to be directly called up.
For the riveted workpieces, it has a code storage function. When used for the second time, only the data needs to be directly called up.
The positioning is driven by imported Japanese servo motors, which are precise, stable and durable.
The 8-inch color human-machine interface display makes operation more intuitive and easy.
Technical parameters
1) X-axis working range: Max. 500MM.
2) Y-axis working range: Max. 300MM
3) Positioning accuracy: 0.1MM
4) Repeatability accuracy: 0.05MM
5) Number of NCS: 3 axes
6) Z-axis movement range: Hydraulic stroke: 30mm, numerical control stroke: Max.150mm.
7) Program capacity: More than 100 sets.
8) Processing points: More than 100 points.
9) Positioning: 2-axis linkage, with manual control for the movement of the X, Y, and Z axes.
10) Workpiece positioning: Manual positioning.
11)X, Y speed: Maximum 400MM/S
12) Lead of X and Y lead screws: 10MM;
Z-axis lead screw lead: 5MM
13) Monitoring signal: Touchscreen display
14) Fault display: Touchscreen display
15) Teaching box: Make your own teaching box
16) Programming method: Teaching demonstration
1 Standard exported package: Internal anticollision protection, external export wooden box packaging.
2 Shipping by express, by air, by sea according to customers' requirements to find the most suitable way.
3 Responsible for the damage during the shipping process, will change the damaged part for you for free.
DELIVERY TIME:15-20 days after confirming the order, detail delivery date should be decided according to
production season and order quantity.
