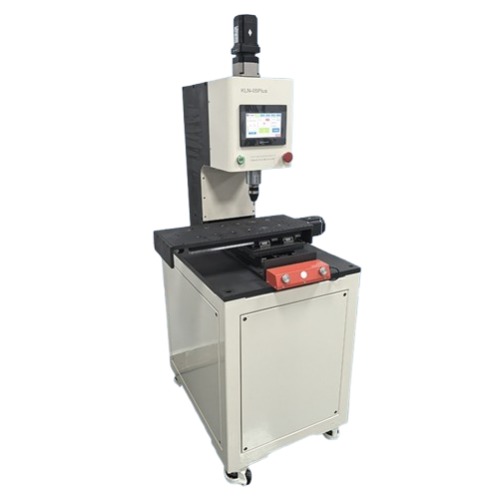

ItemNo :
LITH-05PlusMOQ :
1Compliance:
Warranty:
2yearsDelivery Time:
5 days
Application
It is suitable for riveting products with multiple rivets, at different positions and heights, but with consistent appearance and similar size. Automatic riveting of solid or hollow rivets at multiple points for hardware components in industries such as automotive parts, precision electronics, sheet metal shafts for movements, 3C electronics, and hardware tools.
Features
The body features a humanized design and an attractive appearance.
High-performance servo motors and precise PLC control;
High-precision lead screw feed with high repeatability accuracy, up to 0.01mm.
Weilun 7-inch high-definition touch screen, with clear field of view and convenient operation;
High-precision and high-flexibility riveting chucks offer better riveting effects.
With up to 50 coordinate riveting points set on the XY axes, multiple products, multiple riveting points, and riveting at different heights can be achieved at once, doubling the efficiency
Technical parameter
|
Riveting ability |
Solid Φ1-5mm (soft steel) |
|
Itinerary |
MAX 70mm |
|
Rivet length |
1-70mm |
|
Deep throat |
250mm |
|
Power |
0.4Kw AC220V/50Hz (Rotary motor) |
|
Maximum working pressure |
3*0.75Kw AC220V/50Hz (lead screw motor) |
|
Workbench area |
8KN(800kg) |
|
Overall dimensions |
230*380mm |
|
Net weight |
800*685*1780mm(L*W*H) |
1 Standard exported package: Internal anticollision protection, external export wooden box packaging.
2 Shipping by express, by air, by sea according to customers' requirements to find the most suitable way.
3 Responsible for the damage during the shipping process, will change the damaged part for you for free.
DELIVERY TIME:15-20 days after confirming the order, detail delivery date should be decided according to
production season and order quantity.
