ItemNo :
LITH-10PlusMOQ :
1Warranty:
2yearsDelivery Time:
5 days

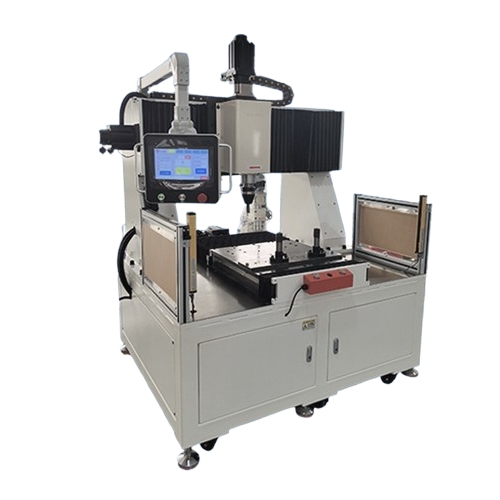

Application
It is suitable for riveting products with multiple rivets, at different positions and heights, but with consistent appearance and similar size. Automatic riveting of solid or hollow rivets at multiple points for hardware components in industries such as automotive parts, precision electronics, sheet metal shafts for movements, and hardware tools.
Features
The body features a humanized design and an attractive appearance.
Huichuan high-performance servo motors and PLC control are precise.
Taiwan TBI high-precision lead screw feed, with a repeatability accuracy of up to 0.02mm.
The Weilun 10-inch high-definition touch screen offers a clear field of vision and is easy to operate.
High-precision and high-flexibility riveting chucks offer better riveting effects.
With up to 50 coordinate riveting points set on the XY axes, multiple products, multiple riveting points, and riveting at different heights can be achieved at once, doubling the efficiency.
Technical parameter
|
Riveting ability |
Solid Φ3-10mm (soft steel) |
|
Z-axis travel |
MAX 80mm |
|
Opening height |
210mm |
|
X-axis travel |
800mm |
|
Y-axis travel |
400mm |
|
Power |
1.0Kw AC220V/50Hz (Rotary motor) 2*1.8Kw AC380V/50Hz (XY-axis motor) 2.4Kw AC380V/50Hz (Z-axis motor) |
|
Maximum working pressure |
30KN(3000kgf) |
|
Area of the mobile workbench |
500*500mm |
|
Overall dimensions |
1380*1680*1890mm(L*W*H) |
|
Net weight |
|
1 Standard exported package: Internal anticollision protection, external export wooden box packaging.
2 Shipping by express, by air, by sea according to customers' requirements to find the most suitable way.
3 Responsible for the damage during the shipping process, will change the damaged part for you for free.
DELIVERY TIME:15-20 days after confirming the order, detail delivery date should be decided according to
production season and order quantity.
