ItemNo :
LITH-DRY200MOQ :
1Place of Origin:
ChinaColor :
optionalPort :
Xiamen PortCompliance:
CEWarranty:
2 yearsDelivery Time:
5 daysEmail :

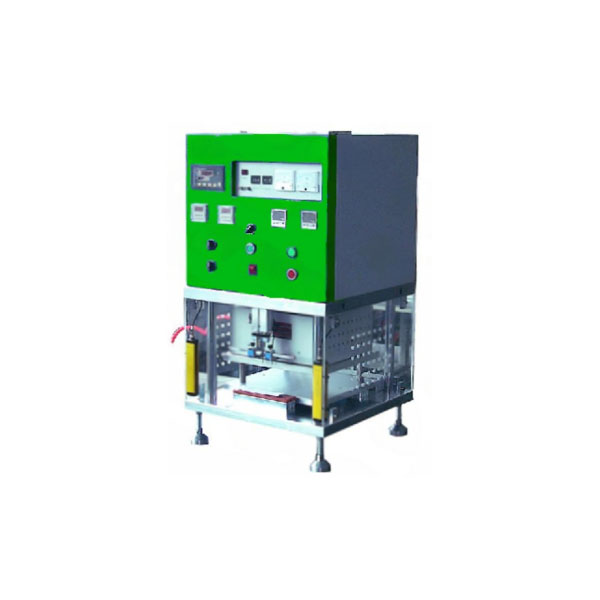

Louis@lithmachine.comPouch Cell Hot Press with Short Circuit Test Function
Application
The Pouch Cell Hot Press Machine is designed for thermal compression forming of battery cells, using heat and pressure to uniformly shape pouch cells, reduce spring-back, decrease short-circuit risk during assembly, and ensure consistent finished thickness. It also includes an insulation resistance tester to detect micro-circuit faults and assess cell safety.
Key Features
· Adjustable heating and pressure controls; both actual and set values are clearly displayed via the LCD touchscreen, enabling precise and intuitive temperature control.
· Parallel upper and lower platens with adjustable pressure (0–900 ±3 kg) via a regulator, suitable for various process requirements.
· Single-station design with high structural stability and reliability.
· Efficient thermal conductivity through high-quality heater platens, reducing energy consumption and improving performance.
· Safety light curtain prevents accidental operation during loading or testing.
· Dual-mode short-circuit testing (manual and automatic) allows quick electrical safety checks.
· Detects leakage current and insulation resistance to evaluate micro-circuit integrity and cell safety.
· Stylish geometric sheet-metal design, compact and visually appealing.
· Dual modes for operation: automatic via electrical control or manual for setup and debugging.
Technical Specifications
|
Parameter |
Specification |
|
Pressure Range |
0–900 kg ±3 kg |
|
Travel Distance |
0–80 mm |
|
Maximum Cell Size |
L200 × W200 × H70 mm |
|
DC Test Voltage |
Adjustable 0–500 V |
|
Max Detectable Leakage Current |
50 µA |
|
Insulation Resistance Range |
Up to 199 MΩ |
|
Test Duration |
0–99 s adjustable |
|
Temperature Accuracy |
±4 °C |
|
Temperature Range |
Room temperature to 130 °C |
|
Weight |
Approx. 180 kg |
|
Power Supply |
AC 220 V / 50 Hz |
PACKAGE:
1 Standard exported package: Internal anticollision protection, external export wooden box packaging.
2 Shipping by express, by air, by sea according to customers' requirements to find the most suitable way.
3 Responsible for the damage during the shipping process, will change the damaged part for you for free.
DELIVERY TIME:15-20 days after confirming the order, detail delivery date should be decided according to
production season and order quantity.
