Louis@lithmachine.comAutomatic Edge Folding Machine for Pouch Cell Manufacturing

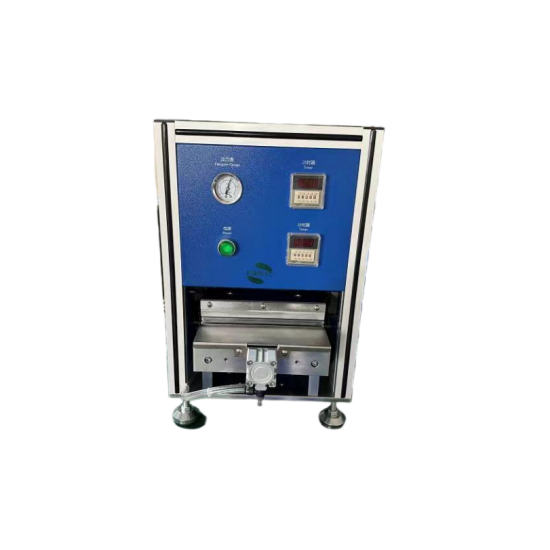

The LITH-ZP200 Pneumatic Pouch Cell Folding Machine is designed for edge folding of aluminum-laminated film used in pouch-type lithium battery packaging, particularly after edge trimming. The operator places the product in position, then activates the folding mechanism via a foot switch, which drives the folding tool with pneumatic force to achieve precise edge shaping.
· Adjustable folding width to meet different battery design requirements.
· Adjustable air pressure and folding speed, customizable to match specific process needs.
· Foot pedal control, offering safe, quick, and user-friendly operation.
· Compact structure made with extruded aluminum frame and powder-coated panels, combining precision and aesthetic design.
|
Parameter |
Specification |
|
Adjustable Folding Width |
Yes |
|
Operating Speed |
Approx. 300 cycles/hour |
|
Folding Blade Length |
200mm |
|
Effective Folding Width |
> 1mm |
|
Power Supply |
AC220V / 50Hz |
|
Compressed Air |
0.5MPa ~ 0.8MPa |
|
Machine Dimensions |
L320mm × W300mm × H420mm |
PACKAGE:
1 Standard exported package: Internal anticollision protection, external export wooden box packaging.
2 Shipping by express, by air, by sea according to customers' requirements to find the most suitable way.
3 Responsible for the damage during the shipping process, will change the damage part for you for free.
DELIVERY TIME:15-20 days after confirming order,detail delivery date should be decided according to production season and order quantity
