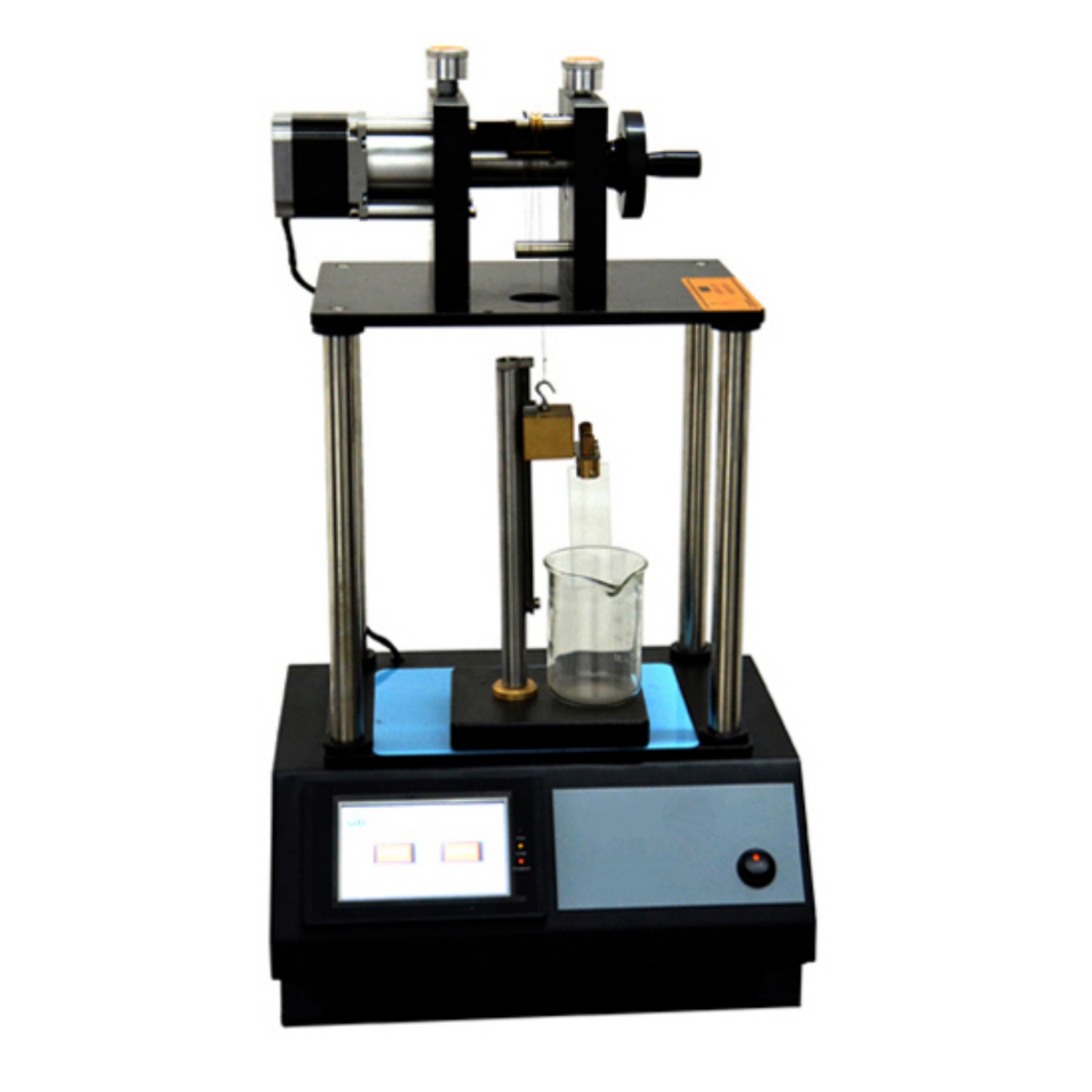

Millimeter Programmable Dip Coater with Touch Screen Digital Controller
The LITH-KJ01Bis a Desktop Programmable Dip Coater featuring a color touch screen controller, designed for R&D laboratories to prepare optical or epitaxial films from liquid solutions. Fully programmable parameters include dipping rate, pulling rate, dwell time, and cycle count. Compatible for use within an Argon (Ar) gas glovebox.
· Adjustable Range: 1–200 mm/min
· Accuracy: ±0.05%
· Optional High-Speed Upgrade: Up to 1000 mm/min (additional cost: $1800)

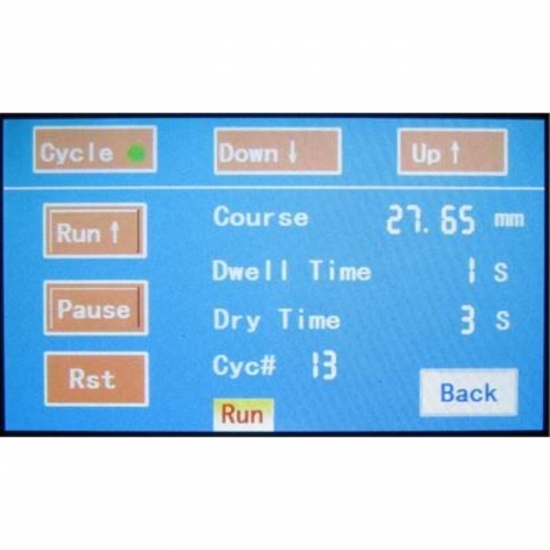

· 6" LCD Touch Screen with programmable settings for:
o Dipping/Pulling Speed: 1–200 mm/min (±0.05%)
o Dipping/Pulling Distance: 75 mm
o Dwell Time: Up to 999 seconds
o Cycle Count: Up to 20 cycles
· Input Voltage: 100–240 VAC (universal adapter included)
· Operating Voltage: DC 24V, 90W max
· Glovebox Compatibility: Suitable for use under Argon (Ar) atmosphere
· Sample Holder:
o Equipped with two screw-adjustable clips
o Slides vertically on dual guide rods
· Beaker Holder:
o Securely holds coating solution containers
· Included Solution Container:
o 150 mL beaker (standard)
· Max. Sample Dimensions: 50 mm (L) × 25 mm (W) × 2.5 mm (T)
· Max. Sample Weight: 250 g
· Drive Motor: Precision stepping motor
· Dimensions (L × W × H): 340 mm × 360 mm × 540 mm
· Standard Certification: CE Marked
· Warranty: 1-year limited warranty with lifetime technical support
· For Optimal Coating Results:
o Pre-treat substrates with a plasma cleaner
o Use ultrasonic dispersion for nanopowders or solution homogenization
o Extension frame available for larger samples
o Compatible with vacuum glove box operation
· Research Applications:
o Fabrication of colloidal self-assembled monolayers (SAMs)
o Thin-film deposition for optical/epitaxial coatings
· Net Weight: 45 lbs (20.4 kg)
· Shipping Weight: 100 lbs (45.4 kg)
|
Item # |
Description |
Qty |
|
1 |
Desktop Dip Coater |
1 |
|
2 |
110/220V AC Power Line (selectable) |
1 |
|
3 |
Screw Sample Holder |
1 |
|
4 |
Beaker Holder with Guide Pillar |
1 |
|
5 |
150 mL Beaker |
1 |
PACKAGE:
1 Standard exported package: Internal anticollision protection, external export wooden box packaging.
2 Shipping by express, by air, by sea according to customers' requirements to find the most suitable way.
3 Responsible for the damage during the shipping process, will change the damaged part for you for free.
DELIVERY TIME:15-20 days after confirming the order, detail delivery date should be decided according to
production season and order quantity.
