Affordable Dip Coater Machine Price With Millimeter-level Precision

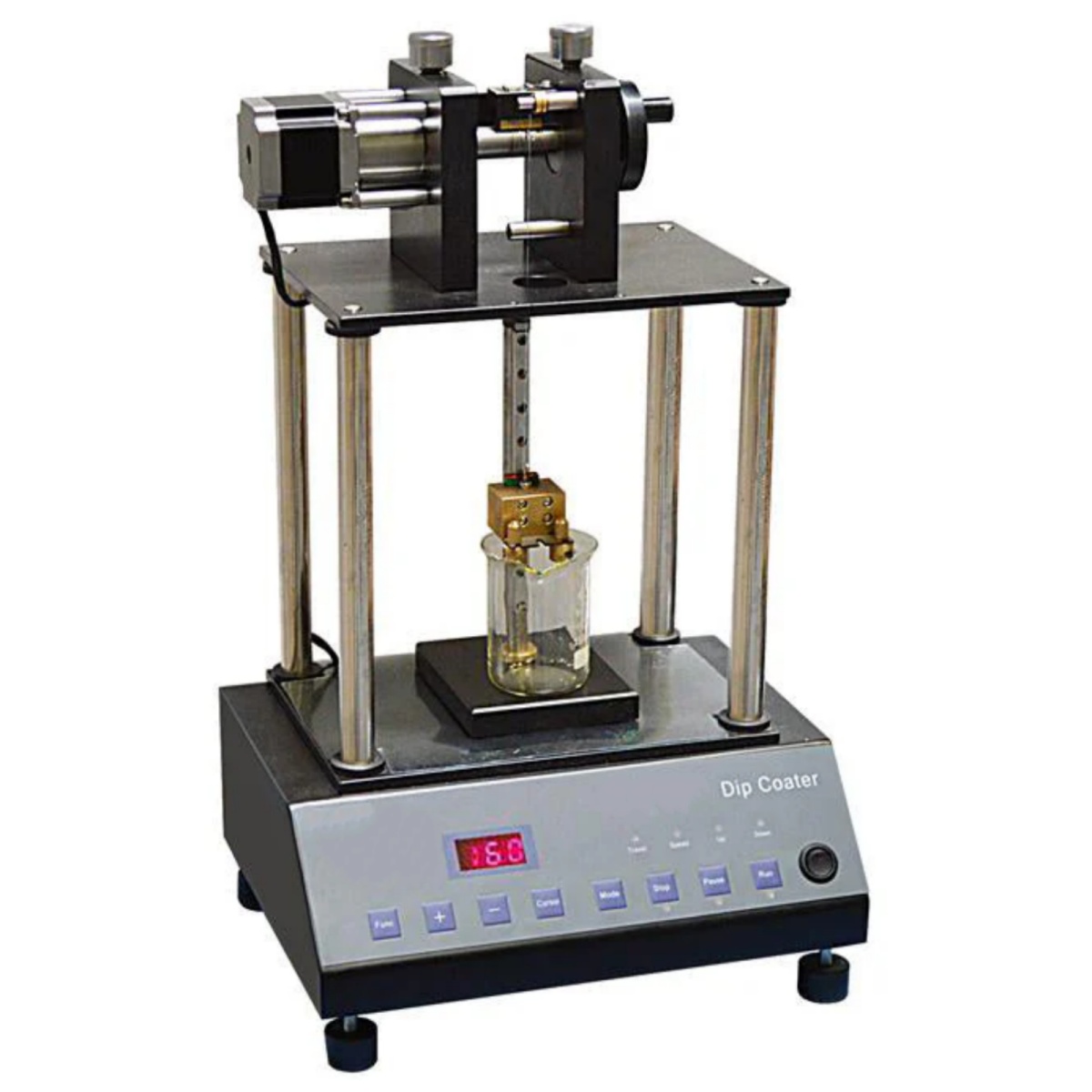

The TMAX-KJ01A Dip Coater is a millimeter-level precision lifting device designed for liquid-phase thin-film deposition research on substrates. This CE-certified equipment is essential for laboratories and research institutions specializing in liquid-phase film growth.
The system features a proprietary high-precision microcontroller for actuator control, allowing:
· Manual adjustment of lifting direction
· Programmable lifting speed (1–200 mm/min) and stroke
· Smooth and precise vertical motion
The TMAX-KJ01A employs wire-guided lifting to immerse samples in liquid-phase coating materials for controlled durations, enabling uniform film deposition. Operation modes include:
· Manual immersion + automatic withdrawal
· Automatic immersion + manual withdrawal
Note:
· Standard operation at room temperature (ambient conditions).
· For heated/thermostatic applications, the TMAX-KJ01B model (with integrated drying chamber) is available to maintain stable process temperatures.
Key Advantages
✔ Compact, space-saving design (320×260×560 mm, ≈18 kg)

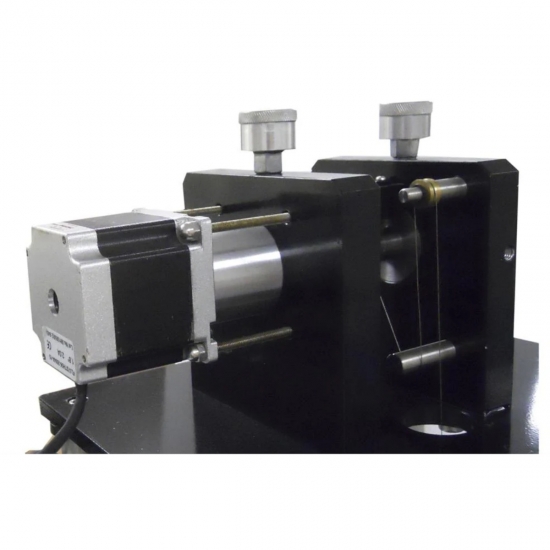

✔ High-precision stepper motor with wire-conduction damping technology
✔ Intuitive operation, ideal for beginners
✔ Cost-effective solution for academic and industrial R&D
|
Category |
Parameter |
|
Electrical |
Input: AC 220V, 50/60Hz, 10A (grounded) |
|
|
Output: DC 24V, 3.75A (included adapter) |
|
|
Power: 50W |
|
Mechanical |
Drive System: High-precision stepper motor |
|
|
Max Speed: 200 mm/min |
|
|
Stroke: 75 mm (sample holder) |
|
|
Max Load: ≤100 g |
|
Process |
Immersion Depth: ≤60 mm |
|
|
Substrate Size: 75×25×2.5 mm (standard) |
|
Environmental |
Operating Temp: 25±15°C |
|
|
Humidity: 55±10% Rh |
Adapter Specifications (Included):
· Input: AC 100–240V, 50/60Hz
· Output: DC 24V, 3.75A
※ Actual device ratings subject to rear label.
Customization Option:
AC 110V, 50/60Hz thermostatic drying chamber (upon request).
|
No. |
Component |
Qty. |
|
1 |
Anti-swing base |
1 set |
|
2 |

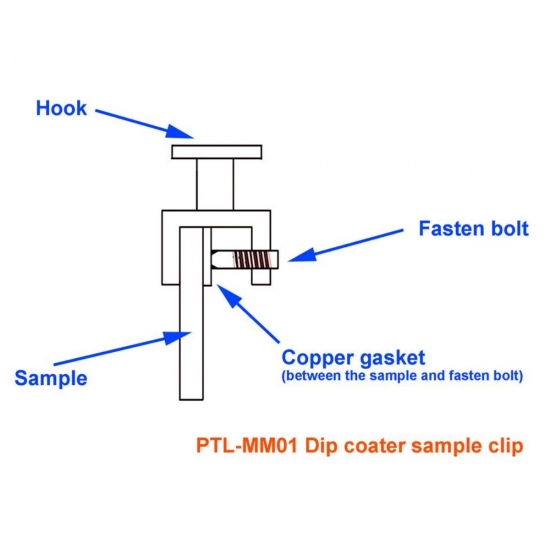

Sample clamp |
1 set |
|
3 |
Material cup |
1 pc |
|
4 |
Lifting wires |
3 pcs |
· Quick-release sample clamp
· Additional lifting wires
· Certification: CE marked
· Typical Users: Universities, research institutes, industrial labs for thin-film R&D
PACKAGE:
1 Standard exported package: Internal anticollision protection, external export wooden box packaging.
2 Shipping by express, by air, by sea according to customers' requirements to find the most suitable way.
3 Responsible for the damage during the shipping process, will change the damaged part for you for free.
DELIVERY TIME:15-20 days after confirming the order, detail delivery date should be decided according to
production season and order quantity.
