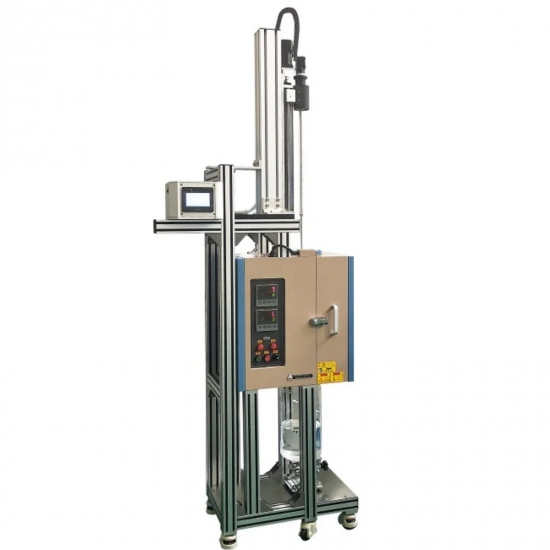

1000C High-Temperature Heated Dip Coating Unit Coater
The LITH-KJ01H10 High-Temperature Dip Coating System is designed for high-temperature (800–1000°C) thin-film deposition. It features three independently controlled temperature zones with adjustable lifting speeds for each stage, driven by a PLC-programmed high-precision stepping motor.

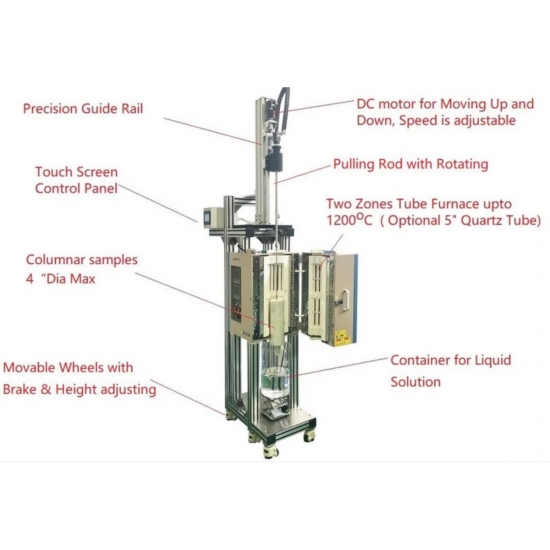

This system is widely used in research involving high-temperature dip coating. The sample is fixed to a lifting wire, lowered into a solution for immersion, then withdrawn into a high-temperature furnace tube for rapid film curing. The furnace can reach up to 1000°C, with standard lifting wires rated for ≤800°C. Special lifting wires (800–1000°C) are available upon request.
The LITH-KJ01H10 is ideal for high-temperature film growth applications, including:
· Ceramic films
· Crystalline films
· Battery material films
· Specialized nanofilms
It supports operation in inert (N₂, Ar) or oxidizing atmospheres and is widely used in universities, research institutes, and industrial laboratories.
· High-temperature capability: Furnace supports up to 1000°C (standard lifting wires rated for ≤800°C; higher-temperature wires require customization).
· Multi-zone control: Three independently adjustable temperature zones, each with customizable lifting speeds.
· Advanced drive system: PLC-controlled high-precision stepping motor with vibration-damping suspension wire technology.
· User-friendly interface: 4.3" color touchscreen for intuitive operation.
· Atmosphere compatibility: Works in inert (N₂, Ar) or oxidizing environments.
|
Category |
Specification |
|
Model |
TMAX-KJ01H10 |
|
Power Supply |
Single-phase AC220V 50/60Hz (dual 10A sockets with grounding, requires 16A circuit breaker) |
|
Environmental Conditions |
Operating temp: 25±15°C, humidity: 55±10% RH |
|
Dip Coating Unit |
|
|
- Drive Motor |
High-precision stepping motor |
|
- Speed Range |
Three-stage programmable: 1–200 mm/min (independent per stage) |
|
- Immersion Time |
1–999 s |
|
- Total Travel Distance |
620 mm (Low-Temp Zone: 236 mm, High-Temp Zone: 150 mm, Cooling Zone: 234 mm) |
|
- Max Immersion Depth |
60 mm |
|
- Max Load Capacity |
≤200 g |
|
- Substrate Dimensions |
75 mm (L) × 25 mm (W) × 1–4 mm (D) |
|
- Display & Control |
4.3" color touchscreen |
|
- Dimensions (W×D×H) |
560 × 470 × 1550 mm |
|
- Weight |
≈50 kg (including furnace) |
|
High-Temperature Furnace |
|
|
- Power Input |
AC220V 50/60Hz |
|
- Rated Power |
1.5 kW |
|
- Max Temperature |
1100°C (rated: 1000°C) |
|
- Recommended Ramp Rate |
10°C/min |
|
- Temperature Accuracy |
±1°C |
|
- Control System |
Multi-segment PID controller (K-type thermocouple) |
|
- Chamber Dimensions |
Φ80 × 330 mm |
|
- Furnace Tube |
Φ50 mm (OD) × Φ45 mm (ID) × 600 mm (L) |
Notes:
1. Standard power adapter: Input AC100–240V 50/60Hz, Output DC24V 3.75A.
2. Customizable AC110V 50/60Hz furnace available upon request.
1. Sample holder – 1 set
2. Solution containers – 2 pcs
3. High-temperature lifting wires (≤800°C) – 3 pcs
1. Specialized lifting fixtures
2. High-temperature lifting wires (800–1000°C)
PACKAGE:
1 Standard exported package: Internal anticollision protection, external export wooden box packaging.
2 Shipping by express, by air, by sea according to customers' requirements to find the most suitable way.
3 Responsible for the damage during the shipping process, will change the damaged part for you for free.
DELIVERY TIME:15-20 days after confirming the order, detail delivery date should be decided according to
production season and order quantity.
