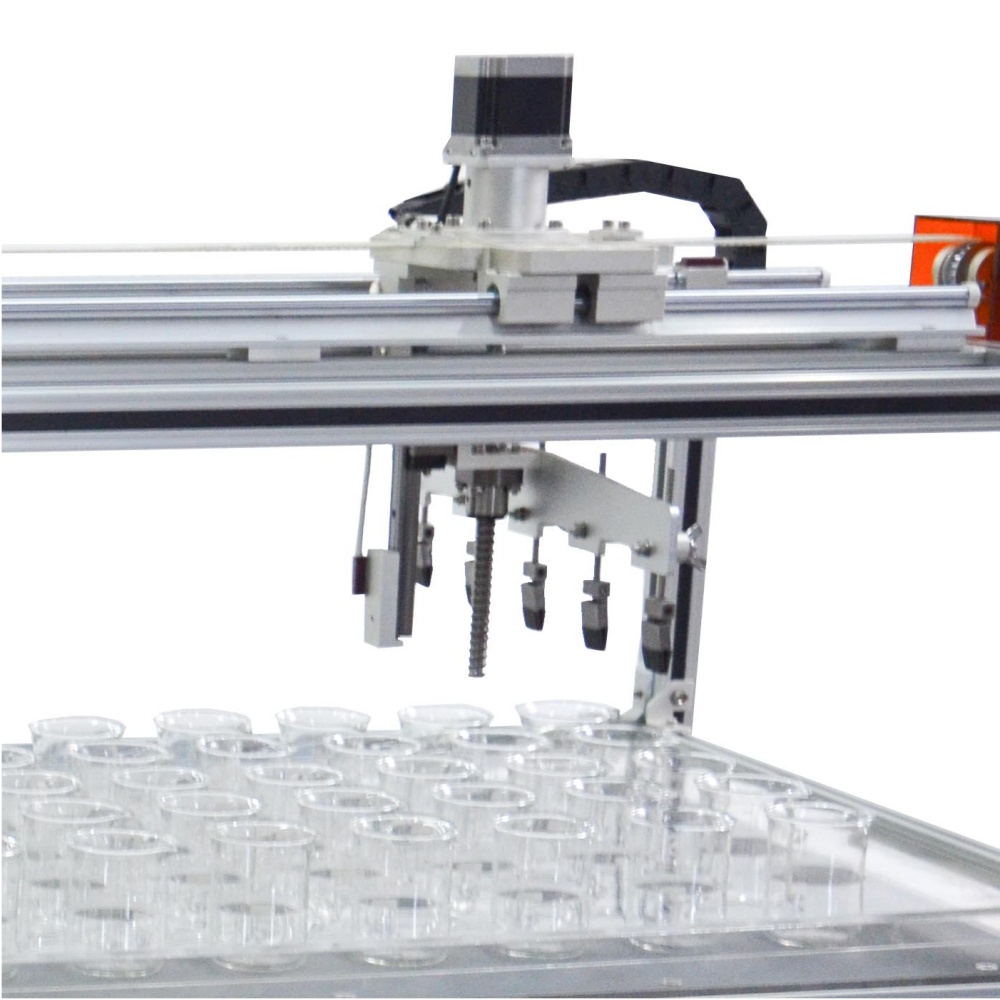

Multi-station Tool Dip Coating Machine Coater For Multi-Layer Depostion
Description: A precision instrument designed for liquid-phase thin-film deposition on substrates. Features smooth vertical lifting, high precision, and programmable control of lifting cycles, immersion time, and repetitions. Compact in size and easy to operate.
Product Overview:
The LITH-KJ08 Dip Coater is a millimeter-scale multi-station precision coating device, specifically designed for research institutions. It is primarily used for preparing multilayer liquid-phase thin-film materials on one or multiple samples in different liquid phases. With its compact structure, user-friendly operation, and portability, it is widely applied in universities, research institutes, and industrial laboratories.
Key Features:
· Multi-sample/Multi-station: Supports simultaneous coating of up to 5 samples in 8 different liquid-phase materials, with a maximum of 999 cycle repetitions (for multilayer coating).
· Independent Parameter Settings: Each of the 8 stations can be configured with unique lifting speed, immersion time, and drying time to accommodate various process requirements.
· User-Friendly Operation: Equipped with a 4.3-inch color touchscreen for intuitive and straightforward control.
· High-Precision Control: PLC-programmed high-precision stepper motor drive, paired with timing belts and ball screws as transmission components, ensures accurate movement.
· Space-Efficient Design: Compact and cost-effective, saving valuable laboratory space.
Technical Specifications:
|
Parameter |
Specification |
|
Product Name |
LITH-KJ08 Dip Coater |
|
Model |
LITH-KJ08 |
|
Installation Requirements |
1. Power Supply: AC220V 50/60Hz, 10A three-pole socket (national standard), with proper grounding. 2. Environment: Temperature 25°C ±15°C, humidity 55%Rh ±10%Rh; dust-free, vibration-free, and free from flammable, explosive, or corrosive gases. |
|
Main Parameters |
1. Operating Voltage: DC24V 5A (standard: AC100240V power adapter) 2. Total Power: 100W 3. Type: Program-controlled, room-temperature operation 4. Drive Motor: High-precision stepper motor 5. Speed Range: -X-axis (transverse): 5005000 mm/min - Z-axis (lifting): 1200 mm/min 6. Dwell Time: 1999 s 7. Drying Time: 1999 s 8. Lifting Stroke: 165 mm 9. Cycle Repetitions: 1999 times 10. Sample Stations: 5 (holds 15 sample substrates) 11. Immersion Stations: 8 groups (each with 5 liquid cup stations) 12. Max. Immersion Depth: ≤65 mm 13. Substrate Dimensions (L × W × Thickness): 75mm × 25mm × 2.5mm 14. Max. Load Capacity: ≤250 g 15. Cup Specification (beaker): 100 ml 16. Display & Control: 4.3-inch color touchscreen < 17. Product Dimensions & Weight: - Dimensions: 900mm (L) × 520mm (W) × 540mm (H) - Weight: ≈20 kg |
Note: The standard power adapter specifications are:
· Input: AC100-240V 50/60Hz
· Output: DC24V 5A
· Actual power supply parameters are subject to the label on the rear of the device.
Standard Accessories:
|
No. |
Name |
Quantity |
|
1 |
Cup Holder Plate |
1 pc |
|
2 |
Clip Holder Plate |
1 pc |
|
3 |
Sample Cups |
40 pcs |
|
4 |
Clips |
5 pcs |
|
5 |
Protective Covers |
2 pcs |
Optional Accessories:
|
No. |
Name |
Category |
|
1 |
Custom-sized sample cups and cup holders |
(Optional) |
|
2 |
Constant-Temperature Water Bath (Power: 800W; Temp. Range: RT-70°C; Accuracy: ±1°C; Capacity: 25L) |
(Optional) |
PACKAGE:
1 Standard exported package: Internal anticollision protection, external export wooden box packaging.
2 Shipping by express, by air, by sea according to customers' requirements to find the most suitable way.
3 Responsible for the damage during the shipping process, will change the damaged part for you for free.
DELIVERY TIME:15-20 days after confirming the order, detail delivery date should be decided according to
production season and order quantity.
