Lab Glove Box With Vacuum Spin Coater Instrument O₂/H₂O <1ppm
· Purpose: Designed for preparing new materials (e.g., perovskite solar cells) in an O₂/H₂O-free environment (<1 ppm).
· Recessed Box: Bottom chamber for spin coater or small vertical equipment.
· Working Voltage: 110VAC or 220VAC, 50/60Hz, Single Phase
· Power Consumption: 2700W
· Window: Openable left-front panel (8 mm tempered glass).
· Dimensions: 2400mm (L) × 800mm (W) × 930mm (H).
· Material: Stainless Steel 304 casing.
· Safety Glass: 12mm double-layer laminated with corrosion protection.
· Lighting: Built-in fluorescent lamp.
· Shelves: Two slidable shelves (300mm L × 250mm W × 300mm H).
· Purification System: Maintains O₂/H₂O <1 ppm.
· Automation: Auto purging/regenerating functions for rapid O₂/H₂O removal.

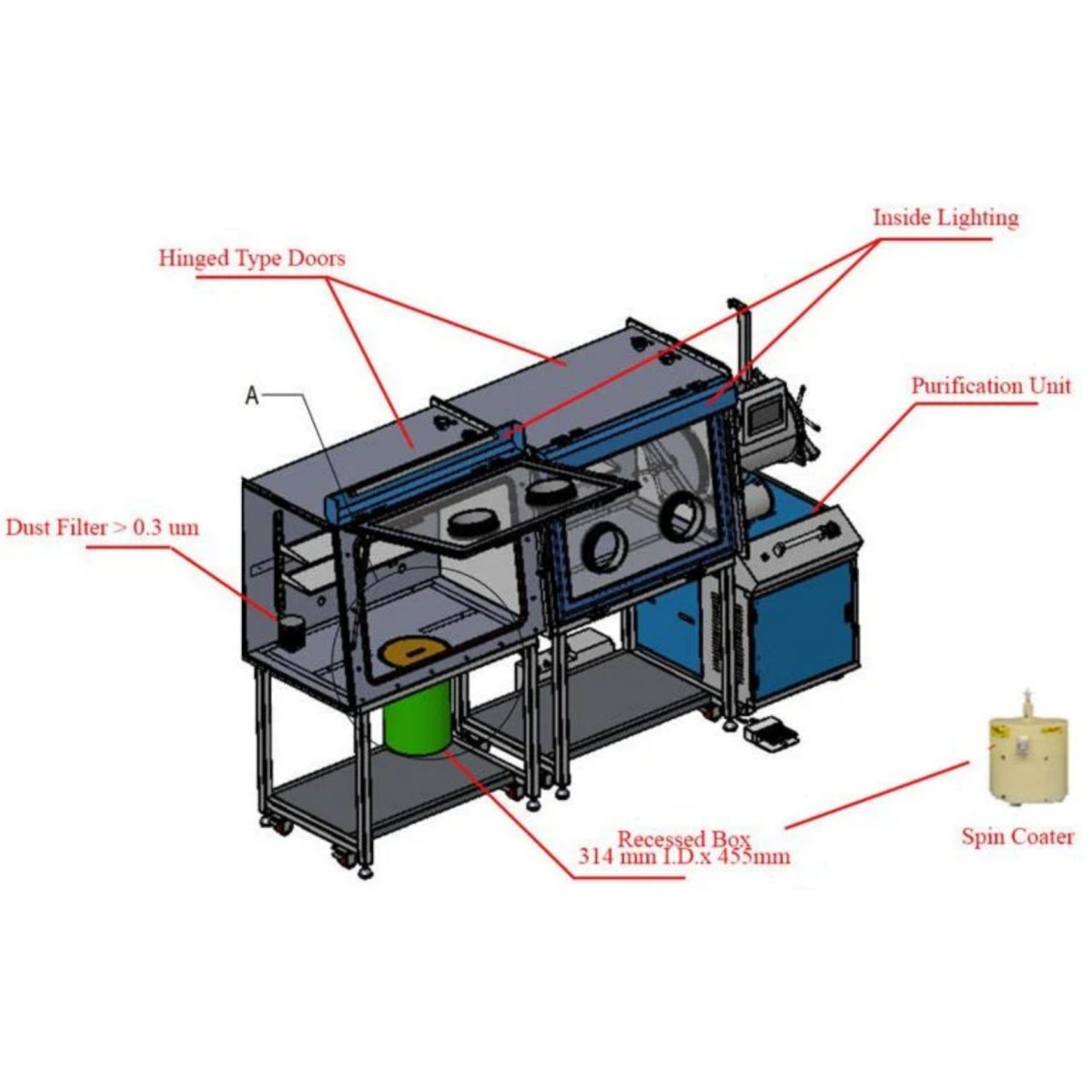

· Recessed Box:
o Round design (314mm ID × 455mm depth) on left side.
o Includes two feed-throughs for power/vacuum pump connections.
· Material: Polypropylene (PP) case/spin disk (corrosion-resistant).
· Placement: Housed in recessed box with cover; control box/vacuum pump external.
· Filter: Included to prevent pump contamination.
· Chamber Diameter: 150mm.
· Vacuum Chuck: Φ100mm (holds substrates up to 6" diameter).
o Note: For samples <10mm, rubber cup (extra cost) or blue tape (irregular shapes) recommended.
· Spin Speed: 500–8000 RPM (programmable, 6-segment control).
1. Heating Cover:
o Digital temperature control (up to 120°C).
o Enables in-situ sample drying during/after coating
2. Precision Pipette: 20–200μL for improved coating.
3. Plasma Cleaner: Enhances substrate surface treatment.
4. Heatable Antechamber:
o Max 200°C; DN385×588mm (L).
o Large left/right ante-chambers available on request.
· Product Dimensions: 3115mm (L) × 830mm (W) × 1830mm (H).
· Shipping:
o Pallets: 2 (total weight: 1800 lb).
o Pallet 1: 86" × 41" × 84".
o Pallet 2: 86" × 41" × 83".
· Coverage: 1-year limited warranty with lifetime support.
o Exclusions: Rust/improper maintenance damage, consumable gloves.
PACKAGE:
1 Standard exported package: Internal anticollision protection, external export wooden box packaging.
2 Shipping by express, by air, by sea according to customers' requirements to find the most suitable way.
3 Responsible for the damage during the shipping process, will change the damaged part for you for free.
DELIVERY TIME:15-20 days after confirming the order, detail delivery date should be decided according to
production season and order quantity.
