ItemNo :
LITH-XZY60MOQ :
1Compliance:
Warranty:
2 yearsDelivery Time:
5 daysEmail :
Louis@lithmachine.comJelly Roll Flattening Machine for Large Cylindrical Cells and Supercapacitor Production

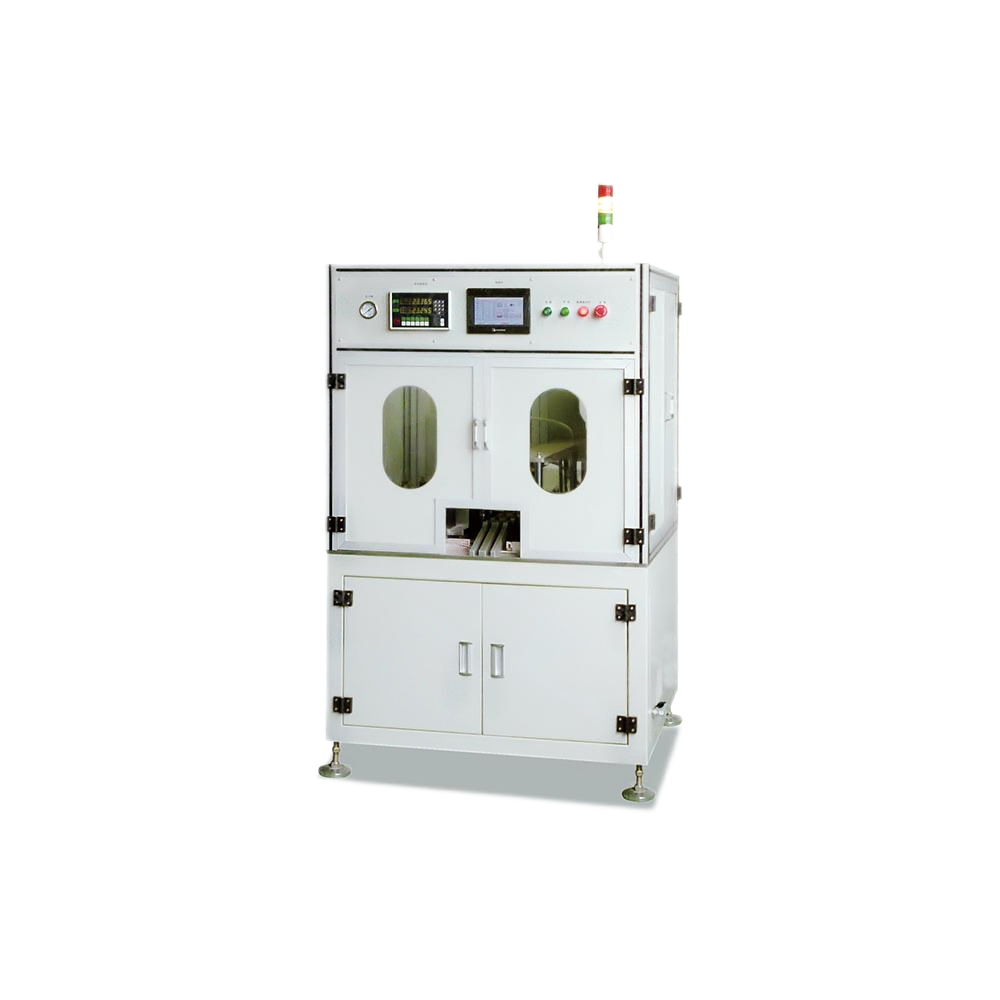

The LITH-XZY60 is a precision battery flattening machine designed for large cylindrical batteries and supercapacitor cells. It flattens both the positive and negative sides to ensure a compact and even surface, facilitating firm laser welding to the upper and lower current collectors. This is a patented product developed in-house to meet the precision and automation needs of modern battery production.
· Segmented flattening head design aligns aluminum foil substrate in one direction, enhancing weldability with the current collectors.
· Automated process flow: Includes automatic feeding, first and second pre-flattening, final flattening, short-circuit testing, and discharge.
· Grating ruler detection and display for precise and intuitive pressure adjustment.
· PLC control and HMI interface, enabling easy automation and user-friendly operation.
· High-precision mold design, ensuring accurate and uniform cell shaping.
· Stylish and functional design, with an aluminum alloy enclosure and geometric structure, combining aesthetics with operational convenience.
|
Parameter |
Specification |
|
Applicable Products |
Cylindrical batteries and supercapacitors (customizable) |
|
Air Supply |
0.5–0.7MPa (adjustable) |
|
Power Supply |
220V / 50Hz |
|
Power Consumption |
0.5KW |
|
Machine Dimensions |
L1000mm × W800mm × H1600mm |
|
Machine Weight |
800kg |
Pouch Cell Process: Tube Furnace/ Muffle Furnace→ Vacuum Mixing→ Electrode Coating→ Roll press→ Electrode Cutting→ Vacuum Drying→ Cases Forming→ Top&Side Sealing→ Electrolyte Filling→ Vacuum Sealing→ Battery Analyzer
For the pouch cell assembly, we also recommend you the following items:
|
|
|
|
|
|
|
|
|
|
PACKAGE:
1 Standard exported package: Internal anticollision protection, external export wooden box packaging.
2 Shipping by express, by air, by sea according to customers' requirements to find the most suitable way.
3 Responsible for the damage during the shipping process, will change the damaged part for you for free.
DELIVERY TIME:15-20 days after confirming the order, detail delivery date should be decided according to
production season and order quantity.
