ItemNo :
LITH-PJB5LMOQ :
1Warranty:
2 yearsDelivery Time:
5 daysEmail :
Louis@lithmachine.com

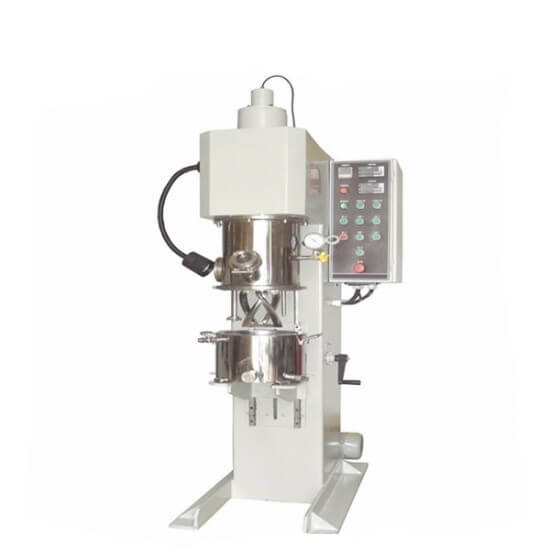

1. LITH-PJB5L is a CE Certified Vacuum Planetary Mixer with 5 liters containers and complete accessories for immediate use. The vacuum mixer produces multi-movements during stirring, including, revolution and rotation, double stirring shafts, single scattered shaft & scraping the walls to make slurry gas-bubble free and with extreme uniformity under vacuum.
2. A temperature-controlled water circulator is included to make container working at the temperature range from 50ºC to 35ºC directly and water cold stainless steel tank can promise high efficiency in mixing. LITH-PJB5Lis excellent for preparing LiCoO3, LiFePO4, phosphors and ceramic slurry with excellent results in dispersion and uniformity.
SPECIFICATIONS:
|
Power Supply |
1- 3 phase, AC 380V 50Hz 2- Total power: 4kW |
|
Revolution Speed |
Mian shaft speed: 0 - 51 rpm |
|
Vacuum |
1- The vacuum pump: 0.37kW built in 2- The vacuum degree: -0.098MPa |
|
Lift Motor |
Lifting Motor is built in ( 370W) |
|
Bucket |
1- Dimensions: Dia.250mm * H.150mm 2- Optional Capacity: 5 Liter 3- Water cooling jacket 4- Temperature monitors and over-temperature alarm |
|
Beater |
1- Tolerance of beater and bottom: 2-4 mm 2- Tolerance of beater and bucket wall: 2-5mm 3- Tolerance of two beaters: 3-8mm 4- Made of SS 304 |
|
Water Recirculating Chiller |
One Digital Temperature Controlled Recirculating Water Chiller |
|
Dimensions |
1200x700x1800 mm |
|
Compliance |
CE Certified |
|
Warranty |
One years limited warranty with lifetime technical support |
|
Net Weight |
420kg |
PACKAGE:
1 Standard exported package: Internal anticollision protection, external export wooden box packaging.
2 Shipping by express, by air, by sea according to customers' requirements to find the most suitable way.
3 Responsible for the damage during the shipping process, will change the damaged part for you for free.
DELIVERY TIME:15-20 days after confirming the order, detail delivery date should be decided according to
production season and order quantity.
