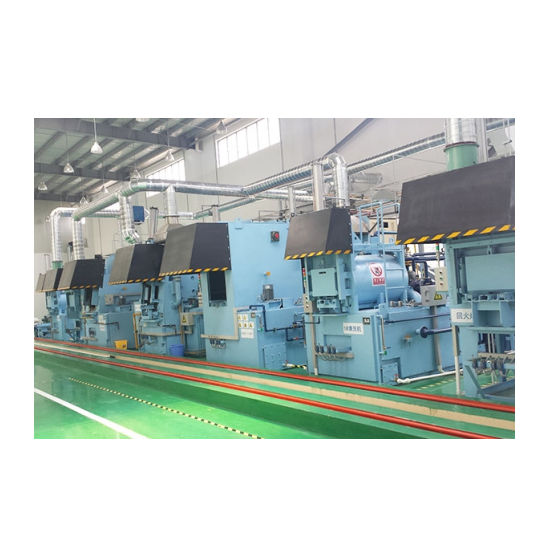

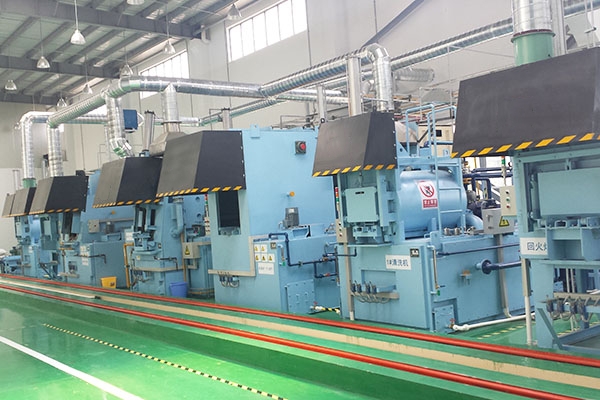

Industrial 950C Multifunctional Furnace With Optional Carbuizing Atmosphere Quenching Normalizing Function

ItemNo :
LITH-SHQB
MOQ :
1
Compliance:
CE
Warranty:
2 years
Delivery Time:
5 days

Email :

Louis@lithmachine.com

Whatsapp :

+86 18559646958

Wechat :

18659217588

Contact Now

Product Details

Industrial 950C Multifunctional Furnace With Optional Carbuizing Atmosphere Quenching Normalizing Function

Structural Form

Single-door charging/discharging (Type F with slow cooling structure)

Application Scope

Carburizing, carbonitriding, protective atmosphere quenching, normalizing, etc.

Operating Temperature

750℃ ~ 950℃

Main Features

The heating chamber is equipped with a combined silicon carbide flow-guide muffle, enabling forced circulation of furnace atmosphere to ensure uniform temperature and atmosphere distribution. The high-load-bearing flat-bottom silicon carbide furnace bottom plate greatly reduces deformation and wear of the material trays and extends their service life.
Dual-channel program controller for temperature and carbon potential is adopted to automatically control the temperature and carbon potential inside the furnace. The heating chamber is fitted with high-power heaters, whose power is controlled by an intelligent silicon controlled rectifier (SCR) power regulator. Transformers are used for voltage reduction to prolong the service life of the heaters.
An explosion-proof device is installed on the top of the quenching chamber, which significantly improves the safety performance of the equipment.
High-power, large-flow water-cooled split-type circulating fan assembly. The motor and fan shaft are driven by a belt, which enhances the cooling effect of the fan, extends the service life of the motor, and reduces maintenance costs.
Four symmetrical quenching oil bath agitators driven by variable-frequency motors ensure more uniform cooling. The adjustable motor speed meets the requirements for quenching deformation control of workpieces.

Technical Specifications

Model	Effective Loading Space (L × W × H) mm	Load Capacity (kg)	Max. Heating Power (kW)	Quench Tank Volume (L)	Shipping Weight (kg)
Single-door Charging/Discharging	(L × W × H) mm	(kg)	(kW)	(L)	(kg)
SHQB-06	1200 × 600 × 600	600	90	5000	10000
SHQB-10	1200 × 760 × 800	1000	132	8000	13000
SHQB-15	1200 × 910 × 910	1500	149	10000	18000

PACKAGE:

1 Standard exported package: Internal anticollision protection, external export wooden box packaging.

2 Shipping by express, by air, by sea according to customers' requirements to find the most suitable way.

3 Responsible for the damage during the shipping process, will change the damaged part for you for free.

DELIVERY TIME:15-20 days after confirming the order, detail delivery date should be decided according to

production season and order quantity.
