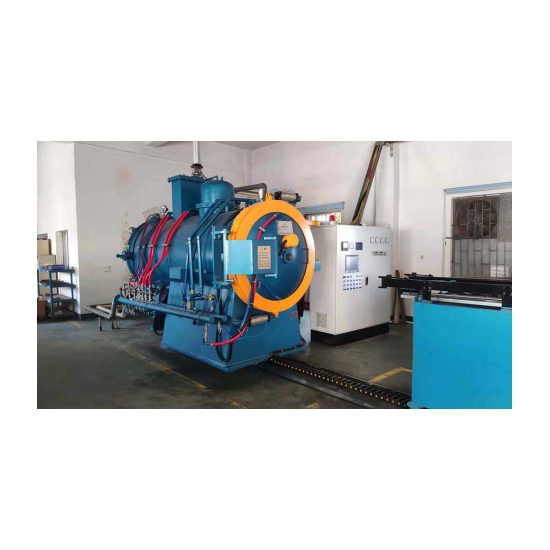

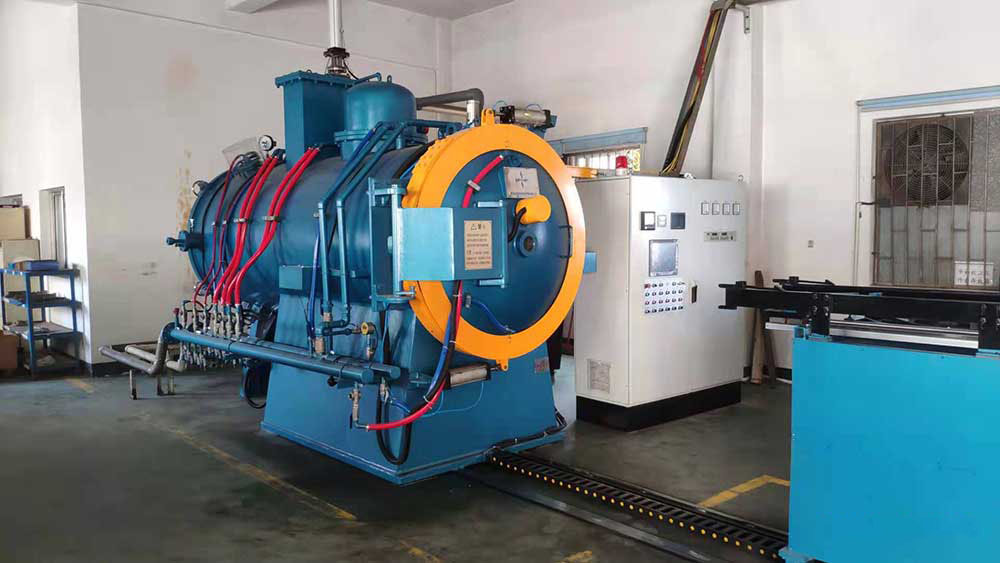

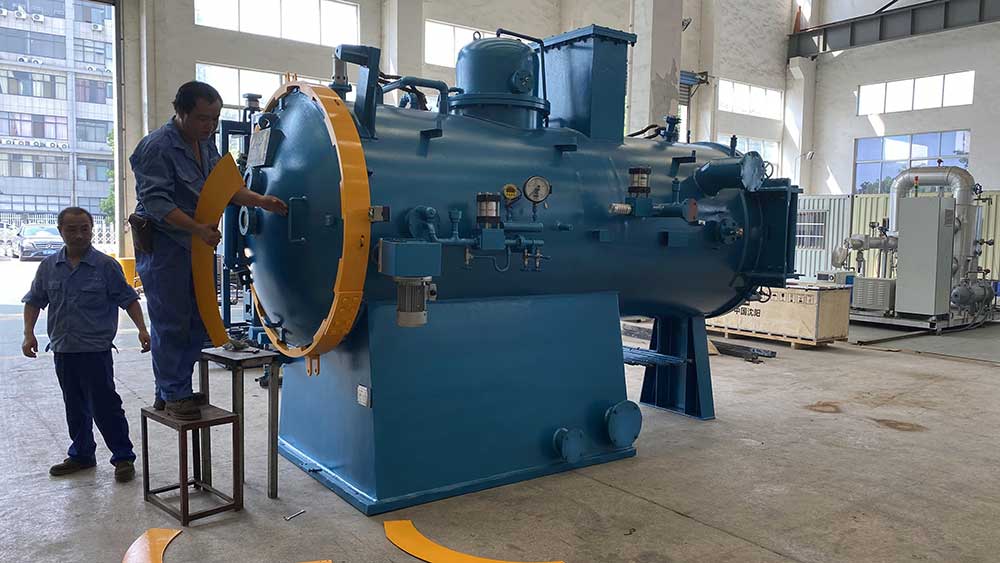

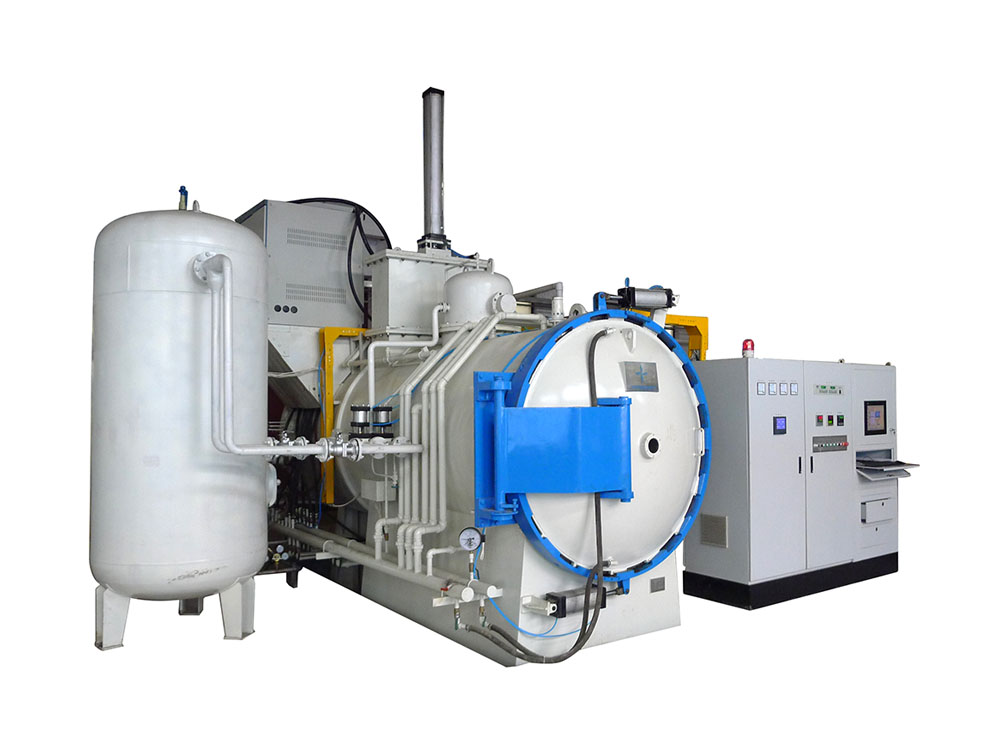

5 daysIndustrial 1320C 600L Vacuum Carburizing Furnace With Double Chamber
Introduction
The ZYQ2-ST series double-chamber vacuum carburizing furnace is a dual-chamber oil/gas quenching vacuum furnace with low-pressure carburizing function. It is mainly used for vacuum quenching of tool steel, die steel, bearing steel, spring steel, as well as vacuum carburizing and quenching heat treatment of low-carbon alloy steel parts such as 20CrMnTi and 20# steel.
Control System: Industrial computer system, fully automatic (or manual) control for quenching and carburizing processes.
Process Media: Acetylene for carburizing, high-purity nitrogen for diffusion.
Optional Quenching Modes: Dual-chamber gas quenching, dual-chamber oil quenching, or three-chamber oil/gas quenching.
Advantages
Typical Application Cases
1. Diesel Engine Nozzle: Acetylene Vacuum Carburizing + Gas Quenching
Material: Low-alloy Cr-Ni steel, requiring uniform carburizing
Equipment: Double-chamber vacuum gas-quenching carburizing furnace
Process Parameters: Carburizing at 910°C, then quenching at 860°C with nitrogen at 6–10 bar pressure, by tempering at 170°C
Results:
Surface hardness: HV1760, core hardness: HV1450
Smooth hardness gradient in the carburized layer
Case depth: 0.6 mm, with a depth difference of only 0.1 mm between inner and outer sections of the nozzle
Clean, bright parts after gas quenching, no cleaning required
Eliminates the internal oxidation common in conventional gas carburizing
2. Powder Metallurgy Gear: Acetylene Vacuum Carburizing + Oil Quenching
Material: Cr-Mo steel with 0.35% C and 0.5% Mn
Technical Requirements: Surface hardness > HV1700, carbon content at gear periphery = 1.0%, case depth = 0.35 mm
Process Parameters: Carburizing at 900°C for ~70 minutes, oil quenching, tempering at 160°C
Results:
Surface hardness: HV1780, core hardness: HV1300
Effective case depth: 0.4 mm
Specification
|
Model |
Effective Zone (mm) |
Loading Capacity (kg) |
Temperature Uniformity (°C) |
Pressure Rise Rate (Pa/h) |
Max. Temperature (°C) |
Heating Power (kW) |
Ultimate Vacuum (Pa) |
Gas Cooling Pressure (bar) |
|
ZYQ2-40ST |
450×300×300 |
80 |
±5 |
0.5 |
1320 |
40 |
4×10⁻¹ |
2 |
|
ZYQ2-65ST |
600×400×400 |
150 |
±5 |
0.5 |
1320 |
80 |
4×10⁻¹ |
2 |
|
ZYQ2-80ST |
700×500×500 |
250 |
±5 |
0.5 |
1320 |
120 |
4×10⁻¹ |
2 |
|
ZYQ2-150ST |
900×700×600 |
500 |
±5 |
0.5 |
1320 |
150 |
4×10⁻¹ |
2 |
|
ZQ2-150ST |
900×700×600 |
500 |
±5 |
0.5 |
1320 |
240 |
4×10⁻¹ |
6, 10, 12 |
|
ZQ2-220ST |
1200×800×700 |
800 |
±5 |
0.5 |
1320 |
300 |
4×10⁻¹ |
6, 10, 12 |
PACKAGE:
1 Standard exported package: Internal anticollision protection, external export wooden box packaging.
2 Shipping by express, by air, by sea according to customers' requirements to find the most suitable way.
3 Responsible for the damage during the shipping process, will change the damaged part for you for free.
DELIVERY TIME:15-20 days after confirming the order, detail delivery date should be decided according to
production season and order quantity.
