Industrial 2300C Horizontal Vacuum Atmosphere Bright Annealing Furnace

ItemNo :
LITH-HVA-557S
MOQ :
1
Compliance:
CE
Warranty:
2 years
Delivery Time:
5 days

Email :

Louis@lithmachine.com

Whatsapp :

+86 18559646958

Wechat :

18659217588

Contact Now

Product Details

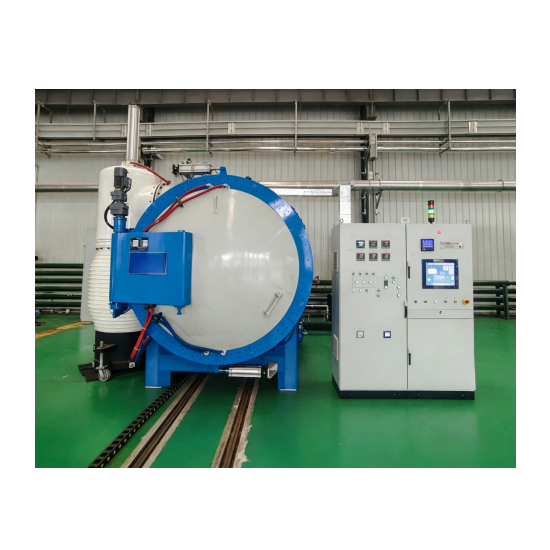

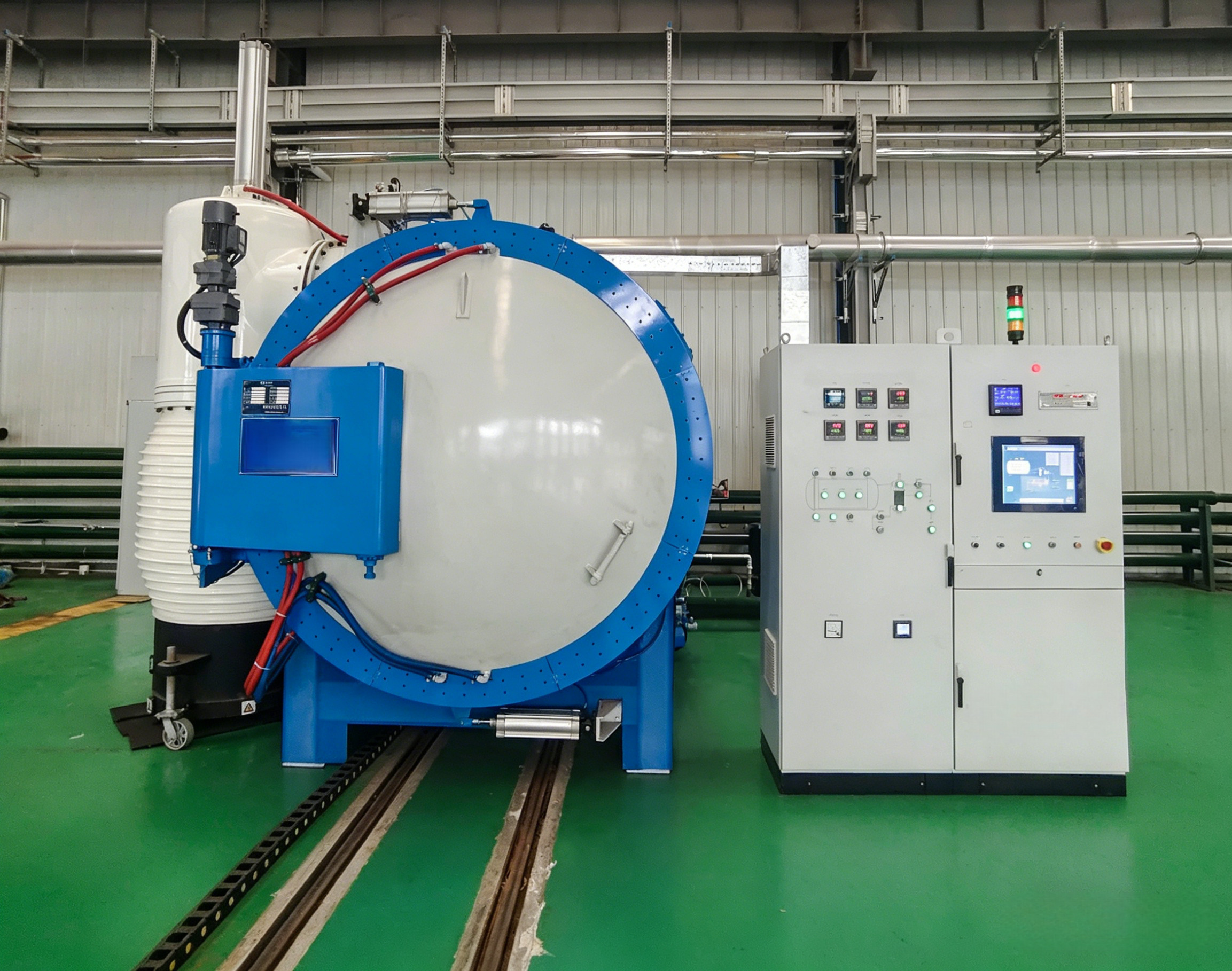

Industrial 2300C Horizontal Vacuum Atmosphere Bright Annealing Furnace

Product Description

Horizontal single-chamber vacuum annealing furnace is mainly used for bright annealing of tool steel, die steel, high-speed steel, ultra-high strength steel, magnetic materials, stainless steel, non-ferrous metals and other materials.

Application Scope

Tool steel, die steel, high-speed steel, ultra-high strength steel, magnetic materials, stainless steel, non-ferrous metals and other materials.

Technical Feature

The furnace adopts horizontal, single-chamber and horizontal charging structure; the door opening mode can be customized according to user requirements.
The furnace chamber is designed with modular optimization, ensuring excellent temperature uniformity.
Full-metal thermal insulation shields adopt back insulation technology.
Vacuum atmospheres including Ar and H₂ are available for heating process.

Specification

Parameters / Model	HVA-335S	HVA-446S	HVA-557S	HVA-669S	HVA-7711S	HVA-8812S	HVA-9915S
Effective Hot Zone W×H×L (mm)	300×300×500	400×400×600	500×500×700	600×600×900	700×700×1100	800×800×1200	900×900×1500
Loading Weight (kg)	75	250	400	600	1000	1200	1500
Heating Power (kW)	60	90	120	180	270	360	480
Max. Temperature (°C)	1350/1700/2300	1350/1700/2300	1350/1700/2300	1350/1700/2300	1350/1700/2300	1350/1700/2300	1350/1700/2300
Temperature Uniformity (°C)	±5	±5	±5	±5	±5	±5	±5
Vacuum Degree (Pa)	4×10⁻¹	4×10⁻¹	4×10⁻¹	4×10⁻¹	4×10⁻¹	4×10⁻¹	4×10⁻¹
Vacuum Degree (Pa)	4×10⁻³/6×10⁻⁴	4×10⁻³/6×10⁻⁴	4×10⁻³/6×10⁻⁴	4×10⁻³/6×10⁻⁴	4×10⁻³/6×10⁻⁴	4×10⁻³/6×10⁻⁴	4×10⁻³/6×10⁻⁴
Pressure Rise Rate (Pa/h)	≤0.26	≤0.26	≤0.26	≤0.26	≤0.26	≤0.26	≤0.26
Pressure Rise Rate (Pa/h)	≤0.67	≤0.67	≤0.67	≤0.67	≤0.67	≤0.67	≤0.67
Gas Quenching Pressure (bar)	2	2	2	2	2	2	2

Note: The above parameters can be adjusted according to process requirements and shall not be regarded as acceptance criteria. The final specifications shall be subject to the technical proposal and agreement.

Configuration Options

Furnace door opening mode: rotary type, side-opening type, vertical lifting type

Furnace chamber: graphite heating element with graphite felt composite shield; molybdenum heating element with full-metal thermal insulation shield

Vacuum pump system & vacuum gauge: imported, high-quality domestic

Vacuum level: high vacuum, medium vacuum

PLC: Siemens, Omron, Mitsubishi

Temperature controller: Shimaden, Eurotherm, Honeywell

Thermocouple: Type K, Type N, Type S

Recorder: paper recorder, paperless recorder

HMI: mimic panel, computer touch screen

Electrical components: high-quality domestic, Schneider, Siemens

PACKAGE:

1 Standard exported package: Internal anticollision protection, external export wooden box packaging.

2 Shipping by express, by air, by sea according to customers' requirements to find the most suitable way.

3 Responsible for the damage during the shipping process, will change the damaged part for you for free.

DELIVERY TIME:15-20 days after confirming the order, detail delivery date should be decided according to

production season and order quantity.
