Hot Press and Formation Equipment for Lithium Pouch Battery

I. Equipment Overview

1. Function (Principle)

This equipment is primarily used for the formation of polymer battery cells under high-temperature and pressure conditions. It helps to form a denser SEI film, enhance capacity utilization, and improve capacity consistency. The system supports large current charging, which shortens formation time and reduces the battery production cycle.

The machine integrates the hot press fixture and formation system into one unit. It consists of a 128-channel formation power supply and one set of fixture.

2. Main Functions

The equipment is composed of six major systems: temperature control, over/under-temperature alarm, over/under-voltage alarm, pressure control, formation cabinet system, and fixture mechanism.

It features: Independent temperature control for each board layer, pressure control, charge/discharge functions, overcharge/discharge protection, reliable contact between battery tabs and contact points, data connectivity, data storage upon process completion, voltage sorting after charging, capacity sorting after discharging, and smoke alarm system.

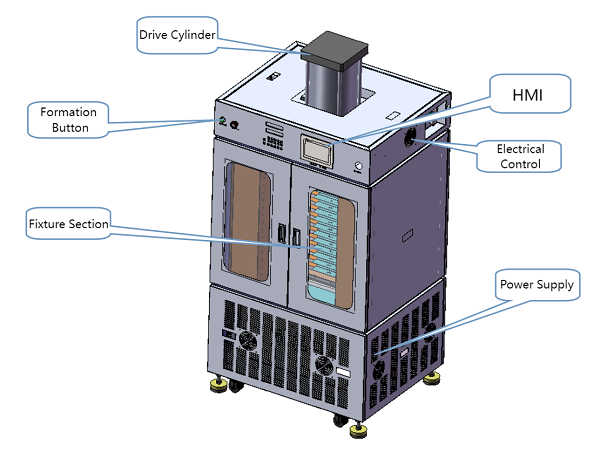

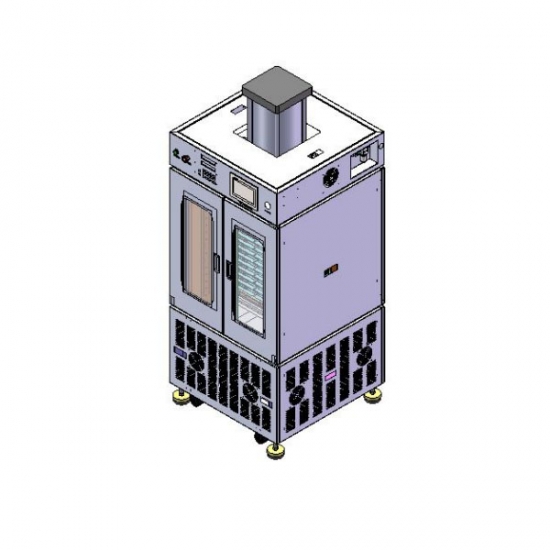

3. Equipment Structure

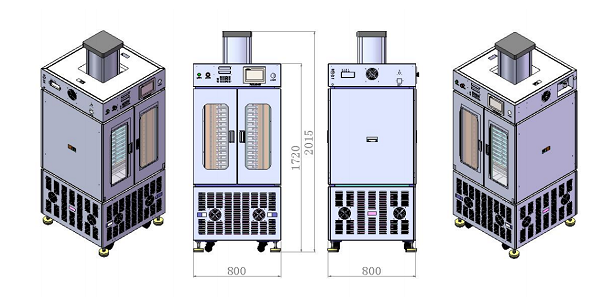

4. Fixture Structure and Overall Dimensions (for reference)

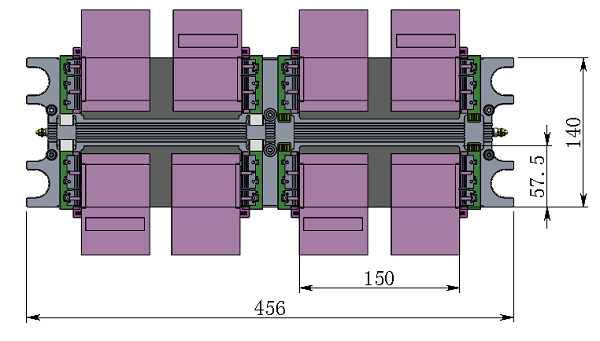

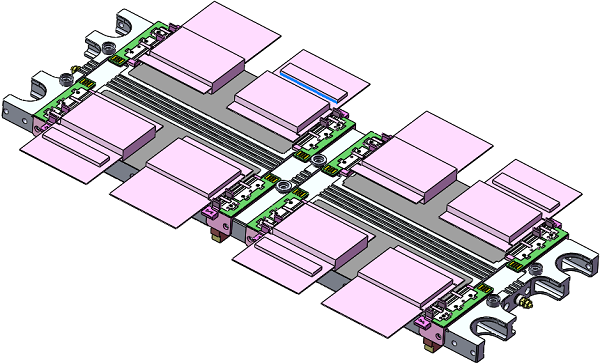

5. Battery Placement

（8 Cells per Layer ）

（Airbag on Outer Side）

6. Operating Procedure

Power On → Manually open cabinet door → Insert batteries into fixture A → Set parameters for fixture A → Fixture A presses down and starts process → Remove batteries manually after fixture A finishes...

7. Equipment Features

1. Compatible with cell thicknesses from 2.5–9 mm without needing fixture adjustments or tab block replacement

2. Fixture aluminum plates are 17 mm thick grid-structured lightweight aluminum, offering good strength and no deformation

II. Technical Specifications

General Parameters

No.	Parameter	Specification	Description
1	Heating Method	Built-in heating tube	Fire-resistant, corrosion-resistant
2	Temperature Control	Independent control for each board layer	One-touch setting via touchscreen
3	Plate Structure	Grid aluminum with cold press lamination	Corrosion-resistant
4	Heating Time to 40°C	15–20 minutes	Target temp: 65°C
5	Temperature Range	Room temp to 85°C	±2°C accuracy
6	Pressure Range	80–1800 KG	Cylinder diameter: 200 mm
7	Cylinder Movement	Top-down compression	Vertical downward pressure
8	Weight Reduction	Hollow aluminum plate	-
9	Pressure Accuracy	Top & bottom layers: ≤±15KG	With dual-stage load reduction
10	Operation Mode	Independent fixture step execution	Supports one battery type at a time
11	Pressure Input	Enter cell size & process via touchscreen	Auto-calculates pressure & executes
12	Layer Spacing	22 mm	Easy operation
13	Contact Design	Gold-plated copper spring contacts	-
14	Tab Block	Teflon injection-molded	Flame retardant, corrosion-resistant
15	Channels	128	Controlled via host software
16	Voltage Output Range	DC 20 mV – 4990 mV	-
17	Voltage Accuracy	±0.1%FS ±0.1%RD, 1mV resolution	-
18	Charge/Discharge Current	DC 5 – 500 mA	-
19	Cut-off Current	DC 1 – 500 mA	-
20	Current Accuracy	±0.1%FS ±0.1%RD, 1mA resolution	-
21	Step Count (per cycle)	1–32 steps	-
22	Voltage Qualification Rate	≥98%	Except non-equipment factors

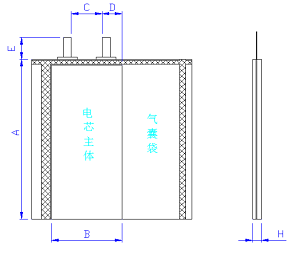

Applicable Cell Parameters

	Parameter	Range
	Cell Length (A)	15–70 mm Reduce placement to half (for cells longer than 70mm)
	Cell Width (B)	12–50 mm (excluding airbag)
	Cell Thickness (H)	2.5–9 mm(shared press block)
	Tab Spacing (C)	3–35 mm
	Tab Shoulder (D)	≤14 mm
	Tab Length (E)	≥6 mm
	Polarity Direction	Airbag side is positive side

III. Main Software Functions

1. Working modes include: constant current charging, constant current/constant voltage charging, constant current discharging, resting, and cycling;
Charge/discharge cut-off conditions: voltage, time, end current, and end capacity.

2. Formation steps support power-off resume, manual pause/resume, software shutdown resume, communication interruption resume, and abnormal stop resume.

3. Stores all step curves for each battery. Test data is stored and can be viewed at any time for both current and historical data of each channel.
Data and curve are presented correspondingly in two formats, and support exporting to Excel individually or in batches.
Additionally, automatic data export can be configured upon test completion.

4. Multiple battery inspection interfaces available: graphical display, comprehensive data, categorized data, and error display.

5. Supports protection and alarm functions for all steps, including voltage, current, temperature, and pressure anomalies.

6. Minimum computer system requirements:
CPU: PII/300 or above, memory: ≥1GB, hard disk: ≥80GB,
Display: EGA/VGA, OS: Microsoft™ Windows 2000 or above,
One available USB serial port, mouse and keyboard.

7. Operation software is included; users must provide their own computer.

8. Protection Functions:
(1) Overvoltage, undervoltage, overcurrent, undercurrent, and overcapacity protection via software
(2) Configurable protection ranges for voltage and current, with alerts and event logging
(3) Alarm lights for temperature and pressure over-limit, with status indication
(4) Emergency stop button: when pressed, fixture remains clamped and system power is cut
(5) Smoke detector installed: system will trigger buzzer alarm upon detection

Three-color indicator light status:
(1) Yellow: Standby (fixture not pressed)
(2) Green: In process (pressing and charging)
(3) Red: System fault (over/under temperature, over/under voltage, smoke, communication fault, etc.)

IV. Installation Environment Requirements

IV. Equipment Installation Requirements

1. Power Supply: AC380V, 50Hz, three-phase four-wire system; voltage fluctuation range: ±10%

2. Total Power Consumption:
Heating power: MAX 5.7 KW
Charging power: MAX 0.32 KW

3. Compressed Air: 0.6–0.8 MPa; pressure fluctuation: ±1%
(Clean compressed air: dewatered, oil-free, filtered, and pressure-stabilized)

4. Equipment Specifications:
Weight: approx. 700 KG
Appearance color: light gray or as specified by the customer

5. Environmental Conditions:
Ambient temperature: 0–45°C

6. Relative humidity: 30%–75% RH; ensure the working area is dry, well-ventilated, and free from acid/alkaline corrosion
Grounding: Protective grounding required

V. Standard Accessories (Per Equipment Unit)

No.	Item	Model/Type	Unit	Quantity
1	Name Card Paper	Custom-made	pcs	30
2	Communication Cable	3×0.3mm² Shielded	m	5
3	Rubber Plug	Universal	pcs	20
4	Comm Module (≤6 units)	USB-RS485	pcs	1
