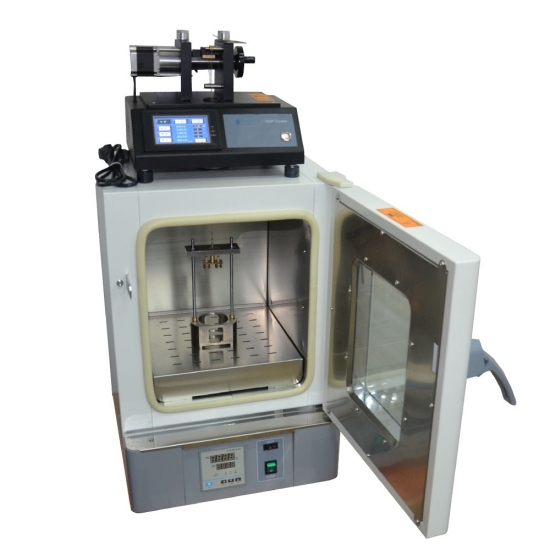

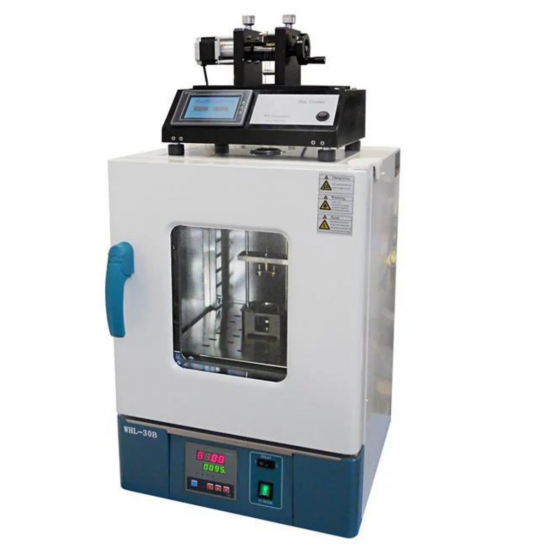

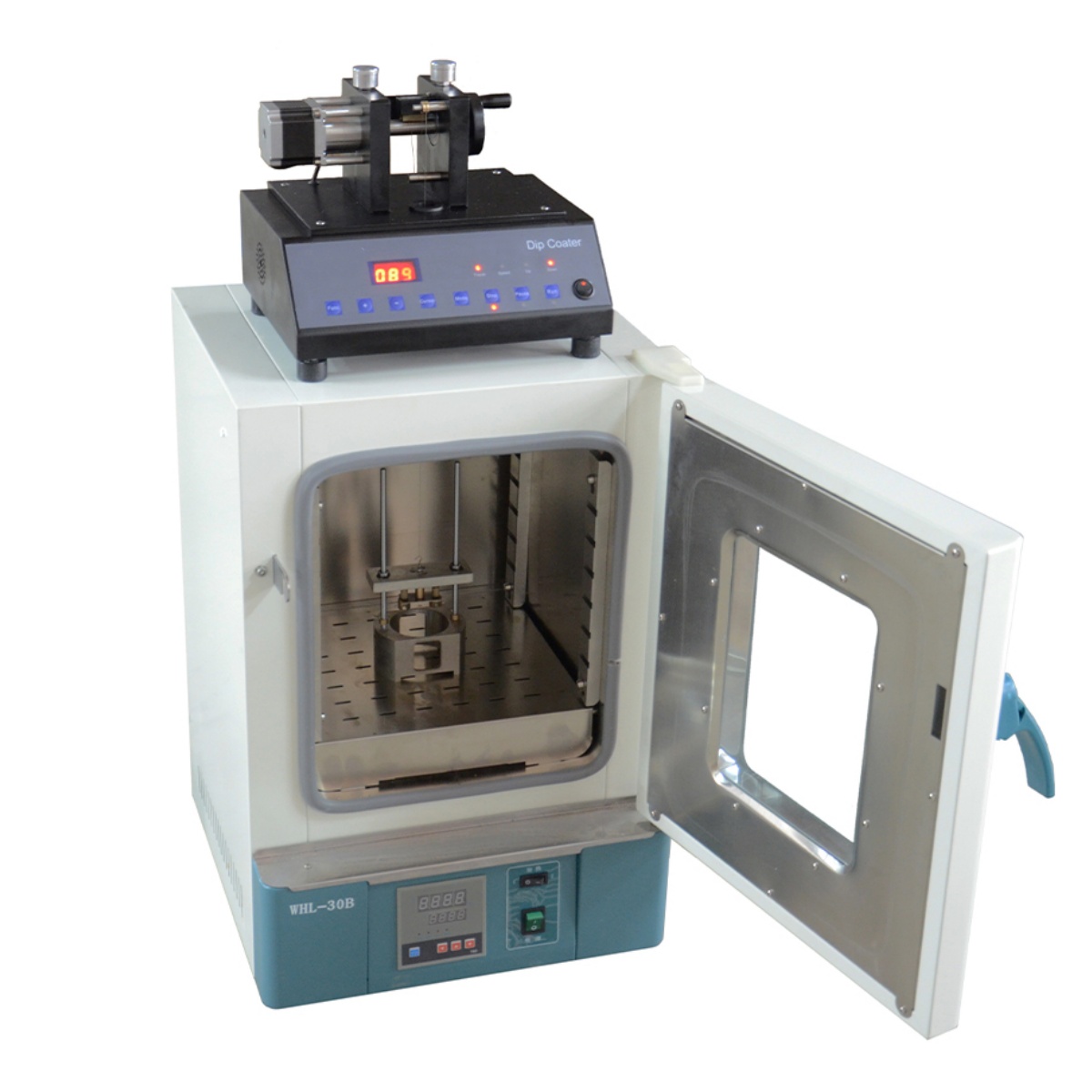

Heated Dip Coating Systems With 100C Constant Drying Oven And Touch Screen
The LITH-KJ012O Programmable Dip Coater is a CE-certified product designed for precise millimeter-level immersion and withdrawal coating experiments in liquid-phase film growth applications. This equipment is essential for research institutions engaged in liquid-phase thin film deposition.
Control System:
· PLC-based programmable control system
· High-precision stepper motor with mechanical actuator and lifting wire for smooth and accurate vertical motion
Operation Modes:
· Single-cycle operation
· Full-cycle operation
Programmable Parameters:
· Withdrawal speed: 1–200 mm/min (±0.05% accuracy)
· Immersion speed: 1–200 mm/min (±0.05% accuracy)
· Dwell time in solution: Adjustable (max. 999 sec)
· Drying time: Adjustable
· Cycle repetition: Up to 20 times
Models Available:
· TMAX-KJ01B: Standard (room temperature)
· TMAX-KJ012O: With thermostatic drying oven (up to 100°C)
General Features:
· Compact design, user-friendly operation, and portability
· Widely used in universities, research institutes, and industrial laboratories
Electrical Parameters:
· Input Voltage: 110/220V AC (selectable)
Mechanical Parameters:
· Travel Distance: 0–60 mm (adjustable)
· Dipping/Pulling Speed: 1–200 mm/min (programmable, ±0.05% accuracy)
· Sample Holder:
o Equipped with two screw-clip fixtures
o Guided by dual vertical rods for stable movement
· Max. Sample Size: 3" (L) × 2" (W)
· Max. Sample Weight: ≤250g
Solution Handling:
· Included Container: 150 mL beaker
· Beaker Holder: Dedicated slot for secure placement
Drying Oven (TMAX-KJ012O Model):
· Max. Temperature: 100°C (±1°C accuracy)
· Heating Power: 600W
· Chamber Dimensions (Internal): 280 × 280 × 280 mm (L×W×H)
· Chamber Material: Stainless steel
· Overall Dimensions: 406 × 406 × 610 mm (L×W×H)
Certifications:
· CE Certified
· NRTL/CSA available upon request (additional cost)
Application Notes:
1. For optimal film uniformity, pre-treat substrates with a plasma cleaner.
2. For nanoparticle dispersion or solution homogenization, use an ultrasonic processor.
PACKAGE:
1 Standard exported package: Internal anticollision protection, external export wooden box packaging.
2 Shipping by express, by air, by sea according to customers' requirements to find the most suitable way.
3 Responsible for the damage during the shipping process, will change the damaged part for you for free.
DELIVERY TIME:15-20 days after confirming the order, detail delivery date should be decided according to
production season and order quantity.
