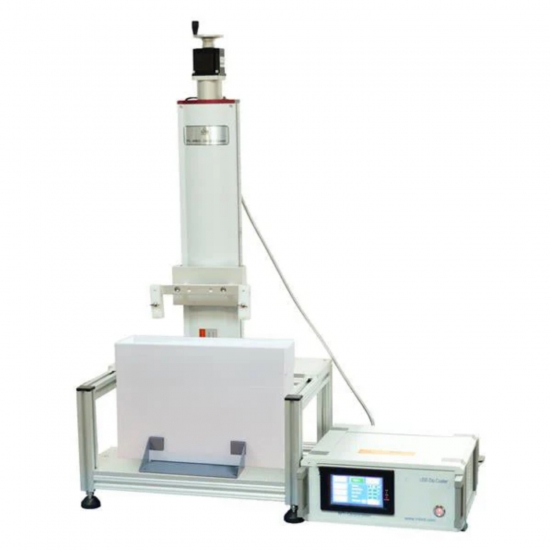

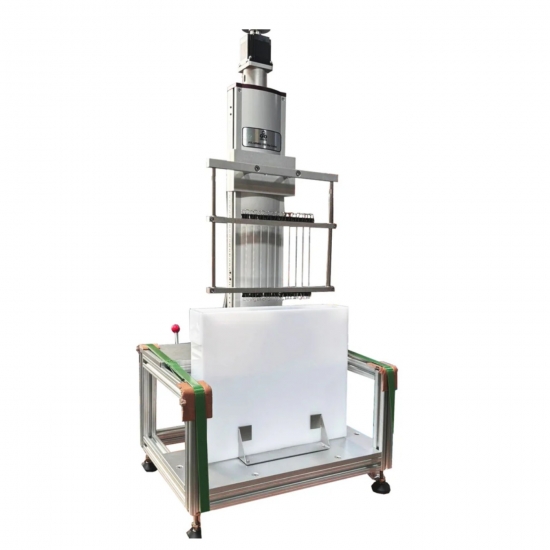

Millimeter Large Size Dip Coating Machine Coater With Low Price
Introduction
A precision device specifically designed for the preparation of thin films via liquid-phase growth on substrates. Features a maximum lifting speed of 1000mm/min, supports large sample sizes, and handles heavy lifting loads. The machine ensures stable vertical lifting with high precision, with programmable control over lifting cycles, immersion time, and repetitions. Compact in size and simple to operate. It achieves film deposition by vertically lifting a substrate from a liquid phase within a constant-temperature environment. Equipped with a high-precision speed control system and a touchscreen parameter input interface, it enables fully automated dip-coating processes.
Key Features
· 4.3-inch color touchscreen with an intuitive interface, suitable for beginners.
· Compact design, cost-effective, and space-saving for laboratory use.
· PLC-controlled high-precision stepper motor drive, ensuring smooth and accurate operation.
Technical Specifications
|
Parameter |
Specification |
|
Installation Requirements |
1. Power Supply: Single-phase AC 100~240V, 50/60Hz, 10A national standard socket (must be properly grounded). A 10A circuit breaker must be installed. 2. Operating Environment: Temperature 25°C ±15°C, humidity 55%RH ±10%RH. |
|
Key Parameters |
|
|
Working Voltage |
DC24V, 3.75A (Standard: AC100~240V power adapter included) |
|
Rated Power |
50W |
|
Type |
Programmable – Ambient Temperature Type |
|
Drive Motor |
High-precision stepper motor |
|
Speed Range |
10~1000mm/min (adjustable in 1mm increments) |
|
Immersion Time |
1~999s (adjustable in 1s increments) |
|
Drying Time |
1~999s (adjustable in 1s increments) |
|
Lifting Stroke |
1~350mm (adjustable in 1mm increments) |
|
Lifting Cycles |
1~20 times |
|
Max. Substrate Size |
610mm (L) × 315mm (W) × 1~5mm (T) |
|
Max. Immersion Depth |
≤300mm |
|
Max. Load Capacity |
≤5.5kg |
|
Reservoir Material |
White acrylic |
|
Reservoir Dimensions |
Inner dimensions: 640mm (L) × 50mm (W) × 335mm (H) |
|
Display & Control |
4.3-inch color touchscreen |
|
Product Dimensions |
670mm × 380mm × 860mm |
|
Net Weight |
≈20kg |
Note: The included power adapter specifications are:
· Input: AC100~240V, 50/60Hz
· Output: DC24V, 3.75A
(Actual power supply must match the label on the rear of the device.)
Standard Accessories
|
No. |
Item |
Qty |
|
1 |
Control Box |
1 pc |
|
2 |
Dip Tank |
1 pc |
PACKAGE:
1 Standard exported package: Internal anticollision protection, external export wooden box packaging.
2 Shipping by express, by air, by sea according to customers' requirements to find the most suitable way.
3 Responsible for the damage during the shipping process, will change the damaged part for you for free.
DELIVERY TIME:15-20 days after confirming the order, detail delivery date should be decided according to
production season and order quantity.
