200C Benchtop Dip Coating Equipment Machine With Discounted Price

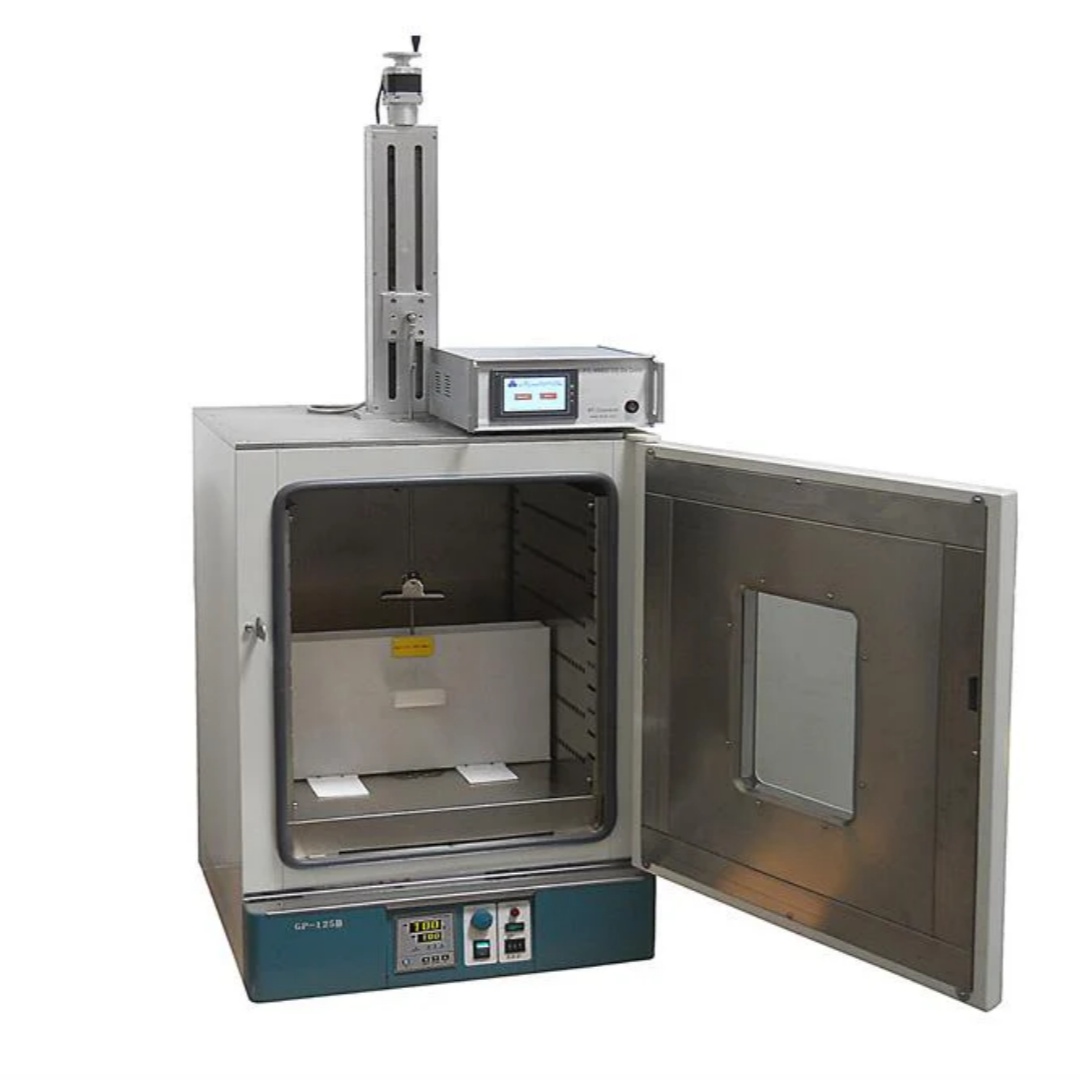

The LITH-KJ013O Constant-Temperature Vertical Dip Coater is a high-precision millimeter-level lifting device designed for liquid-phase thin-film deposition under controlled temperature conditions. It is ideal for research institutions and laboratories specializing in thin-film material preparation.
This model features:
· PLC-based control system for precise operation
· High-precision stepper motor driving a lead screw transmission mechanism for smooth and accurate vertical movement
· Vertical dip-coating process allowing controlled immersion and uniform withdrawal speed, by constant-temperature drying to produce films of consistent thickness
· Compact and portable design, making it suitable for universities, research institutes, and industrial labs
✔ 4.3-inch color touchscreen with an intuitive interface for easy operation, suitable for beginners
✔ Space-saving and cost-effective, optimized for laboratory environments
✔ PLC-controlled high-precision stepper motor ensures stable and highly accurate motion
|
Parameter |
Specification |
|
Power Supply |
Single-phase AC220V 50/60Hz |
|
Outlet Requirements |
1× 10A national standard outlet<br>1× 16A national standard outlet |
|
Grounding |
Must be properly grounded |
|
Circuit Protection |
Requires 16A circuit breaker |
|
Operating Environment |
Temperature: 25°C ±15°C Humidity: 55%RH ±10%RH |
|
Parameter |
Specification |
|
Rated Power |
50W |
|
Operating Voltage |
DC24V 3.75A (Standard: AC100-240V power adapter included) |
|
Drive Motor |
High-precision stepper motor |
|
Speed Adjustment Range |
1-200 mm/min (1mm increments) |
|
Immersion Time |
1-999 sec (1 sec increments) |
|
Drying Time |
1-999 sec (1 sec increments) |
|
Lifting Stroke |
1-270 mm (1mm increments) |
|
Maximum Lifting Cycles |
20 times |
|
Maximum Substrate Size |
400mm(L) × 230mm(W) × 1-10mm(T) |
|
Maximum Immersion Depth |
≤200 mm |
|
Maximum Load Capacity |
≤5.5 kg |
|
Control Interface |
4.3-inch color touchscreen |
|
Machine Dimensions |
636mm(W) × 680mm(D) × 1520mm(H) |
|
Net Weight |
≈75 kg (including oven) |
|
Parameter |
Specification |
|
Power Supply |
Single-phase AC220V 50/60Hz |
|
Rated Power/Current |
2.5 kW / 11.3A |
|
Heating Method |
Natural convection |
|
Temperature Range |
Room temperature to +200°C |
|
Temperature Accuracy |
±1.5°C |
|
Timer Modes |
Constant-temperature timer/Run timer (selectable) |
|
Timer Range |
0-9999 minutes/hours |
|
Temperature Control |
Dual digital display PID with 4-button setting |
|
Temperature Display |
PV (measured): Upper 4-digit display<br>SV (set): Lower 4-digit display |
|
Temperature Sensor |
PT100 thermocouple |
|
Internal Dimensions |
500mm(W) × 450mm(D) × 550mm(H) |
|
Internal Volume |
125L |
|
No. |
Accessory |
Quantity |
|
1 |
Control Box |
1 pc |
|
2 |
Coating Bath |
1 pc |
1. Power adapter specifications:
1. Input: AC100-240V 50/60Hz
2. Output: DC24V 3.75A
3. Actual power supply must match the label on the rear panel
2. Optional customization:
1. Single-phase AC110V 50/60Hz oven power supply available upon request
· All specifications are subject to change without prior notice
· Refer to product label for final confirmed specifications
· Custom configurations available for special requirements
PACKAGE:
1 Standard exported package: Internal anticollision protection, external export wooden box packaging.
2 Shipping by express, by air, by sea according to customers' requirements to find the most suitable way.
3 Responsible for the damage during the shipping process, will change the damaged part for you for free.
DELIVERY TIME:15-20 days after confirming the order, detail delivery date should be decided according to
production season and order quantity.
