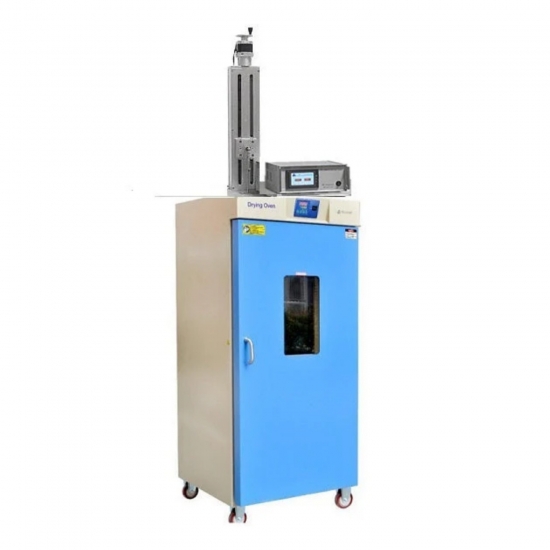

Dip Coating Unit With Temperature Chamber for 20" × 20" Large Substrates
The LITH-KJ014O is a programmable dip coater (1–200 mm/min) with a 420L drying oven. It supports substrates up to 20" × 20" with fully adjustable dipping/pulling speed, dwell time, and cycle count. The ball screw pulling system ensures smooth, vibration-free operation. A polypropylene dip tank (included) fits inside the temperature-controlled oven, compatible with solutions up to 210°C.
|
Category |
Specification |
|
Model |
LITH-KJ014O |
|
Control Panel |
- Working Voltage: 110–240V AC - Max. Power Consumption: 50W - Detachable Digital Controller (programmable) - Includes: Programmable temp. controller, forced air fan adjustor, temp. limit/alarm, incubate/dry function switch (see image for details) |
|
Traveling Distance |
0–550 mm (adjustable) |
|
Dipping/Pulling Speed |
1–200 mm/min (adjustable) |
|
Temperature |
100°C (±2°C accuracy) |
|
Solution Container |
- Material: Polypropylene - Internal Dimensions: 600 (L) × 600 (H) × 25 (W) mm |
|
Max. Sample Size |
20" × 20" |
|
Max. Sample Weight |
10 kg |
|
Dipping/Pulling Motor |
Stepping Motor |
|
Oven |

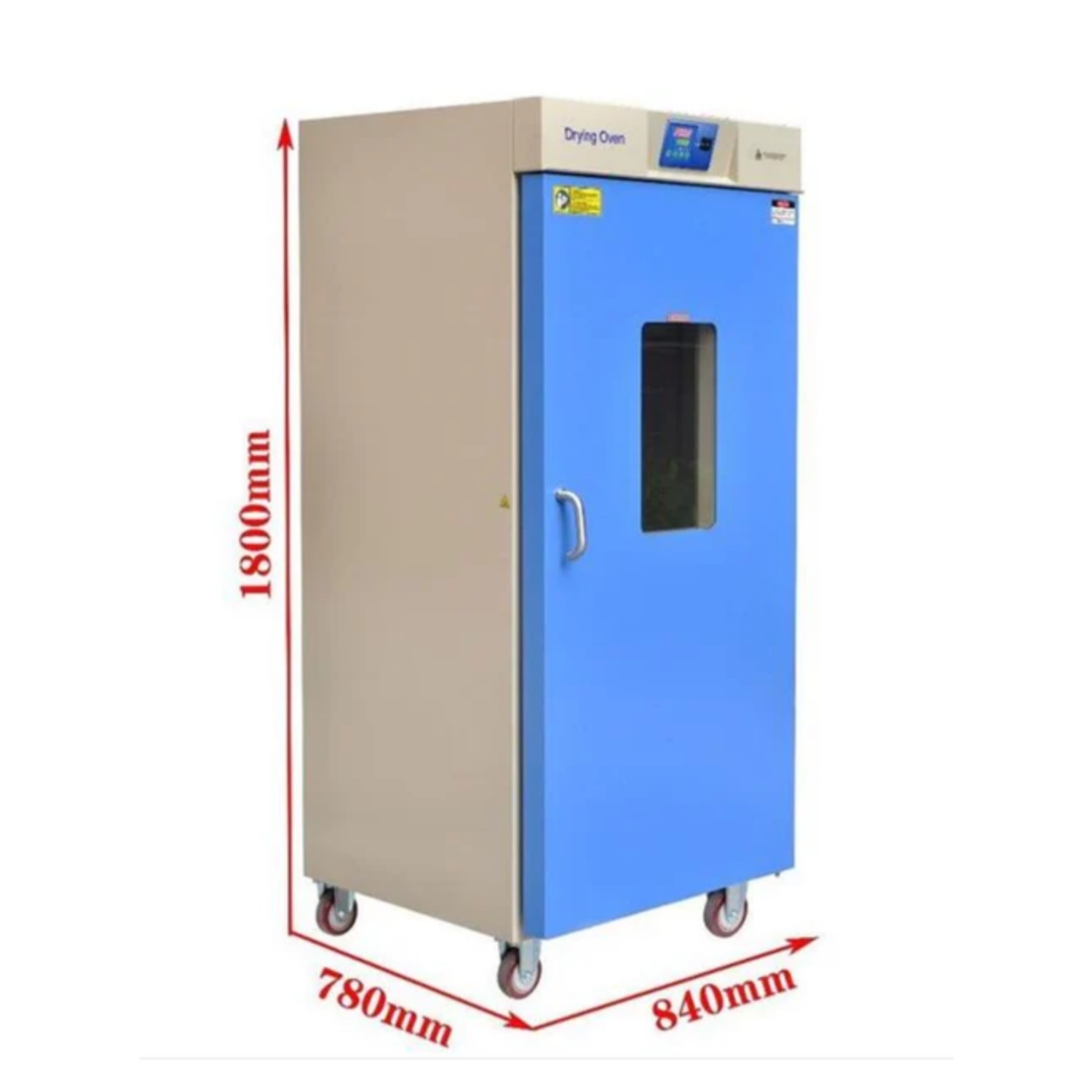

- Working Voltage: 208–240V AC - Max. Temp.: 100°C (±2°C) - Max. Power Consumption: 3500W - Temp. Control: Digital PID (±1°C) - Chamber Dimensions: 640 (L) × 585 (W) × 1355 (H) mm (420L) - Inner Material: Stainless Steel |
|
Compliance |
- CE Certified - NRTL/CSA Certification (available upon request, extra cost) |
PACKAGE:
1 Standard exported package: Internal anticollision protection, external export wooden box packaging.
2 Shipping by express, by air, by sea according to customers' requirements to find the most suitable way.
3 Responsible for the damage during the shipping process, will change the damaged part for you for free.
DELIVERY TIME:15-20 days after confirming the order, detail delivery date should be decided according to
production season and order quantity.
