ItemNo :
LITH-ZZF-350MOQ :
1Compliance:
CEWarranty:
2 yearsDelivery Time:
5 days

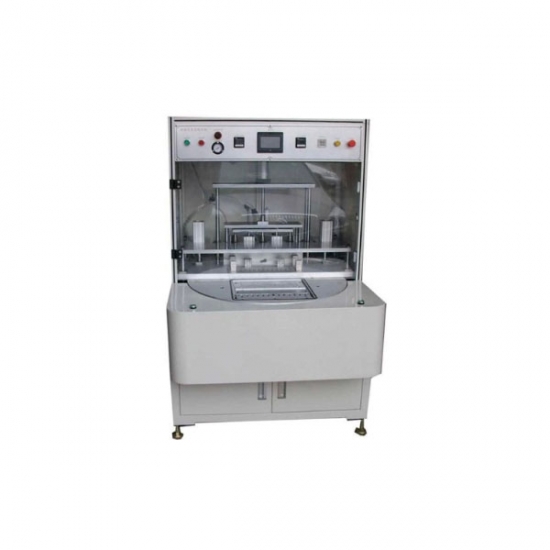

Automatic Dual-Fixture Rotary Vacuum Final Sealer for Pouch Cells
This equipment is applicable to the vacuum sealing process of lithium-ion pouch cells.
It adopts a rotary dual-fixture alternating structure. Two fixtures take and place cells in turns, alternately entering the vacuum sealing chamber. Clamping time does not affect equipment efficiency.
After placing the battery into the fixture on the rotary table, press the start button. The turntable rotates 180°, and the battery enters the vacuum sealing area. The vacuum chamber closes, and the vacuum pump starts operating.
When the vacuum inside the chamber reaches a preset low level, the piercing needle activates to break the gas bag, preventing the battery interior from contacting air.
When the chamber reaches ultimate vacuum, the upper sealing bar performs the sealing process.
Press the start button again, the turntable rotates 180°, the sealed cell exits the vacuum area, and the unsealed cell enters the sealing area — cyclic operation continues.
|
Item |
Dimension (mm) |
Cell Illustration |
|
Cell Length L (excluding tab) |
96 / 263.5 |
|
|
Cell Width W |
66.2 / 108.5 |
|
|
Cell Thickness T |
3 – 10 |
|
|
Tab Length Lj |
30 / 55 |
|
|
Cell Type |
Single / Double Sided Tab |
|
Technical Item |
Specification |
|
Cell Sealing Length |
Sealing head length ≤ 350 mm |
|
Cell Width |
≤ 120 mm |
|
Sealing Head Max Heating Temperature |
≤ 250°C |
|
Sealing Method |
Hard sealing |
|
Sealing Head Width |
5 mm |
|
Temperature Accuracy |
±3°C |
|
Sealing Time |
0–99 seconds, individually adjustable |
|
Sealing Pressure |
≥ 0.4 MPa, adjustable, independently controlled |
|
Vacuum Degree |
≥ -95 KPa, adjustable |
|
Vacuum Holding Time |
Adjustable |
|
Heating Rod Power (single) |
≥ 800 W |
|
Piercing Needle |
Alloy material, adjustable, easy to replace |
|
Cell Tab Type |
Single / Double Tab Cells |
|
Sealing Head Material |
Brass H62 |
|
Sealing Head Structure |
Split structure, easy replacement |
|
Sealing Head Parallelism |
±0.01 mm |
l Dual-station rotary structure, positioning accuracy: ±0.05 mm
l Sealing head working temperature range: ambient to 250°C
l Temperature control accuracy: ±3°C
l Sealing time: 1–99 seconds, adjustable
l Vacuum pressing mechanism uses spring and cylinder, ensuring flatness even during frequent cell model changes
l Electrolyte recovery tray on rotary table, easy to clean
l Vacuum pipeline equipped with electrolyte filter, effectively prevents corrosion of vacuum system
l Upper sealing bar adopts double-linkage pneumatic structure, ensures parallel movement
l Piercing needle is positioned within 10 mm from sealing bar, suitable for various battery sizes
l Time accuracy: ±0.1 second
l Upper and lower copper sealing heads, width: 5 mm
l Max sealable cell size: 350 (L) × 120 (W) × 10 (T) mm
l Auto alignment function for sealing heads; edge distance from pouch edge ≤ 0.5 mm
l Vacuum degree ≥ -95 KPa
l Touchscreen error display function included
l Manual mode available for adjustment convenience
l Aluminum alloy frame, coated with grey-white spray paint; machined parts undergo anti-rust treatment
|
No. |
Item |
Manufacturer / Brand |
|
1 |
PLC |
Panasonic |
|
2 |
Touchscreen |
Kunlun Tongtai |
|
3 |
Cylinder |
AIRTAC |
|
4 |
Solenoid Valve |
AIRTAC |
|
5 |
Temperature Controller |
OMRON |
|
6 |
Vacuum Gauge |
Panasonic |
|
7 |
Pressure Regulator |
AIRTAC |
|
8 |
Electrical Components |
CHINT |
|
9 |
Indexing Divider |
Huachi |
|
No. |
Name |
Model/Spec |
Material |
Brand |
Unit |
Qty |
|
1 |
Heating Rod |
￠9.8 × 360 |
Stainless Steel |
Domestic |
pcs |
2 |
|
2 |
Solid State Relay |
DA25A |
— |
LIYOU |
pcs |
2 |
|
3 |
Thermocouple |
— |
— |
Domestic |
pc |
1 |
|
4 |
Piercing Needle |
— |
Alloy |
In-house |
pcs |
5 |
|
No. |
Item |
Specification |
|
1 |
Equipment Power |
AC220V ±10％ / 50Hz; Power ≤ 2.5 kW |
|
2 |
Air Source |
0.4–0.7 MPa; 10 L/min |
|
3 |
Vacuum Source |
≤ -100 KPa; Flow ≥ 5 L/min |
|
4 |
Floor Load |
≥ 300 kg/m² |
|
5 |
Noise Level |
60 dB at 1 meter distance |
|
6 |
Equipment Weight |
Approx. 120 kg |
|
7 |
Equipment Size |
1200 mm × 1200 mm × 1650 mm |
PACKAGE:
1 Standard exported package: Internal anticollision protection, external export wooden box packaging.
2 Shipping by express, by air, by sea according to customers' requirements to find the most suitable way.
3 Responsible for the damage during the shipping process, will change the damaged part for you for free.
DELIVERY TIME:15-20 days after confirming the order, detail delivery date should be decided according to
production season and order quantity.
