5V 5A 128 Channel Hot Press Formation Machine for Pouch Cell
The equipment is composed of six major systems: temperature control, over/under-temperature alarm, over/under-voltage alarm, pressure control, formation cabinet system, and fixture mechanism.
It features: Independent temperature control for each board layer, pressure control, charge/discharge functions, overcharge/discharge protection, reliable contact between battery tabs and contact points, data connectivity, data storage upon process completion, voltage sorting after charging, capacity sorting after discharging, and smoke alarm system.

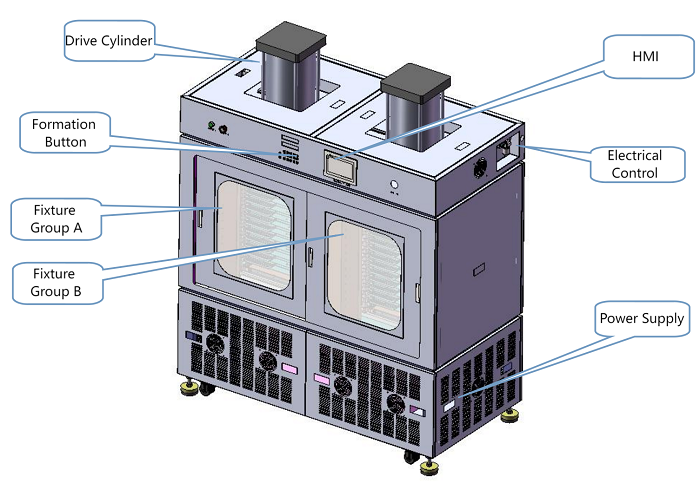

3. Equipment Structure

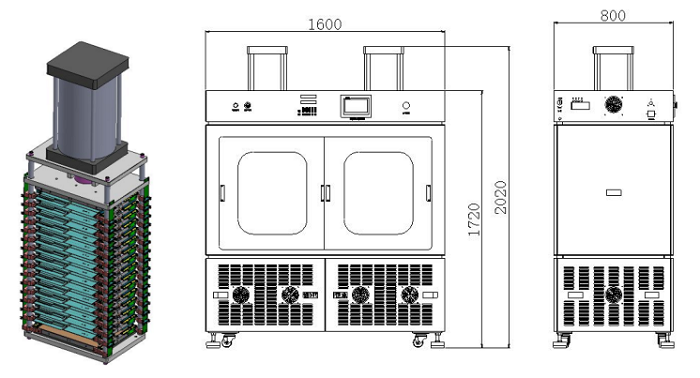

4. Fixture Structure and Overall Dimensions (for reference)

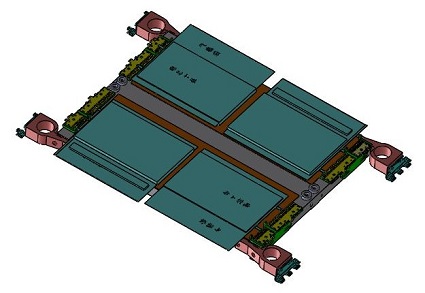

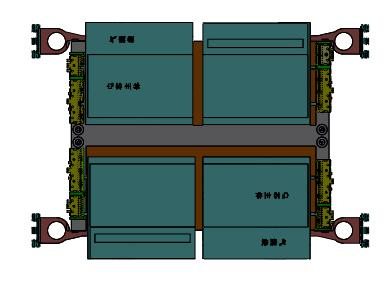

5. Battery Placement
6.Operation Process:
Power on → Manually open the cabinet door → Insert battery into Fixture A → Set parameters for Fixture A → Fixture A lowers and starts → Insert battery into Fixture B → Set parameters for Fixture B → Fixture B lowers and starts → Wait for Fixture A to complete → Manually remove the battery.
7. Equipment Features
1. Compatible with cell thickness range of 2.5–12mm without fixture adjustment or tab block replacement.
2. Fixture plate is made of 19.5mm thick grid-type hollow aluminum, lightweight, strong, and non-deforming.
1. General Parameters
|
No. |
Parameter Name |
Technical Specification |
Description |
|
1 |
Heating Method |
Built-in heating tube |
Fireproof and corrosion-resistant |
|
2 |
Temperature Control Method |
Independent temperature control per layer |
One-touch temperature setting via touchscreen |
|
3 |
Layer Plate Structure |
Grid aluminum plate, double-sided laminated with cold-pressed board, wrapped with namecard paper |
|
|
4 |
Time to Reach 40℃ |
15–20 Min |
Target temperature 65℃ |
|
5 |
Temperature Control Range |
Room temperature – 85℃ |
Control accuracy: ±2℃ |
|
6 |
Pressure Output Range |
80–3000 KG |
Cylinder diameter: 250mm |
|
7 |
Cylinder Drive Method |
Top-down pressing |
Vertical pressing |
|
8 |
Weight Reduction Method |
Hollow aluminum plate |
|
|
9 |
Pressure Accuracy |
Top and bottom layers ≤±40KG |
|
|
10 |
Execution Mode |
Each fixture can independently execute steps; temperature and pressure are executed for the entire machine |
The entire machine can process one product type at a time |
|
11 |
Pressure Setting Method |
Input cell size, surface pressure, and process time on touchscreen; system calculates and executes pressure automatically |
Data can be saved and reused |
|
12 |
Plate Spacing |
22mm |
Optimized for ease of operation |
|
13 |
Tab Contact |
Spring type |
|
|
14 |
Tab Block |
Teflon injection molding |
Flame-retardant and corrosion-resistant |
|
15 |
Number of Channels |
128 channels |
Controlled by upper computer software |
|
16 |
Voltage Output Range |
DC 20mV – 4500mV |
|
|
17 |
Voltage Accuracy |
±0.1%FS ±0.1%RD |
Resolution: 1mV |
|
18 |
Charging Current Range |
DC 20 – 5000 mA |
|
|
19 |
Discharging Current Range |
DC 20 – 5000 mA |
|
|
20 |
Current Accuracy |
±0.1%FS ±0.1%RD |
Resolution: 1mA |
|
21 |
Number of Steps (Per Cycle) |
1–32 steps |
|
|
22 |
Voltage Qualification Rate |
≥99% |
Excluding non-equipment-related factors |

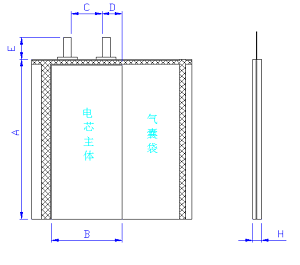

2. Applicable Product Parameters
|
|
Parameter |
Range |
|
Cell Length (A) |
30–130mm |
|
|
Cell Width (B) |
30–80mm |
|
|
Cell Thickness (H) |
2.5–12mm (shared press block) |
|
|
Tab Spacing (C) |
5.5–85mm |
|
|
Tab Shoulder (D) |
≤50mm |
|
|
Tab Length (E) |
≥8mm |
|
|
Polarity Direction |
Airbag side is negative side |
1. Working modes include: constant current charging, constant current/constant voltage charging, constant current discharging, rest, and cycling; cut-off conditions: voltage, time, end current, and end capacity.
2. Formation steps can resume from power failure, manual pause and resume, software closure resume, communication interruption resume, and abnormal stop resume.
3. All step curves for each battery are stored. Test data can be viewed in real-time and historically per channel, displayed in both data and curve formats. Supports exporting to Excel in single or batch mode. Auto-export of data after test completion is supported.
4. Multiple battery inspection interface options: graphical display, comprehensive data, categorized data, and abnormal display.
5. Supports various step protections including over-voltage, under-voltage, over-current, under-current, temperature, and pressure; with alarm system.
6. Minimum computer system configuration: PII/300 CPU or above, 2GB RAM or more, 250GB HDD or more, EGA/VGA color display, mouse and keyboard, Windows 7 or above, one available USB serial communication port and one network port.
7. Operation software provided. PC to be prepared by user.
8. Protection Functions:
(1) Software over-voltage, under-voltage, over-current, under-current, over-capacity protection
(2) Voltage and current protection range configurable, alerts and logs after protection
(3) Temperature and pressure out-of-range alarm light
(4) Emergency stop button, fixture remains closed during emergency stop, system power off
(5) Smoke alarm sensor triggers buzzer alarm upon smoke detection
9. Three-color indicator light statuses:
(1) Standby (fixture not pressed): Yellow light
(2) In process (clamping and charging): Green light
(3) System fault (over/low temperature, over/low voltage, smoke, communication fault): Red light
1. Power supply: AC380V, 50Hz, three-phase four-wire system; voltage fluctuation range: ±10%
2. Total power consumption: MAX 14KW
3. Compressed air: 0.6–0.8MPa; pressure fluctuation ±1% (clean air after dehydration, oil removal, filtration, and pressure regulation)
4. Equipment specifications:
l Equipment weight: approx. 1.0 ton

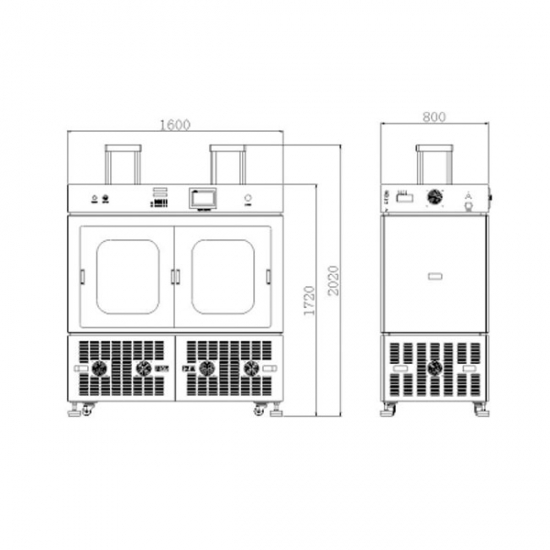

l External dimensions: L1.6m × W0.8m × H1.72m (including cylinder: 2.2m)
l Exterior color: Light gray or customer-specified
5. Environmental requirements:
l Ambient temperature: 0–45℃
l Relative humidity: 30%–75%RH, ensure dry and ventilated area, free of acid/alkaline corrosion
l Grounding: Protective grounding
|
No. |
Name |
Model |
Unit |
Quantity |
|
1 |
Namecard Paper |
Customized |
Sheet |
30 |
|
2 |
Communication Cable |
3*0.3mm² Shielded |
Meter |
5 |
PACKAGE:
1 Standard exported package: Internal anticollision protection, external export wooden box packaging.
2 Shipping by express, by air, by sea according to customers' requirements to find the most suitable way.
3 Responsible for the damage during the shipping process, will change the damaged part for you for free.
DELIVERY TIME:15-20 days after confirming the order, detail delivery date should be decided according to
production season and order quantity.
