Louis@lithmachine.com13 Channel Cylindrical Battery Sorter with Computer System for 18650 26650 32650 Battery Pack Assembly
INTRODUCTION

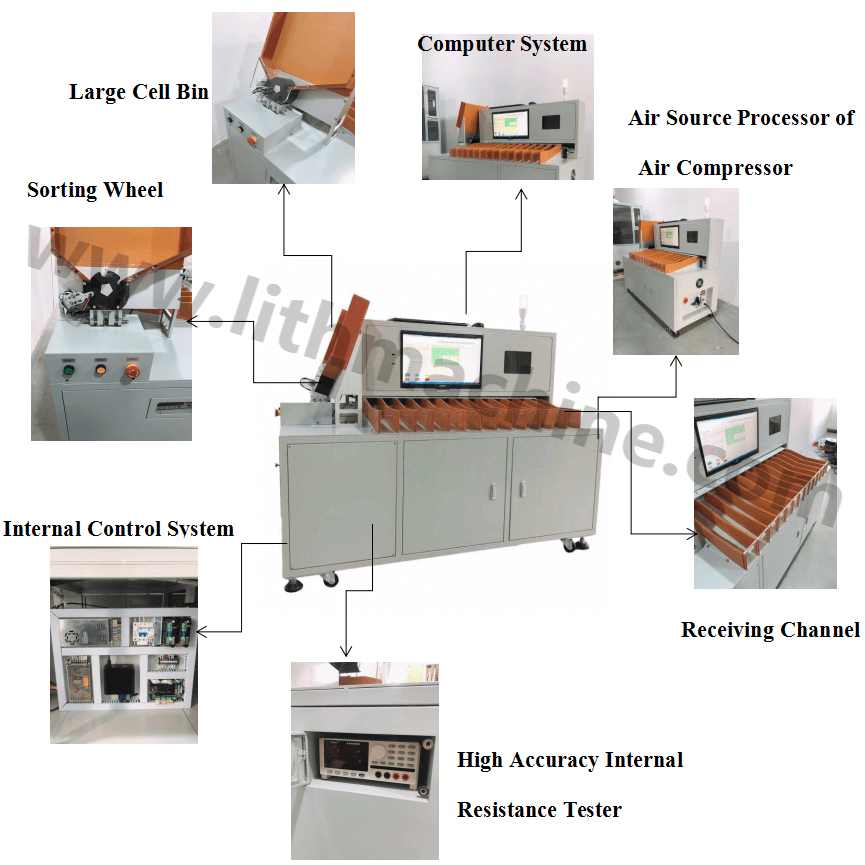

Cylindrical battery sorter is a sorting equipment used to test the internal resistance, voltage and other parameters of cylindrical battery. The machine has its own precise internal resistance and voltage test system. According to the internal resistance set on the computer, the voltage value sends the battery to the designated gear. The machine has simple and generous structure design and stable performance. We can also offer CNC welding machine. Welcome your inquiry to us for more details.
Application
Electric vehicle battery pack
Street lamp battery pack
Automotive Resistance Module
Battery pack of balancing car
Portable source
Laptop battery pack
Characteristic

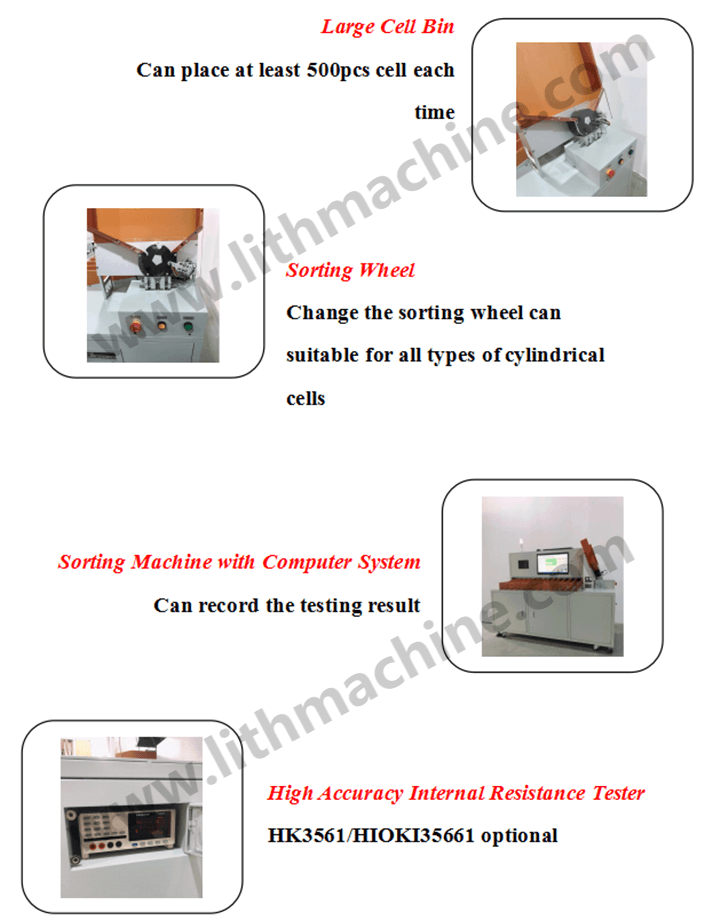

1. With automatic feeding system, the feeding speed is high and stable, no impact and scratch on the battery, and suitable for direct manual feeding of different feeding boxes, which can realize uninterrupted production.
2. Cylindrical battery sorter adopts high precision and high stability internal resistance tester, and feeding part adopts high speed and high stability feeding mechanism.
SPECIFICATION
|
Electricity Source |
220VAC±10%/50Hz, |
|
Power |
1KW |
|
Working Gas Source |
0.5-0.8MPa |
|
Adaptation Battery |
18650,26650,32650,21700 ect |
|
Efficiency |
80PPM |
|
Dimension |
1500L X 700W X 1600H mm |
|
Instrument |
Precision voltage resistance tester (HK3561) |
|
Batteries Sorting Parameters |
Open circuit voltage & AC resistance |
|
Open Circuit Voltage Accuracy |
± 0.1% rdg Display Resolution: 0.1 millivolt |
|
AC Resistance Accuracy |
± 0.5% rdg Display Resolution: 0.01 milliohm |
|
Channel |
13 channel |
|
Linear Guide Rail |
HIWIN |
|
PLC |
Motion Controller |
|
Solenoid Valve |
AirTAC |
|
Cylinder |
AirTAC |
|
Noise |
≤65db |
|
Equipment Crop Mobility |
≥95% |
Related Machine
PACKAGE:
1 Standard exported package: Internal anticollision protection, external export wooden box packaging.
2 Shipping by express, by air, by sea according to customers' requirements to find the most suitable way.
3 Responsible for the damage during the shipping process, will change the damage part for you for free.
DELIVERY TIME:15-20 days after confirming order,detail delivery date should be decided according to production season and order quantity
