INTRODUCTION:

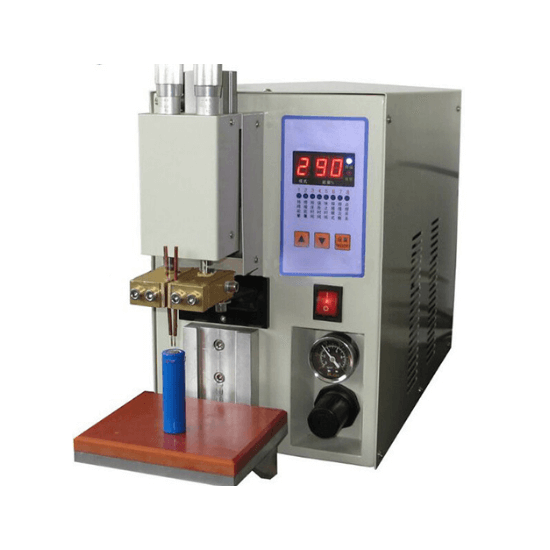

This pneumatic spot welding machine is mainly used for 18650 cylinder call pack welding, it can weld Nickel tab thickness from 0.03-0.25mm with good welding effect.
The Pneumatic model is with smaller volume and weight, easy for international shipping.
1. ARP30 series battery assembly microcomputer precision welding power supply adopts double pulse welding method. It is an advanced level high performance resistance welding machine in China. It is specially designed for the production of high-end mobile phone batteries, mobile power supplies, power batteries, digital batteries, and nickel-metal hydride and nickel-cadmium batteries. Designed as needed.
2. ARP series precision AC resistance welding power supply is a new power source developed by Japanese thyristor inverter technology, microcomputer control technology and modern power electronics technology.
3. The time control reaches millisecond precision, the control response and control precision are greatly improved; the precision double pulse current output makes the welding process significantly improved; the advanced software and hardware technology also makes the device have a series of advantages such as small size, energy saving and high efficiency; the microcontroller (MCU) With the adoption of electronic technology, the device has excellent functions of modern equipment, including digital control, monitoring, fault diagnosis and protection, data transmission, etc. The equipment is complete in function, flexible and convenient, and adaptable.
ADVANTAGE:
1. Double pulse welding:
Double pulse welding, the first pulse is used to remove the surface coating and oxide of the workpiece, while causing slight deformation at the contact point of the welding electrode, improving the effective contact surface, and the second pulse is used to lift the body metal. Soldering. It can effectively promote the quality of welding and reduce welding spatter.
The pulse energy is adjustable, and the welding cycle number is adjustable. The grid voltage is automatically tracked and compensated, the welding current output is stable, the welding is firm, beautiful, less splashing, simple to operate, safe and reliable.
2. Control method:
High-speed high-precision 8-bit microprocessor (MCU) control, LED digital display, precise adjustment of pulse energy (0-99%), pre-pressurization time adjustable (0-99), dwell time (0-99), rest Parameter lock function such as time (0-99). The operation is simple and convenient, saves the adjustment time, and is suitable for different operating environments and operators.
3. Multiple fault protection:
The high-power circuit and control circuit of the welder are equipped with two different types of protection circuits to prevent the equipment from overheating, external high voltage and power fluctuations from interfering with the welder; to protect the welder from damage in harsh environments. It has a prompt function for some common faults. If the welder is overheated and damaged, it will automatically alarm and cut off the power at the same time.
4. Precision welding head design:
The cylinder is combined with the spring buffer to make the pressure of the two welding needles relatively adjustable during welding. Due to the buffering action of the spring, the cylinder does not directly act on the welding point, thus effectively protecting the welding plane.
The photoelectric pressure switch is used inside the machine head. The welding is only performed when the pressure of the two welding pins reaches the set pressure, which protects the reliability of the welding and the pressure of the double needle can be adjusted.
5. Unique structure:
The table is steplessly lifted and locked by hand, which makes the adjustment position convenient and accurate.
One-piece design, pneumatic operation, easy to operate.
SPECIFICATION:
Power Supply
220-240V, Single Phase 50/60Hz
Max. Power
10KW
Air Pressure Range
0.1 - 0.7 Mpa ( air compressor is required)
Welding Current
2500A
Welding Thickness
0.03 - 0.25mm
Operation Temperature
-20 - 40℃
Controller
Controlled by microcontroller,achieve monopulse, dipulse, multiple-pulse welding
Pressure
The pressure applied on the welding needle can be adjusted independently and easy to operate
Design
1. Unique Photoelectric switch design
2. Good appearance, small size and light weight
3. Welding spot looks beautiful,free spark, stable welding current
Product Dimensions
L800×W600×H130mm
Net Weight
30kg
Compliance
CE Certificate
Warranty
One Year limited warranty with lifetime support
|
Spot Welding Machinie |
||||
|
Type |
Product Name |
Features |
Picture |
Link |
|
Manual |
Pneumatic Spot Welding Machine |
Welding Thickness:0.03 -0.25mm Air Pressure Range:0.1 - 0.7 Mpa |
|
|
|

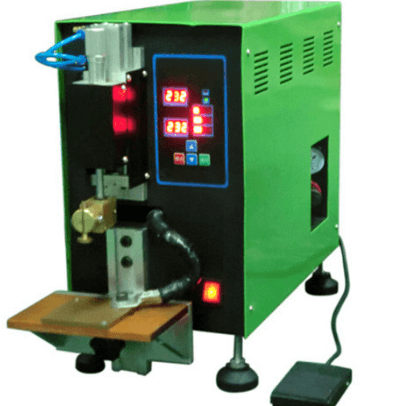

AC Plus Pneumatic Spot Welding Machine |
Welding Thickness:0.03~0.2mm |
|
||
|
5000A/8000A Pneumatic Inverter DC Spot Welding Machine |
Maximum thickness of parallel welding:0.03mm~0.5mm Maximum Output Short Circuit Current:5000A or 8000A |
|
||
|
DC Output Spot Welding Machine |
Maximum thickness of parallel welding:0.03mm~0.5mm |
|
https://www.lithmachine.com/High-Precision-DC-Output-Spot-Welding-Machine-Tab-Welder_p364.html |
|
|
Automatic |
Automatc Single Side Spot WeldingMachine(Pneumatic/Electric) |
Welding travel:400x500mm Welding Speed:0.35s/point; 2800pcs / hour |
|
|
|
Automatic Single Side Rotary Welding Head Spot Welding Machine(Pneumatic/Electric) |
The rotatable welding head can prevent the sticking of the needle. In addition, if it is a nickel strip with different fork directions, the rotating welding head is needed. Welding travel:400x500mm Welding Speed:0.35s/point; 2800pcs / hour |
|
||
|
Automatic Double Sides Spot Welding Machine (Pneumatic/Electric) |
Welding travel:400x500mm Spot welding speed: 0.3s/point; 5000pcs/h |
|
https://www.lithmachine.com/Automatic-18650-26650-32650-Cylindrical-Battery-Pack-Double-Sides-Spot-Welding-Machine-for-Battery-Assembly_p369.html | |
Related Machine
PACKAGE:
1 Standard exported package: Internal anticollision protection, external export wooden box packaging.
2 Shipping by express, by air, by sea according to customers' requirements to find the most suitable way.
3 Responsible for the damage during the shipping process, will change the damage part for you for free.
DELIVERY TIME:15-20 days after confirming order,detail delivery date should be decided according to production season and order quantity
