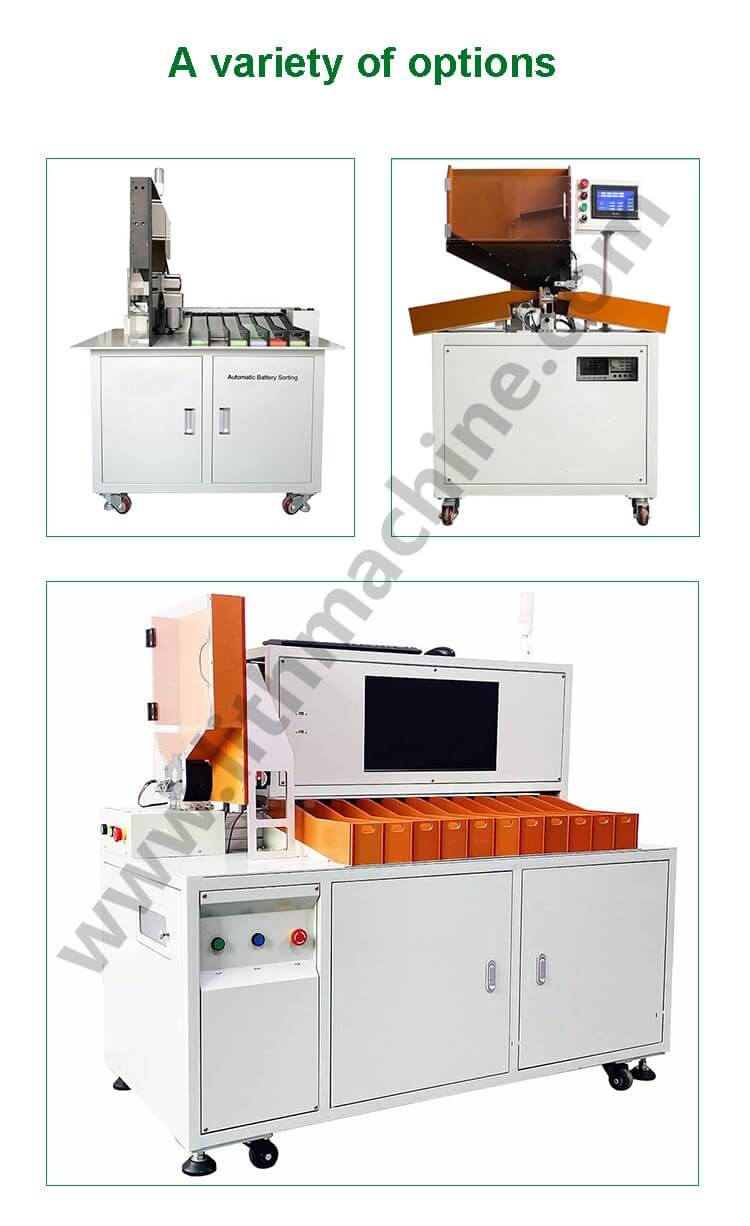

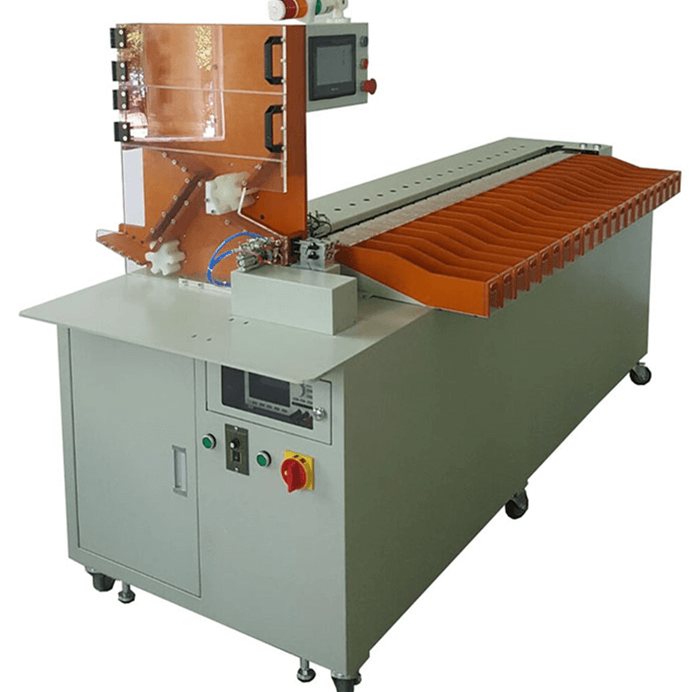

Louis@lithmachine.com22 Channel 18650 26650 21700 32650 Cylindrical Battery Sorter/Sorting Machine For Battery Pack Assembly
Feature:
1. Compact and reasonable equipment structure, beautiful appearance,small volume.
2. Simple equipment operation,workerscan easily learning.

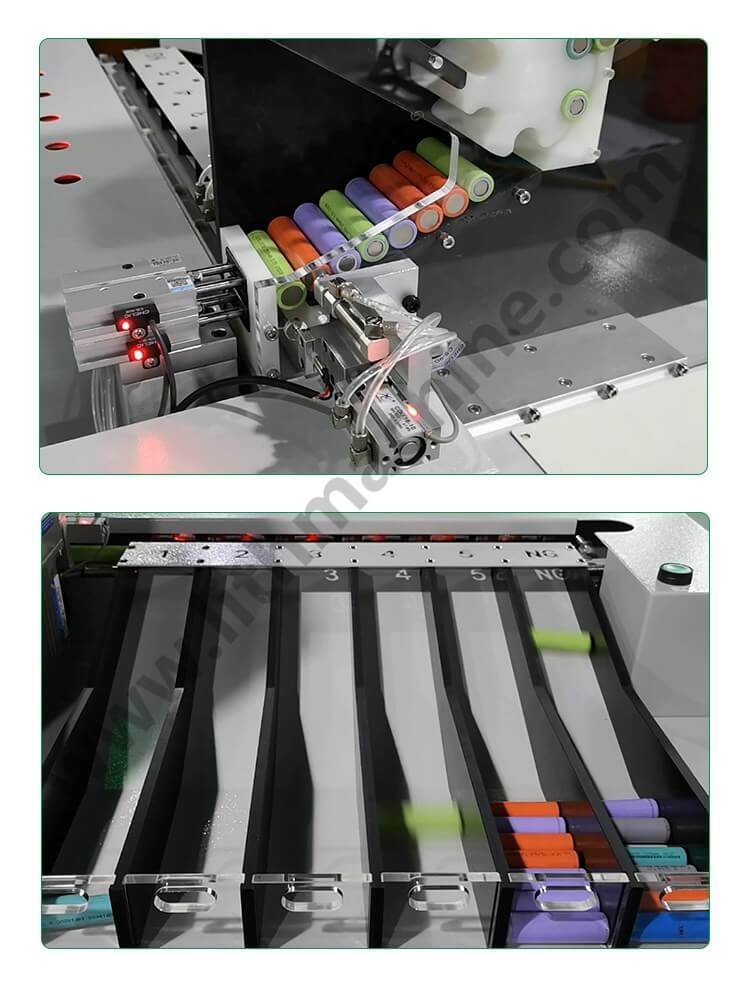

3. The equipment is controlled by PLC and PC.The PLC is responsible for battery feeding, battery handling and battery sorting. The PC is responsible for battery testing data collection, voltage internal resistance rating, high work effienciency, saving manpower, good product perfermance.
4. Equipment materials are made of high quallity thick cold - rolled sheet metal, aluminum frame.
Specification
|
Channel No. |
22 |
|
Production Efficiency |
6000pcs/hour |
|
Scope of Adaptation |
Automated sorting voltage for 18650 or other cylindrical cores. Internal resistance can also be sorted separately or separately. |
|
Automatic Online Interface |
It can be customized to connect the outlet of the automatic surface cushion machine in the machine hopper to realize the automatic connection of the electric cores and save the labor cost. |
|
External Connection |
Customizable automatic connection automatic surface mattress machine (electric core poured into automatic surface mattress machine, pasted surface mattress automatically flowed into automatic sorter, sorting, saving manpower) |
|
Equipment Power |
1.6KW, 220V/110V AC input, 50Hz |
|
Air Pressure |
0.4-0.8Mpa |
|
Voltage Setting |
0.000V-6.000V |
|
Internal Resistance Setting |
000.0 milliohms - 999.9 milliohms |
|
Standard Tester |
HK3561 High Speed Tester Voltage Accuracy :±0.1% rdg Internal Resistance Accuracy: +/- 0.5% rdg |
Related Machine
PACKAGE:
1 Standard exported package: Internal anticollision protection, external export wooden box packaging.
2 Shipping by express, by air, by sea according to customers' requirements to find the most suitable way.
3 Responsible for the damage during the shipping process, will change the damage part for you for free.
DELIVERY TIME:15-20 days after confirming order,detail delivery date should be decided according to production season and order quantity
