Louis@lithmachine.comSupercapacitor Shell Platform Forming Equipment for End Cap Assembly
Application

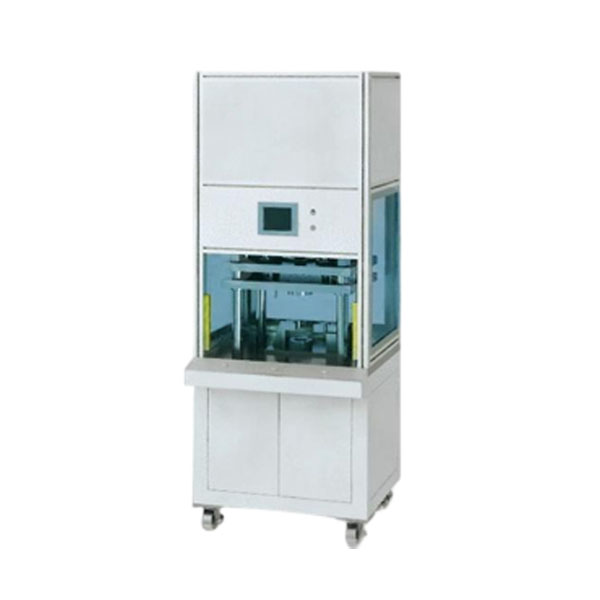

The Supercapacitor Aluminum Can Forming Machine is designed for forming platform seating in aluminum shell casings of supercapacitors, facilitating the installation of end caps, sealing O rings, and insulating rings.
· Features a discharge mechanism—formed aluminum cans can be easily removed.
· Precision-mold design ensures accurate shell forming.
· Utilizes a four-column structure and precise guide bushings for stable vertical pressing and high accuracy.
· Equipped with PLC control and HMI touchscreen, enabling seamless automation.
· Built on a robust steel frame, featuring safety light curtains and double button activation for secure, reliable operation.
· Compact, elegant structure ideal for integration into production lines.
|
Parameter |
Specification |
|
Applicable Product |
Diameter Φ60 mm, Height 50–140 mm |
|
Utilization Rate |
98% |
|
Air Supply |
0.5–0.8 MPa (adjustable) |
|
Power Supply |
220 V / 50 Hz |
|
Power Consumption |
2 kW |
|
Machine Dimensions |
800 × 700 × 1700 mm (L × W × H) |
|
Weight |
500 kg (approx.) |
1 Standard exported package: Internal anticollision protection, external export wooden box packaging.
2 Shipping by express, by air, by sea according to customers' requirements to find the most suitable way.
3 Responsible for the damage during the shipping process, will change the damaged part for you for free.
DELIVERY TIME:15-20 days after confirming the order, detail delivery date should be decided according to
production season and order quantity.
