Louis@lithmachine.comPrecision Riveting Equipment for Supercapacitor Tab Terminal Connections

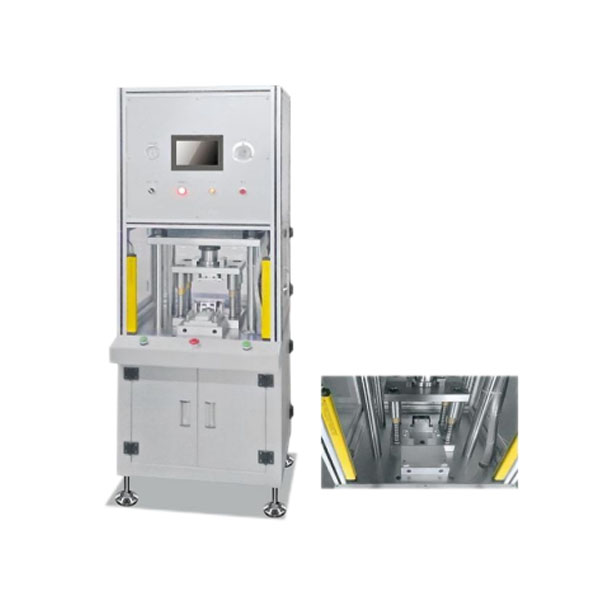

The Tab Riveting & Forming Machine is designed for riveting tabs to lead terminals on prismatic cells and supercapacitors, ensuring secure and reliable electrical connections.
· Utilizes precision guide pillars and bushings to maintain perfect parallelism between upper and lower dies.
· Equipped with a positioning tray for accurate placement of cells during operation.
· PLC-controlled system ensures reliable, stable operation with simplified control.
· Color touchscreen LCD provides intuitive operation and easy access to parameter settings.
· Constructed on a high-strength steel welded frame, polished and powder-coated for a smooth and durable finish.
· Includes safety light curtains and protective doors for secure operation.
|
Parameter |
Specification |
|
Maximum Die Stroke |
100 mm |
|
Pressure Hold Time |
0–20 s (adjustable) |
|
Production Capacity |
≥ 3 pcs/min |
|
Power Supply |
220 V / 50 Hz |
|
Power Consumption |
500 W |
|
Compressed Air Supply |
0.5–0.7 MPa |
|
Suitable Product Types |
Prismatic batteries and supercapacitors |
|
Note on Riveting |
Should not deform aluminum tabs during operation |
1 Standard exported package: Internal anticollision protection, external export wooden box packaging.
2 Shipping by express, by air, by sea according to customers' requirements to find the most suitable way.
3 Responsible for the damage during the shipping process, will change the damaged part for you for free.
DELIVERY TIME:15-20 days after confirming the order, detail delivery date should be decided according to
production season and order quantity.
