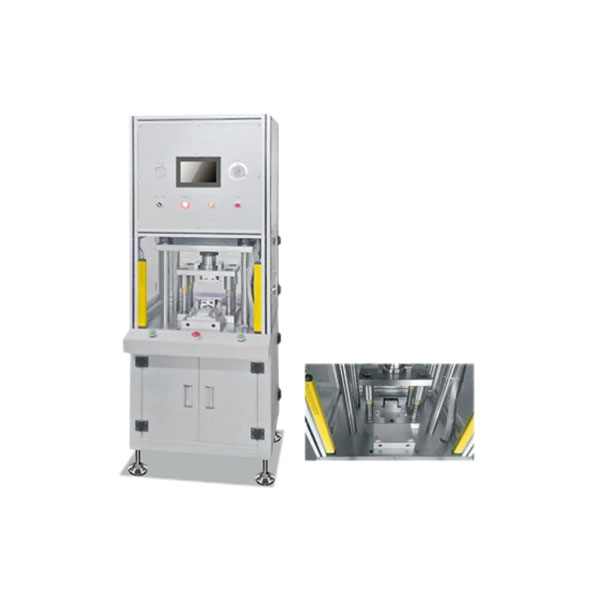

Louis@lithmachine.comHigh Accuracy Tab Hole Punching and Edge Trimming Machine for Supercapacitors and Prismatic Cells
The Tab Punching & Trimming Machine is designed for punching holes and trimming tabs on electrode tabs of prismatic cells and supercapacitors.
· Uses precision guide pillars and bushings to ensure zero-gap alignment between upper and lower blades, enhancing longevity.
· Equipped with high-speed-steel punch and shear blades, ensuring sharp, clean cuts.
· Includes a positioning tray for accurate cell placement.
· PLC-controlled for reliable, stable operation with easy usability.
· Color touchscreen LCD for intuitive operation and parameter monitoring.
· Solid steel-welded frame with smooth finish and powder-coated for an elegant look.
· Includes safety light curtain and protective doors to ensure operational safety.
|
Parameter |
Specification |
|
Tab Punch Hole Diameter |
Ø6 mm (±0.05 mm precision; customizable upon request) |
|
Production Capacity |
3 pcs/min |
|
Power Supply |
220 V / 50 Hz |
|
Power Consumption |
500 W |
|
Compressed Air Supply |
0.5 – 0.7 MPa |
|
Machine Dimensions (L × W × H) |
650 × 500 × 1600 mm |
|
Weight |
Approx. 800 kg |
|
Trim Distance from Punch Hole |
Approx. 6–10 mm |
|
Punch/Trim Position |
Adjustable |
1 Standard exported package: Internal anticollision protection, external export wooden box packaging.
2 Shipping by express, by air, by sea according to customers' requirements to find the most suitable way.
3 Responsible for the damage during the shipping process, will change the damaged part for you for free.
DELIVERY TIME:15-20 days after confirming the order, detail delivery date should be decided according to
production season and order quantity.
