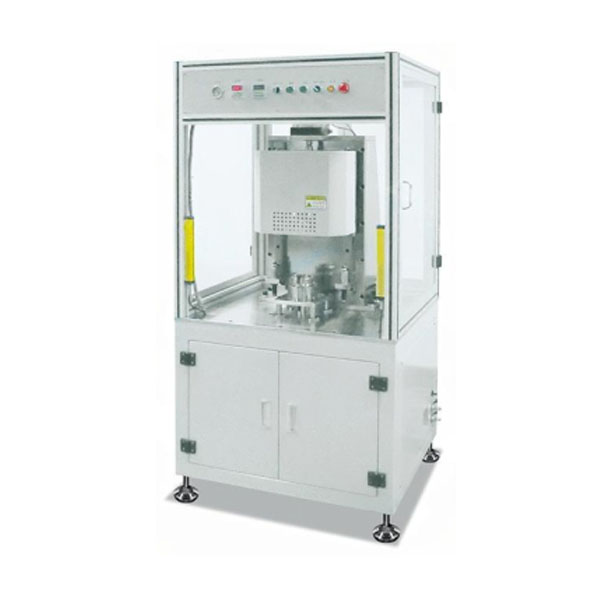

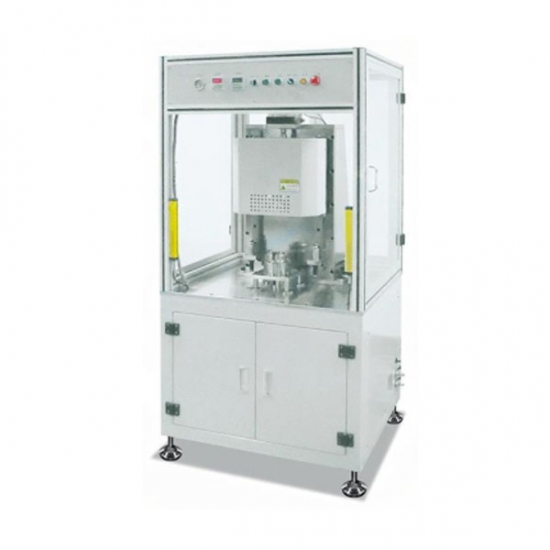

High-Precision Rotary Sealer for Cylindrical Battery and Supercapacitor
The Supercapacitor Rotary Sealing Machine is designed for automatic rotary sealing and curl-edging of cylindrical battery and supercapacitor casings.
· Clamp-sleeve fixation holds products securely, minimizing vibration and ensuring high concentricity for uniform rotary sealing.
· High-precision spindle guidance provides accurate and stable sealing dimensions.
· PLC control with HMI interface enables seamless automation.
· Equipped with safety light curtain and protective casing for safe operation.
· Compact, aesthetically designed geometry for ease of use and integration.
|
Parameter |
Specification |
|
Applicable Products |
Cylindrical batteries, supercapacitors (customizable per request) |
|
Air Supply |
0.5–0.7 MPa (adjustable) |
|
Power Supply |
220 V / 50 Hz |
|
Power Consumption |
1 kW |
|
Dimensions |
L 900 × W 900 × H 1700 mm |
|
Weight |
Approx. 600 kg |
PACKAGE:
1 Standard exported package: Internal anticollision protection, external export wooden box packaging.
2 Shipping by express, by air, by sea according to customers' requirements to find the most suitable way.
3 Responsible for the damage during the shipping process, will change the damaged part for you for free.
DELIVERY TIME:15-20 days after confirming the order, detail delivery date should be decided according to
production season and order quantity.
