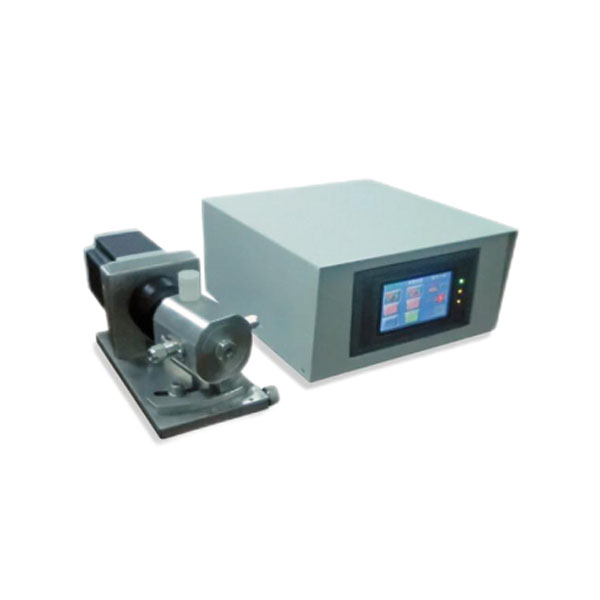

Louis@lithmachine.comStepper Motor Driven Ceramic Micro Dispensing Pump for Electrolytes and Chemical Fluids
The Electrolyte Filling Machine is designed for high precision dispensing of micro volume liquids across industries such as pharmaceuticals, electrolytes, acids, solvents, dairy, adhesives, and chemical reagents. It employs a valveless, reciprocating plunger mechanism driven by a stepper motor, enabling stable and accurate fluid metering via switching between inlet and outlet flow paths.
· Ideal for precision dispensing, filling, dosing, spraying, and marking applications.
· Valve-free design ensures extremely stable flow with accuracy better than ±0.3%.
· High-wear ceramic plunger and liner (ZrO₂, Al₂O₃) resist corrosion and high temperatures, delivering extended durability.
· All liquid-contact surfaces are chemically inert ceramic, preventing reactions.
· Plunger and liner are processed with nano-composite and gel injection molding, achieving self-sealing, self-lubricating precision—no seal or lubrication required.
· Acid/alkali resistant components suitable for harsh fluid environments.
· Constant displacement design allows flow control by adjusting stroke length or speed.
· No waste, no bubbles, no leaks or drips, ensuring clean output.
· Supports forward/reverse flow, variable capacities, and reversible pumping modes.
· No dynamic seals and minimal wear parts—easy maintenance.
· Equipped with imported PLC and touchscreen for easy parameter setting—reliable performance.
· Enables automatic stop after preset volume is met.
· Standard communication interfaces—can operate standalone or integrate with PLC/PC systems.
· Multiple programmable modes: priming, reverse, delay, standby flushing, batch counting.
· Compact, attractive design, user-friendly and safe to operate.
|
Feature |
Specification |
|
Pump Type |
Single-head, reciprocating positive-displacement ceramic plunger pump |
|
Plunger Material |
ZrO₂, Al₂O₃ ceramic |
|
Plunger Properties |
Corrosion-resistant, wear-resistant, high hardness, low friction |
|
Plunger Pair Precision |
2 µm |
|
Drive Motor |
Imported servo or stepper motor |
|
Speed Range |
1–1,200 rpm, reversible |
|
Control Mode |
Pulse-controlled |
|
User Interface |
4.3″ touchscreen via Rencon controller |
|
PLC |
Panasonic |
|
Recipe Storage |
Permanent memory up to 100 formula sets |
|
Stroke Volume Range |
0–10,000 µL per stroke |
|
Total Volume Formula |
Q(total) = Q(stroke) × N(strokes) |
Pouch Cell Process: Tube Furnace/ Muffle Furnace→ Vacuum Mixing→ Electrode Coating→ Roll press→ Electrode Cutting→ Vacuum Drying→ Cases Forming→ Top&Side Sealing→ Electrolyte Filling→ Vacuum Sealing→ Battery Analyzer
For the pouch cell assembly, we also recommend you the following items:
PACKAGE:
1 Standard exported package: Internal anticollision protection, external export wooden box packaging.
2 Shipping by express, by air, by sea according to customers' requirements to find the most suitable way.
3 Responsible for the damage during the shipping process, will change the damaged part for you for free.
DELIVERY TIME:15-20 days after confirming the order, detail delivery date should be decided according to
production season and order quantity.
