ItemNo :
LITH-SS-casesMOQ :
1Port :
Xiamen PortCompliance:
CEWarranty:
2 years

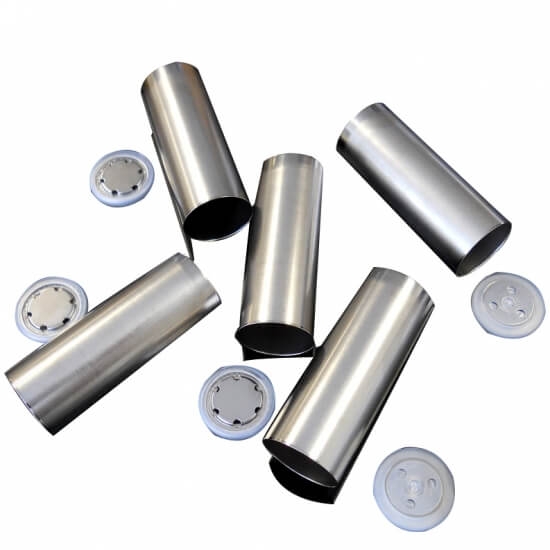

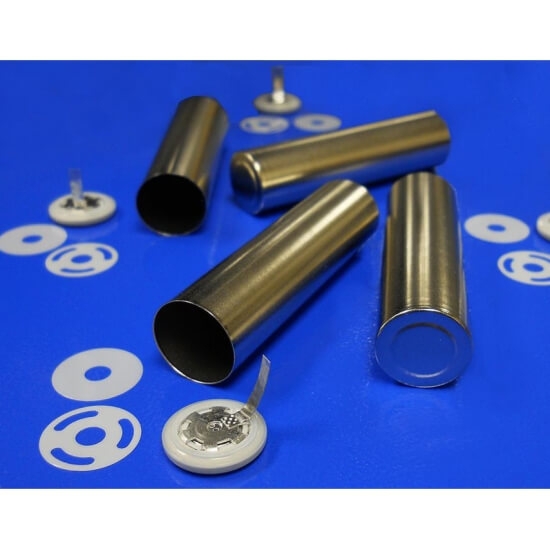

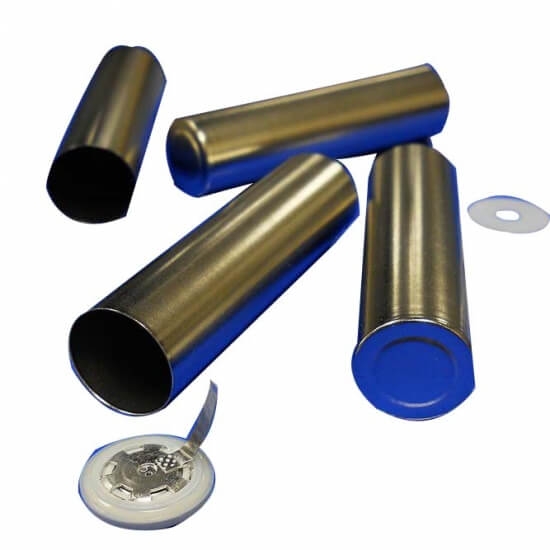

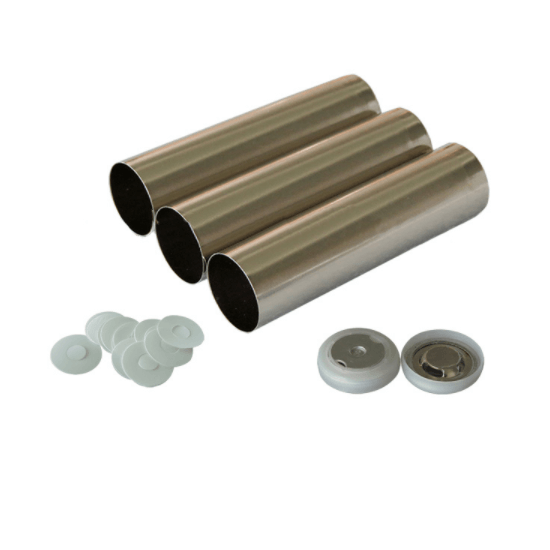

Stainless Steel 18650 26650 32650 21700 Cylindrical Battery Cases with Anti-Explosive Cap and Insulation O-ring
Features
Application: Used for cylindrical battery research, producing.
(100sets/package include cylinder cell case and cap)
Specifications
26650 cylinder cell cases:
|
Specifications |
|
|
Dimensions (Dia x Height) |
· Case: 26mm(OD) x 25.5mm(ID) x 68mm(H)
· Top Cap: 25.5mm(D) x 5mm(H) |
|
Materials |
· case and cap made of Nicke plated A3 steel and seal O-ring made of nylon |
|
Weight |
· 18.75 g/pcs |
|
Note |
· Safety valve's open pressure: 2.8MPa (the cap valve will open to release interior high pressure if over 2.8MPa to ensure no explosion from the can) |
18650 cylinder cell cases:
|
Specifications |
|
|
Cap |
Cap with Built-in PTC Thermistor |
|
Dimensions (Dia x Height) |
· Case: 18mm(OD) x 17.5mm(ID) x 67mm(H) · Top Cap: 17.5mm(D) x 4.05mm(H) · Top Insulator: 12.5mm(D) x 0.19mm(H) · Bottom Insulator: 12.5mm(D) x 0.19mm(H) |
|
Materials |
· case and cap made of Nicke plated A3 steel and seal O-ring made of nylon |
|
Weight |
9.50 g/pcs |
|
Note |
Safety valve's open pressure: 2.5MPa (the cap valve will open to release interior high pressure if over 2.5MPa to ensure no explosion from the can) |
32650 cylinder cell cases:
|
Specifications |
|
|
Dimensions (Dia x Height) |
· Case: 32mm(OD) x 31.5mm(ID) x 68mm(H) · Top Cap: 31.5mm(D) x 5.3mm(H) |
|
Materials |
· case and cap made of Nicke plated A3 steel and seal O-ring made of nylon |
|
Weight |
· 28.85g/pcs |
|
Note |
· Min. order: 60 pcs per package |
(We can provide other cylindrical cases according to your requirment.)
PACKAGE:
1 Standard exported package: Internal anticollision protection, external export wooden box packaging.
2 Shipping by express, by air, by sea according to customers' requirements to find the most suitable way.
3 Responsible for the damage during the shipping process, will change the damaged part for you for free.
DELIVERY TIME:15-20 days after confirming the order, detail delivery date should be decided according to
production season and order quantity.
