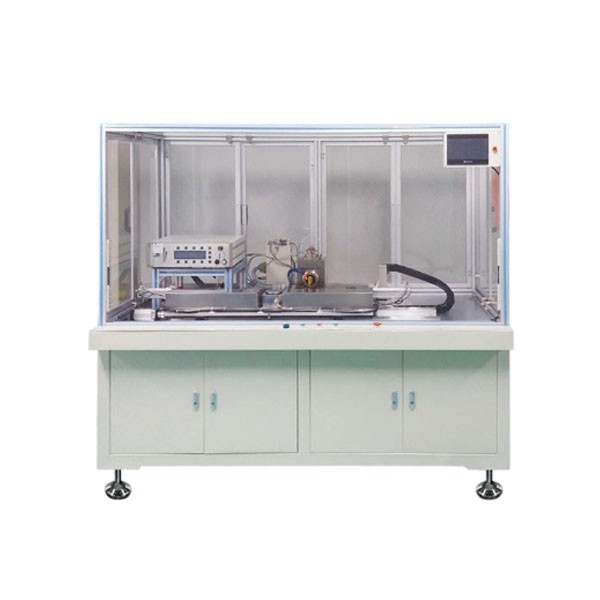

Louis@lithmachine.comUltrasonic Welder for Aluminum Case Supercapacitors and Cylindrical Cells
The Automatic Aluminum Case Ultrasonic Welding Machine is designed for ultrasonic multi-point welding of positive current collectors to the cylindrical aluminum shell in both cylindrical battery and supercapacitor applications.
· Automatic ultrasonic welding tailored for cylindrical aluminum foil and cell assemblies.
· Equipped with an imported ultrasonic generator, integrated with a programmable motion control system and user-friendly touchscreen HMI.
· Upgraded into a fully automatic welding platform with safety enclosures. Loading/unloading remains manual, while the system enables multi-point, multi-angle welding.
· Offers both automatic operation and manual mode for flexible production needs.
Parameter
Specification
Applicable Products
Cylindrical batteries, supercapacitors (customizable upon request)
Air Supply
0.4 – 0.7 MPa
Power Supply
AC 220 V / 50 Hz
Machine Footprint
1,800 mm × 1,000 mm × 1,700 mm (L × W × H)
Total Weight
Approx. 550 kg
Application
Key Features
Technical Specifications
1 Standard exported package: Internal anticollision protection, external export wooden box packaging.
2 Shipping by express, by air, by sea according to customers' requirements to find the most suitable way.
3 Responsible for the damage during the shipping process, will change the damaged part for you for free.
DELIVERY TIME:15-20 days after confirming the order, detail delivery date should be decided according to production season and order quantity.
