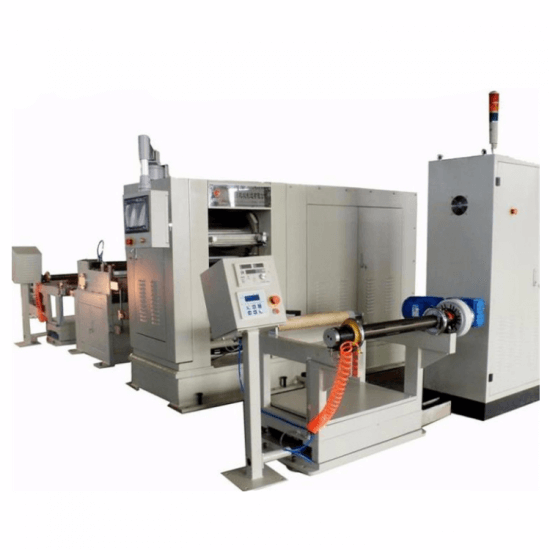

Heat Roller Press Machine For Li Ion Battery Production

Heat Roller Press Machine For Li Ion Battery Production

  • ItemNo :

    LITH-rolling1
  • MOQ :

    1
  • Lead Date :

    40 days
  • Compliance:

    CE
  • Warranty:

    2 years
  • Delivery Time:

    30 days
  • Email :

    [email protected]
  • Product Details

Heat Roller Press Machine For Li Ion Battery Production



Characteristics of equipment

LITH-rolling1 adapt to continuous rolling process for all kinds of lithium battery anode and cathode.

1.   Rolling speed: 2~12r/pm, CVT adjustable.

2.   Roller material: 9 Cr2Mo, Roller surface hardness: HRC 65~68

3.   Gap adjustment method: Servo motor drive the middle wedge to adjust, mechanical self-locking.

4.   Roller gap adjustment range: 0~2mm

5.   Roller gap adjustment accuracy:1μm

6.   Thickness uniformity of pole sheet after rolling: ≤±2μm. Maximum rolling form:3000 KN


 Specifications of roller:

Item Type

RM500

RM600

RM800

Roller size

500*500mm

600*600mm

800*800mm

Pole sheet width

200~500mm

200~550mm

300~750mm

Output speed

2~11rpm

2~10rpm

3~12rpm

Roll straightness speed

4~17m/min

4~19m/min

6~30m/min

Roller surface roughness

Ra≤0.2

Ra≤0.2

Ra≤0.2

Roll cylindrical degree

≤2.0μm

≤2.0μm

≤2.0μm

Roll thickness accuracy

±2.0μm

±2.0μm

±2.0μm

Roll pressure range

100~300t

100~300t

100~300t

Roll gap adjustment range

0~2.0mm

0~2.0mm

0~2.0mm

Roll gap adjustment accuracy

1μm

1μm

1μm

Tension adjustment range

2.2~20kg

2.2~20kg

2.2~20kg

Orderly winding error

±0.5mm

±0.5mm

±0.5mm

Retractable roll diameter

Max:Ø550mm

Max:Ø550mm

Max:Ø550mm

Air pressure

0.5MPA above

0.5MPA above

0.5MPA above

Power

15KW

18KW

35KW

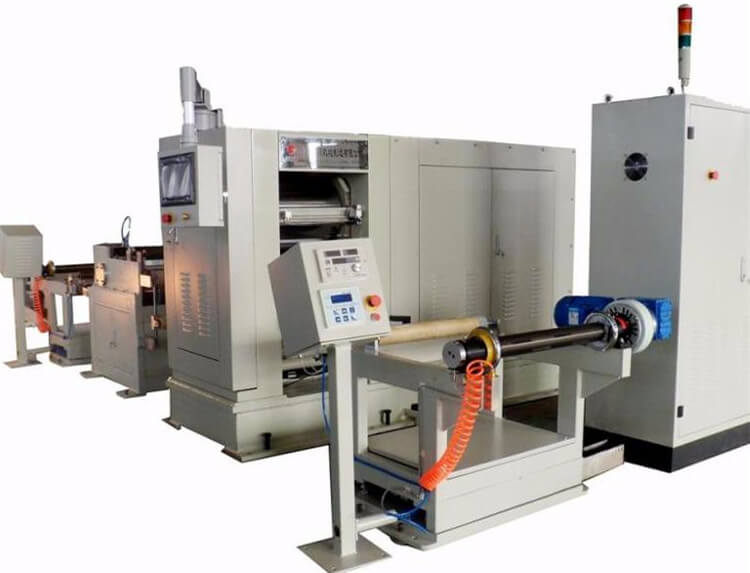

Roller Press Machine










PACKAGE:

  1 Standard exported package: Internal anticollision protection, external export wooden box packaging.

  2 Shipping by express, by air, by sea according to customers' requirements to find the most suitable way.

  3 Responsible for the damage during the shipping process, will change the damaged part for you for free.



DELIVERY TIME:15-20 days after confirming the order, detail delivery date should be decided according to

production season and order quantity.
