Louis@lithmachine.comCylindrical Cell Automatic Grooving and Sealing Equipment

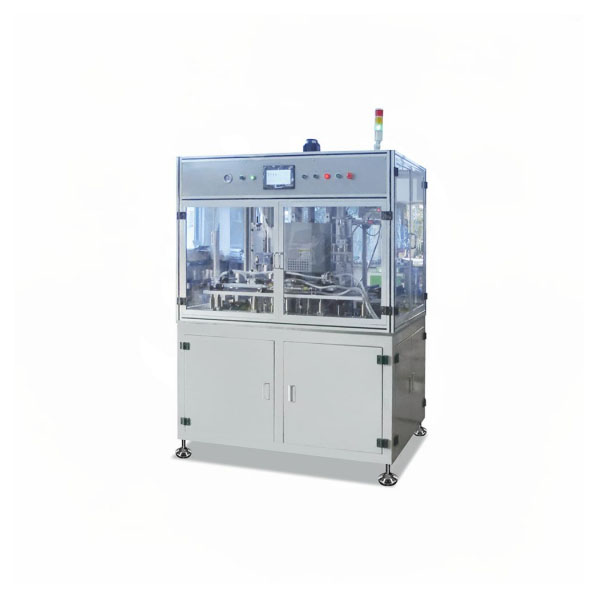

The LITH-GCFK60M is a fully automatic cylindrical battery assembly production line designed for grooving, sealing, and testing processes in cylindrical battery and supercapacitor manufacturing. This patented system integrates high-precision automation to improve production efficiency and consistency, making it ideal for mass production environments.
· Programmable operation modes: Allows for individual operation (grooving, sealing, testing) or full automatic cycle, providing flexibility and ease of use.
· High-precision linear guide rails ensure accurate grooving and sealing, with stable and consistent dimensions.
· Automatic robotic sorting system places products onto either the pass or fail conveyor, ensuring accurate classification.
· Servo-driven grooving mechanism, enabling precise control over insertion distance and speed.
· PLC-controlled system with HMI, allowing for intuitive automation and monitoring.
· Enclosed smart safety guard, providing secure and reliable operation.
· Modern geometric design, with refined appearance and user-friendly layout.
|
Parameter |
Specification |
|
Applicable Products |
Cylindrical batteries, supercapacitors (customizable) |
|
Internal Resistance Tester Range |
0Ω–2MΩ (Accuracy: 1mΩ) |
|
Height Detection Range |
0–12mm (Accuracy: 0.001mm) |
|
Compressed Air Supply |
0.5–0.7MPa (adjustable) |
|
Power Supply |
AC220V / 50Hz |
|
Power Consumption |
3KW |
|
Machine Dimensions |
L1500mm × W1000mm × H1800mm |
|
Machine Weight |
1500kg |
PACKAGE:
1 Standard exported package: Internal anticollision protection, external export wooden box packaging.
2 Shipping by express, by air, by sea according to customers' requirements to find the most suitable way.
3 Responsible for the damage during the shipping process, will change the damaged part for you for free.
DELIVERY TIME:15-20 days after confirming the order, detail delivery date should be decided according to
production season and order quantity.
