Crimping Machine For Cylindrical Cell Production

ItemNo :
LITH-crimper004
MOQ :
1
Compliance:
CE
Warranty:
2 years
Delivery Time:
5 days

Email :

Louis@lithmachine.com

Whatsapp :

+86 18659217588

Wechat :

18659217588

Contact Now

Product Details

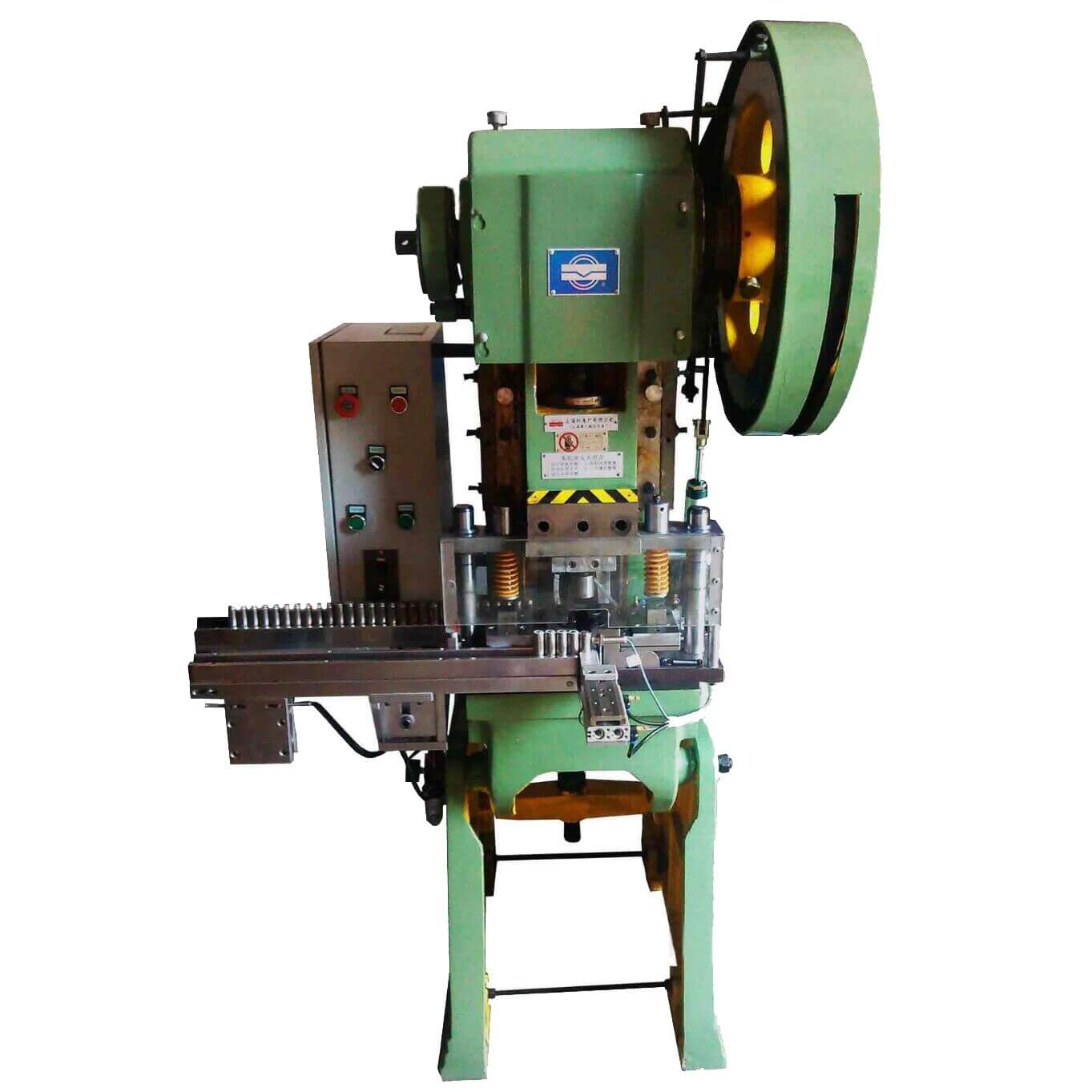

Crimping Machine For Cylindrical Cell Production

It is an auto crimper designed for sealing the cylindrical battery cases. It provides a continues workflow for case batch loading - crimping - case unloading without dedicated labor.

Advanced Features:

Efficient batch loading/unloading mechanism with case feeding conveyor

·        Dedicated Four-step crimping process (1st & 2nd trials for pre-deformation, 3rd trial for complete sealing and 4th trial for case consolidation) ensures the most stable & consistent sealing quality

·        Crimping speed and pressure is adjustable

·        User-friendly human-machine interface with PLC touch screen control

·        Floor-Stand enclosure with transparent front & side openable windows allow clear process monitoring and adjustment

Specifications:

Working Voltage

110/220V AC, 50/60Hz, three Phase

Max. Power Consumption

4KW

Driving Force

Penumatic, 0.5 - 0.8 MPa compression gas is required

Compatibility

Standard crimping capability for 18650 case
Note: CR123 / 18650 / 26650 / 32650 / AA is available upon request, please contact us for more details.

Control

User-friendly HMI with PLC touch screen control ensures easy program setup

Crimping Force

Upto 6kgf/cm²

Productivity

·         30 pieces per minute

·         Material feeding conveyor is able to load upto 22 pcs per batch

Warranty

·         One year limited with lifetime support

·         Parts rusted without regular cleaning and maintenance are not covered

Product Dimensions

W1200mmD690mmH1765mm

Net Weight

800 lbs

Crimping Machine

PACKAGE:

1 Standard exported package: Internal anticollision protection, external export wooden box packaging.

2 Shipping by express, by air, by sea according to customers' requirements to find the most suitable way.

3 Responsible for the damage during the shipping process, will change the damaged part for you for free.

DELIVERY TIME:15-20 days after confirming the order, detail delivery date should be decided according to

production season and order quantity.

HotTags : Crimping Machine Crimper Cylindrical Cell Crimper

Working Voltage	110/220V AC, 50/60Hz, three Phase
Max. Power Consumption	4KW
Driving Force	Penumatic, 0.5 - 0.8 MPa compression gas is required
*Compatibility*	Standard crimping capability for 18650 case Note: CR123 / 18650 / 26650 / 32650 / AA is available upon request, please contact us for more details.
Control	User-friendly HMI with PLC touch screen control ensures easy program setup
Crimping Force	Upto 6kgf/cm²
Productivity	· 30 pieces per minute · Material feeding conveyor is able to load upto 22 pcs per batch
Warranty	· One year limited with lifetime support · Parts rusted without regular cleaning and maintenance are not covered
Product Dimensions	W1200mmD690mmH1765mm
Net Weight	800 lbs
