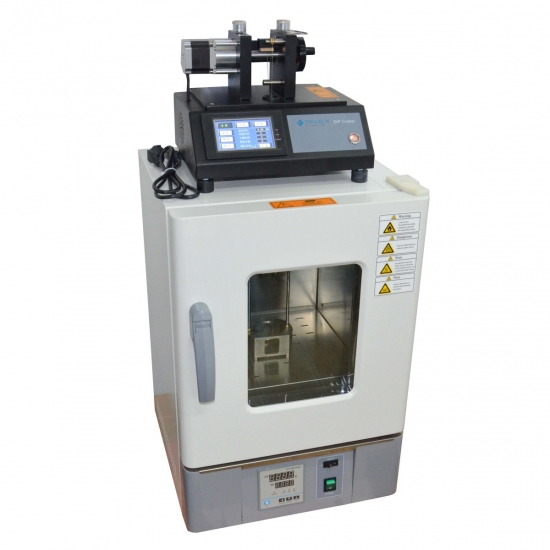

Micron-Level Constant Temperature Dip Coater With Hot Chamber
Product Description
This model adopts a PLC-programmed control system, utilizing a high-precision stepper motor to drive the lifting mechanism and lifting wires, ensuring smooth and precise vertical movement. By immersing and withdrawing samples vertically from the liquid-phase film material, a uniform film thickness is achieved on the sample surface. The system offers two operation modes: "Single Cycle" and "Full Cycle." Parameters such as lifting speed, immersion speed, dwell time in the liquid phase, drying time, and cycle count can be independently configured.

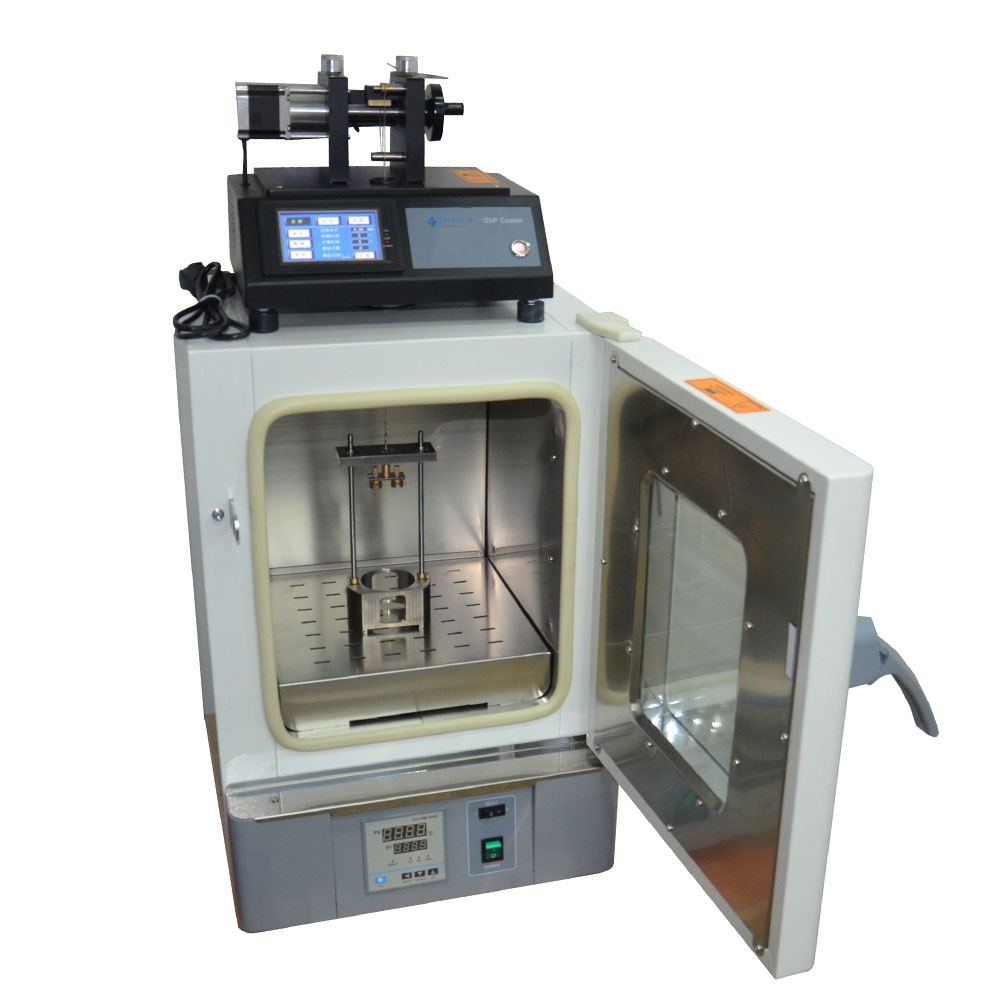

Equipped with a constant-temperature heating drying chamber, this programmable dip coater allows users to set the desired heating temperature based on process requirements. Compact, user-friendly, and portable, it is widely used in laboratories across universities, research institutes, and industrial enterprises.
Key Features
· 4.3-inch color touchscreen with an intuitive interface, suitable for beginners.
· Compact size and high cost-performance ratio, saving lab space.
· PLC-controlled high-precision stepper motor with suspended wire transmission for vibration reduction.
Parameter
Specification
Installation Conditions
Power Supply
AC220V, 50/60Hz, 10A standard socket (proper grounding required)
Operating Environment
Temperature: 25°C ±15°C, Humidity: 55%RH ±10%RH
Main Parameters
Lifting Unit Voltage
DC24V 3.75A (Standard adapter: AC100–240V)
Lifting Unit Power
50W
Type
Programmable—Constant Temperature (with heating chamber)
Drive Motor
High-precision stepper motor
Speed Range
1–500 µm/s
Dwell Time
1–999s
Drying Time
1–999s
Lifting Stroke
1–75mm
Lifting Cycles
1–20 times
Max Immersion Depth
≤60mm
Max Load Capacity
≤100g
Sample Substrate Size
75mm × 25mm × 2.5mm (holds 2 pieces)
Display & Control
4.3-inch color touchscreen
Heating Chamber Parameters
Working Voltage
AC220V 50/60Hz
Rated Current
3.6A
Heating Power
0.8KW
Temperature Range
RT (room temp) ~ +100°C
Temperature Control/Setting
Dual-digit PID / 4-button touch setting
Timer Range
0–9999 min/h
Internal Dimensions (Capacity)
310mm × 310mm × 310mm (30L)
External Dimensions
428mm × 500mm × 723mm
Overall Product Dimensions
428mm × 500mm × 995mm
Weight
≈50kg (including heating chamber)
1. Standard power adapter:
1. Input: AC100–240V 50/60Hz
2. Output: DC24V 3.75A (Actual supply per device label)
2. Optional: AC110V 50/60Hz heating chamber.
No.
Accessory
Qty
1
Coating Clamp
1 set
2
Material Cup
1 pc
3
Lifting Wires
3 pcs
The LITH-06H Micron-Level Constant Temperature Dip Coater is a CE-certified product, designed specifically for dip-coating experiments in liquid-phase thin-film growth. It is a precision lifting device with micron-level accuracy, essential for scientific research institutions engaged in liquid-phase film deposition.
Technical Specifications
Notes
Standard Accessories
PACKAGE:
1 Standard exported package: Internal anticollision protection, external export wooden box packaging.
2 Shipping by express, by air, by sea according to customers' requirements to find the most suitable way.
3 Responsible for the damage during the shipping process, will change the damaged part for you for free.
DELIVERY TIME:15-20 days after confirming the order, detail delivery date should be decided according to
production season and order quantity.
