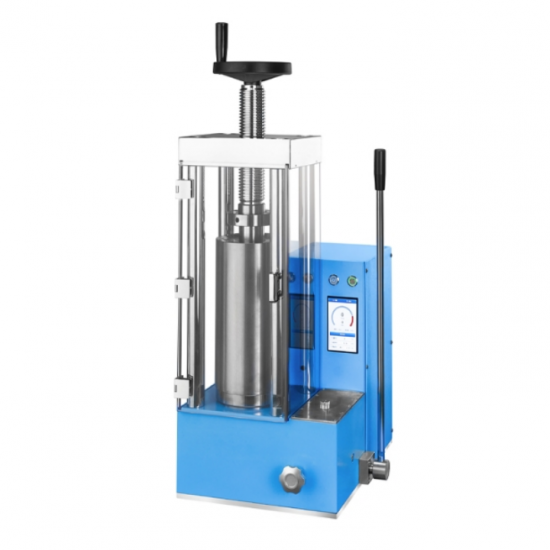

Lab 550W 40T Electric Manual Cold Isostatic Press with Maximum Piston Stroke 50mm

Product Categories

Contact Us

  • Contact Person : Louis Yang
  • Email : Louis@lithmachine.com
  • Address : No. 5 Nanshan Road, Huli District, Xiamen City, Fujian Province, China
Lab 550W 40T Electric Manual Cold Isostatic Press with Maximum Piston Stroke 50mm

Lab 550W 40T Electric Manual Cold Isostatic Press with Maximum Piston Stroke 50mm

  • ItemNo :

    LITH-PCD-40J
  • MOQ :

    1
  • Compliance:

  • Warranty:

    2years
  • Delivery Time:

    5 days
  • Email :

    Louis@lithmachine.com
  • Product Details

Lab 550W 40T Electric Manual Cold Isostatic Press with Maximum Piston Stroke 50mm




Mold diagram



Mold operation diagram

Operating interface



Parameter setting: Click Parameter setting to enter the Setting menu.

Pressure settings: The pressure applied can be set.

Time setting: Set pressure timing, when the holding time is up. The device will alert you that pressure can be relieved.

Sample size: Set the shape and size of the sample, the device will automatically calculate the pressure of the sample according to the size you set, so as not to cause overpressure.

Start button: Click the start button and the device starts to operate according to the set parameters. When the pressure reaches the set value, the pressure will automatically stop, and the automatic pressure will start. The "Start" button becomes "Stop"

Stop button: Click the stop button, the device exits the pressure retaining program. Then open the oil stem to remove the pressure.

Operation procedure






Technical parameter


Instrument type

PCD-40J

Pressure range

0-40T(0-30Mpa)

Piston diameter

Chrome plated cylinder Φ130mm(d)

Overall structure of the main body

The equipment has no sealed connection, reducing oil leakage points

Pressure gauge

The digital display shows 0.0-40.0MPa

Maximum piston stroke

50mm(T)

Pressurization method

Electric pressurization/manual pressurization

Pressure replenishment method

Automatic pressure replenishment/manual slow pressure increase

Protective cover

Organic glass

Ambient temperature

10 ℃-40 ℃

Isostatic pressure

Φ40 x150mm(MXN) 0-300MPa

Φ30 x150mm(MXN) 0-500MPa

External dimensions

355X450X710mm(LXWXH)

Power supply

550W(220V/110 can be customized)

Equipment weight

150Kg

Powder tablet press size diagram









PACKAGE:

  1 Standard exported package: Internal anticollision protection, external export wooden box packaging.

  2 Shipping by express, by air, by sea according to customers' requirements to find the most suitable way.

  3 Responsible for the damage during the shipping process, will change the damaged part for you for free.



DELIVERY TIME:15-20 days after confirming the order, detail delivery date should be decided according to

production season and order quantity.
